Location of Connector Joining Wire Harness and Wire Harness Location of Ground Points: Overview

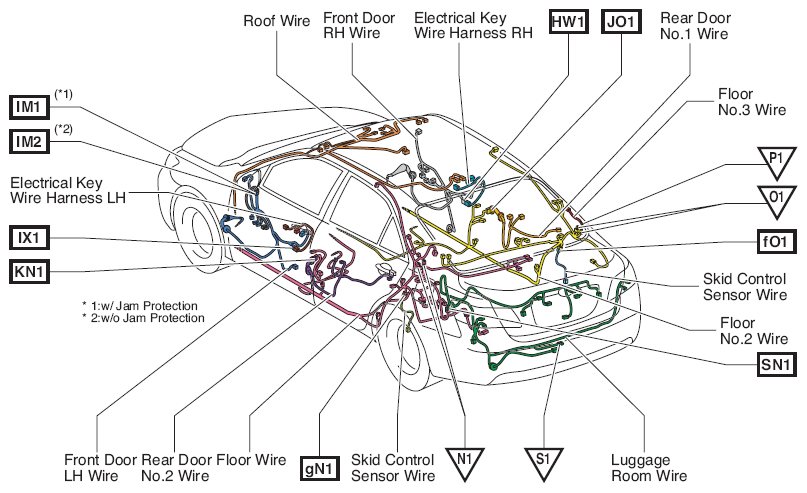

Fig 1: Locating Wire Harnesses And Ground Points

G07603364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
