Location of Connector Joining Wire Harness and Wire Harness Location of Ground Points: [2AZ-FE]

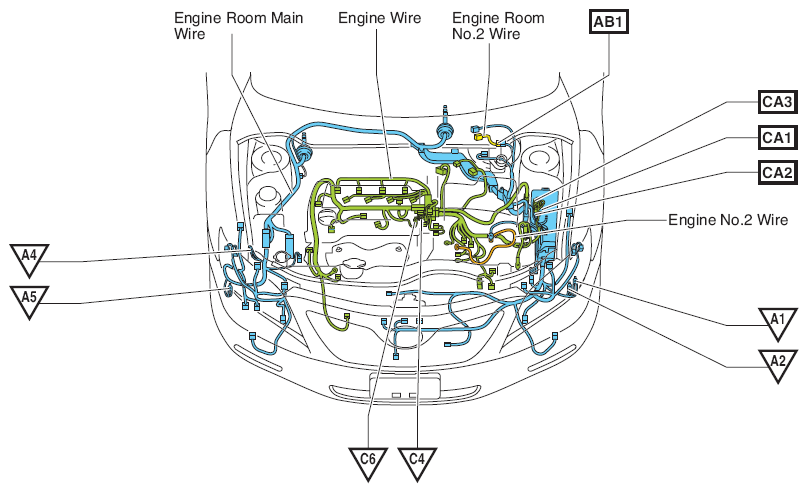

Fig 1: Locating Wire Harnesses And Ground Points (2AZ-FE)
G07603361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
