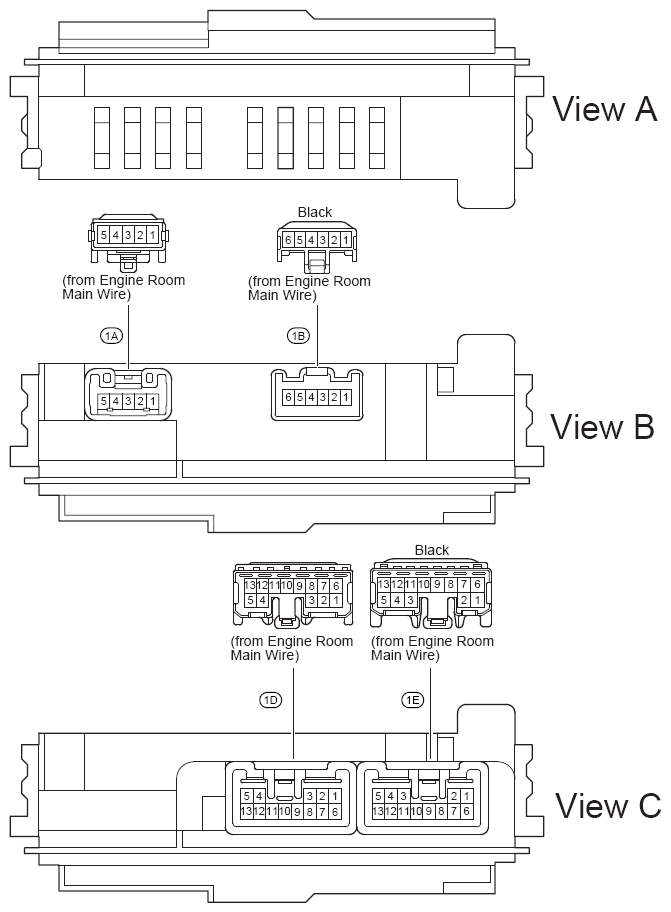

Engine Room Relay Block And Engine Room Junction Block

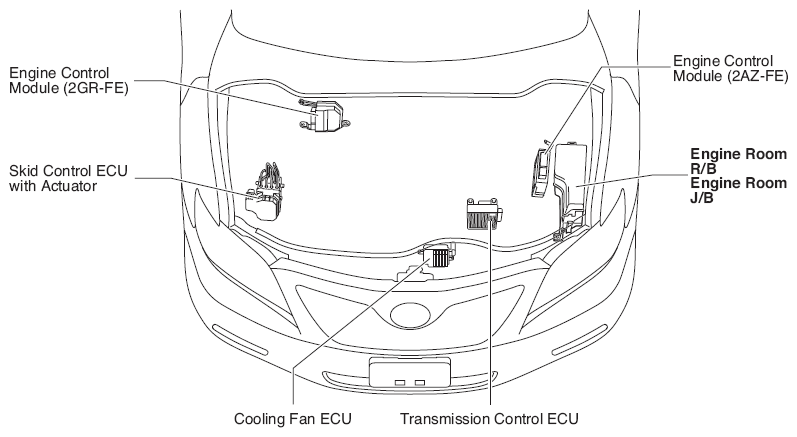

Engine Compartment Left (See Figure)

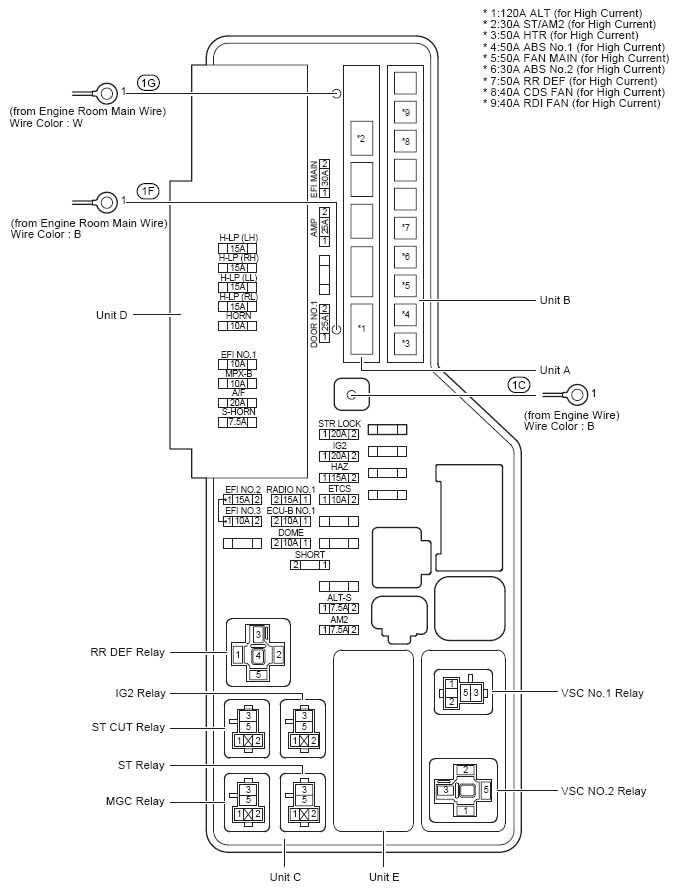

ENGINE ROOM R/B AND J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| MGC Relay |
| ST Relay |
| ST CUT Relay |
| IG2 Relay |
| RR DEF Relay |
| VSC No.1 Relay |
| VSC No.2 Relay |
Engine Room R/B And J/B Fuse & Relay Identification Legend
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 7.5A | AM2 | Electronically Controlled Transmission and A/T Indicator (2GR-FE) |
| Engine Control (2GR-FE) | ||
| Ignition (2GR-FE) | ||
| Smart Key System | ||
| 7.5A | S-HORN | Smart Key System |
| Theft Deterrent | ||
| 10A | DOME | ABS (w/ VSC), TRAC and VSC (TMC Made) |
| ABS (w/ VSC), TRAC and VSC (TMMK Made) | ||
| ABS (w/o VSC) | ||
| Air Conditioning | ||
| Audio System (6 Speaker) | ||
| Audio System (8 Speaker w/o Navigation System) | ||
| Clock | ||
| Combination Meter | ||
| Cooling Fan (2GR-FE) | ||
| Cruise Control (2AZ-FE) | ||
| Cruise Control (2GR-FE) | ||
| Door Lock Control and Luggage Compartment Door Opener | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (2GR-FE) | ||
| Fog Light | ||
| Garage Door Opener | ||
| Headlight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) and Seat Belt Warning | ||
| Navigation System and Audio System (8 Speaker w/ Navigation System) | ||
| Radiator Fan and Condenser Fan (2AZ-FE) | ||
| Sliding Roof | ||
| Smart Key System | ||
| SRS | ||
| Taillight and Illumination | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 10A | ECU-B NO.1 | ABS (w/ VSC), TRAC and VSC (TMC Made) |
| ABS (w/ VSC), TRAC and VSC (TMMK Made) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Door Lock Control and Luggage Compartment Door Opener | ||
| Fog Light | ||
| Headlight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) and Seat Belt Warning | ||
| Power Window | ||
| Sliding Roof | ||
| SRS | ||
| Taillight and Illumination | ||
| Theft Deterrent | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 10A | EFI NO.1 | Cruise Control (2AZ-FE) |
| Cruise Control (2GR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (2GR-FE) | ||
| Engine Immobiliser System (w/o Smart Key System) | ||
| Smart Key System | ||
| 10A | EFI NO.3 | Electronically Controlled Transmission and A/T Indicator (2AZ-FE) |
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (2GR-FE) | ||
| 10A | ETCS | Cruise Control (2AZ-FE) |
| Cruise Control (2GR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (2GR-FE) | ||
| 10A | HORN | Horn |
| Smart Key System | ||
| Theft Deterrent | ||
| 10A | MPX-B | ABS (w/ VSC), TRAC and VSC (TMC Made) |
| ABS (w/ VSC), TRAC and VSC (TMMK Made) | ||
| ABS (w/o VSC) | ||
| Air Conditioning | ||
| Audio System (6 Speaker) | ||
| Audio System (8 Speaker w/o Navigation System) | ||
| Combination Meter | ||
| Cooling Fan (2GR-FE) | ||
| Cruise Control (2AZ-FE) | ||
| Cruise Control (2GR-FE) | ||
| Door Lock Control and Luggage Compartment Door Opener | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (2GR-FE) | ||
| Fog Light | ||
| Headlight | ||
| Key Reminder (w/o Smart Key System) and Seat Belt Warning | ||
| Navigation System and Audio System (8 Speaker w/ Navigation System) | ||
| Radiator Fan and Condenser Fan (2AZ-FE) | ||
| Sliding Roof | ||
| Smart Key System | ||
| SRS | ||
| Taillight and Illumination | ||
| Tire Pressure Warning System | ||
| 15A | EFI NO.2 | Cruise Control (2AZ-FE) |
| Cruise Control (2GR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (2GR-FE) | ||
| 15A | HAZ | Turn Signal and Hazard Warning Light |
| 15A | H-LP (LH) | Headlight |
| 15A | H-LP (LL) | Headlight |
| 15A | H-LP (RH) | Headlight |
| 15A | H-LP (RL) | Headlight |
| 15A | RADIO NO.1 | Audio System (6 Speaker) |
| Audio System (8 Speaker w/o Navigation System) | ||
| Navigation System and Audio System (8 Speaker w/ Navigation System) | ||
| 20A | A/F | Engine Control (2GR-FE) |
| 20A | IG2 | Combination Meter |
| Engine Control (2GR-FE) | ||
| Ignition (2GR-FE) | ||
| Smart Key System | ||
| 20A | STR LOCK | Smart Key System |
| 25A | AMP | Audio System (8 Speaker w/o Navigation System) |
| Navigation System and Audio System (8 Speaker w/ Navigation System) | ||
| 25A | DOOR NO.1 | Automatic Light Control and Light Auto Turn Off System |
| Door Lock Control and Luggage Compartment Door Opener | ||
| Fog Light | ||
| Headlight | ||
| Interior Light | ||
| Power Window | ||
| Sliding Roof | ||
| Smart Key System | ||
| Taillight and Illumination | ||
| Theft Deterrent | ||
| 30A | ABS No.2 | ABS (w/ VSC), TRAC and VSC (TMC Made) |
| ABS (w/ VSC), TRAC and VSC (TMMK Made) | ||
| ABS (w/o VSC) | ||
| 30A | EFI MAIN | Cruise Control (2AZ-FE) |
| Cruise Control (2GR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (2GR-FE) | ||
| 30A | S/ROOF | Sliding Roof |
| 30A | ST/AM2 | Engine Control (2GR-FE) |
| Ignition (2GR-FE) | ||
| Smart Key System | ||
| Starting (w/o Smart Key System) | ||
| 40A | CDS FAN | Radiator Fan and Condenser Fan (2AZ-FE) |
| 40A | RDI FAN | Radiator Fan and Condenser Fan (2AZ-FE) |
| 50A | ABS No.1 | ABS (w/ VSC), TRAC and VSC (TMC Made) |
| ABS (w/ VSC), TRAC and VSC (TMMK Made) | ||
| ABS (w/o VSC) | ||
| 50A | FAN MAIN | Cooling Fan (2GR-FE) |
| 50A | HTR | Air Conditioning |
| 50A | RR DEF | Rear Window Defogger and Mirror Heater |
| 120A | ALT | Automatic Light Control and Light Auto Turn Off System |
| Charging | ||
| Fog Light | ||
| Power Window | ||
| Starting (w/o Smart Key System) | ||
| Taillight and Illumination | ||
| Theft Deterrent | ||
ENGINE ROOM R/B AND J/B (UNIT E) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Fan No.2 Relay |
| Fan No.3 Relay |
| Fan No.1 Relay |
| Fan Main Relay |
