Junction Block No. 4
Junction Block No. 4
Instrument Panel Brace Center
(See
Figure
)

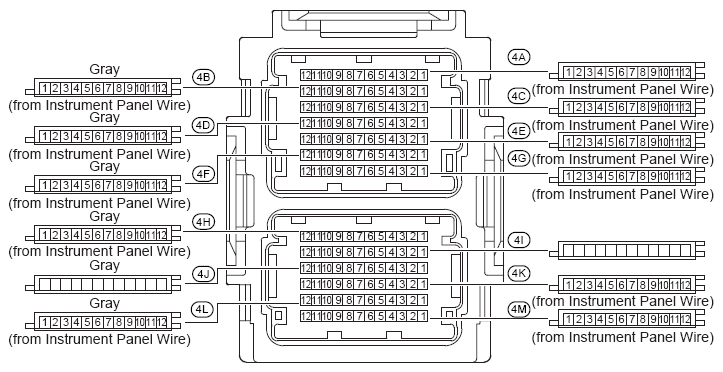

Fig 1: J/B No. 4 Connector Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
