Junction Block No. 3 Inner Circuit

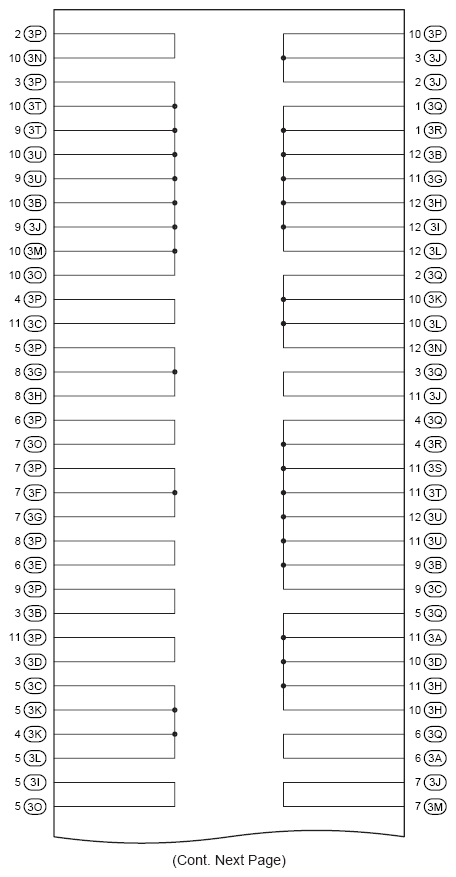

Fig 1: J/B No. 3 Inner Circuit Diagram (1 Of 4)
G07603334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

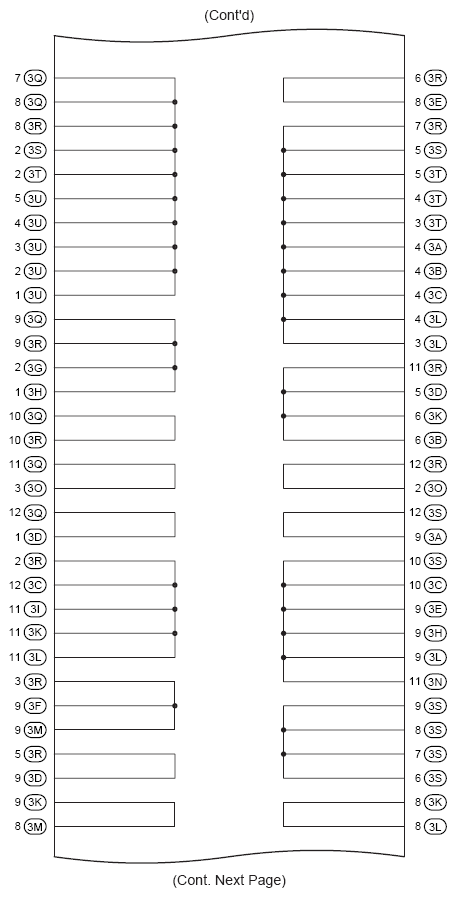

Fig 2: J/B No. 3 Inner Circuit Diagram (2 Of 4)
G07603335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

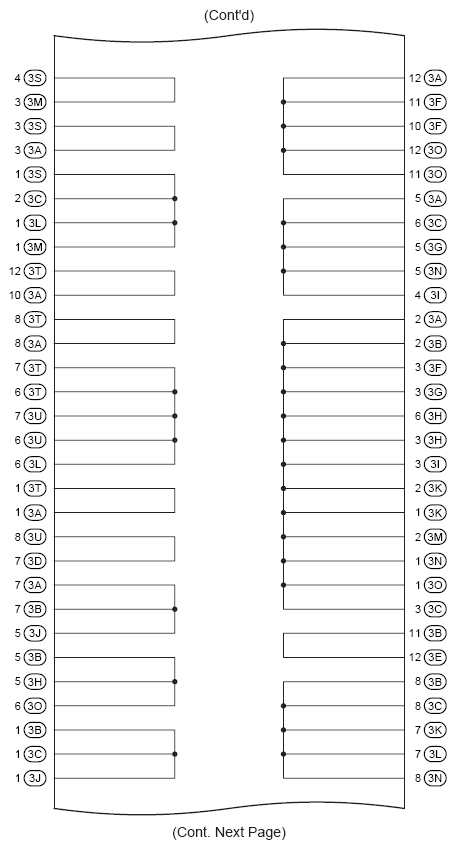

Fig 3: J/B No. 3 Inner Circuit Diagram (3 Of 4)
G07603336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

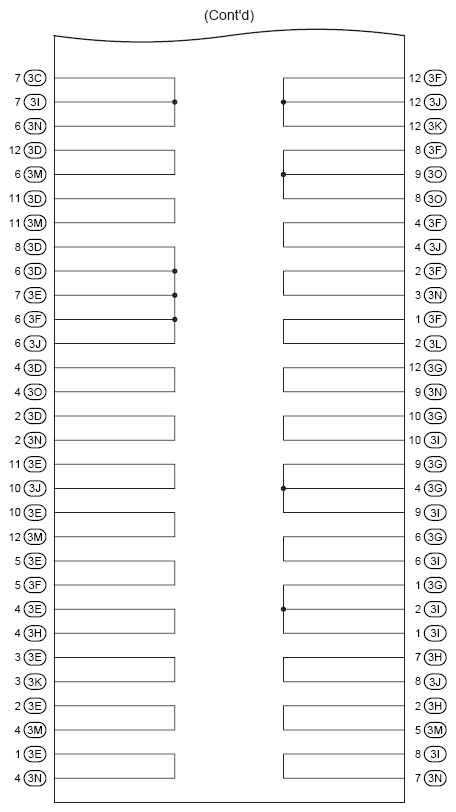

Fig 4: J/B No. 3 Inner Circuit Diagram (4 Of 4)
G07603337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
