TRAC (TMC Made), VSC (TMC Made)

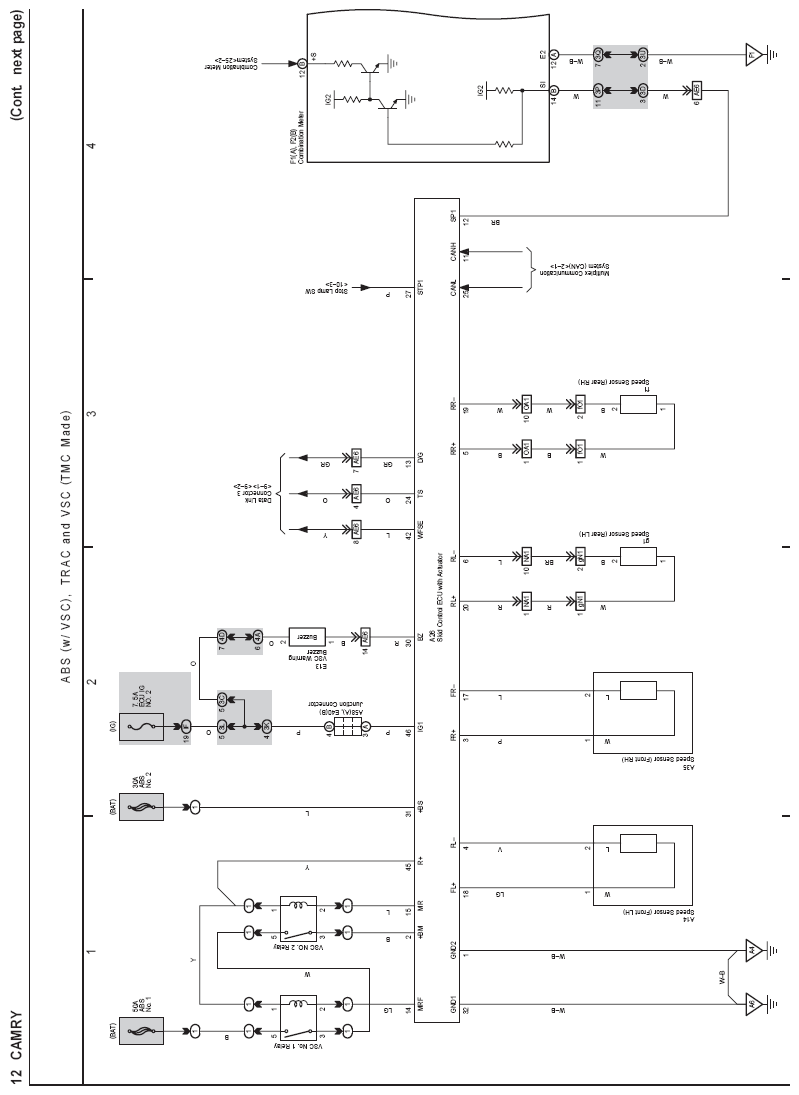

Fig 1: ABS (W/VSC), TRAC And VSC (TMC Mode) Electrical Wiring Diagram (1 Of 2)
G07603658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

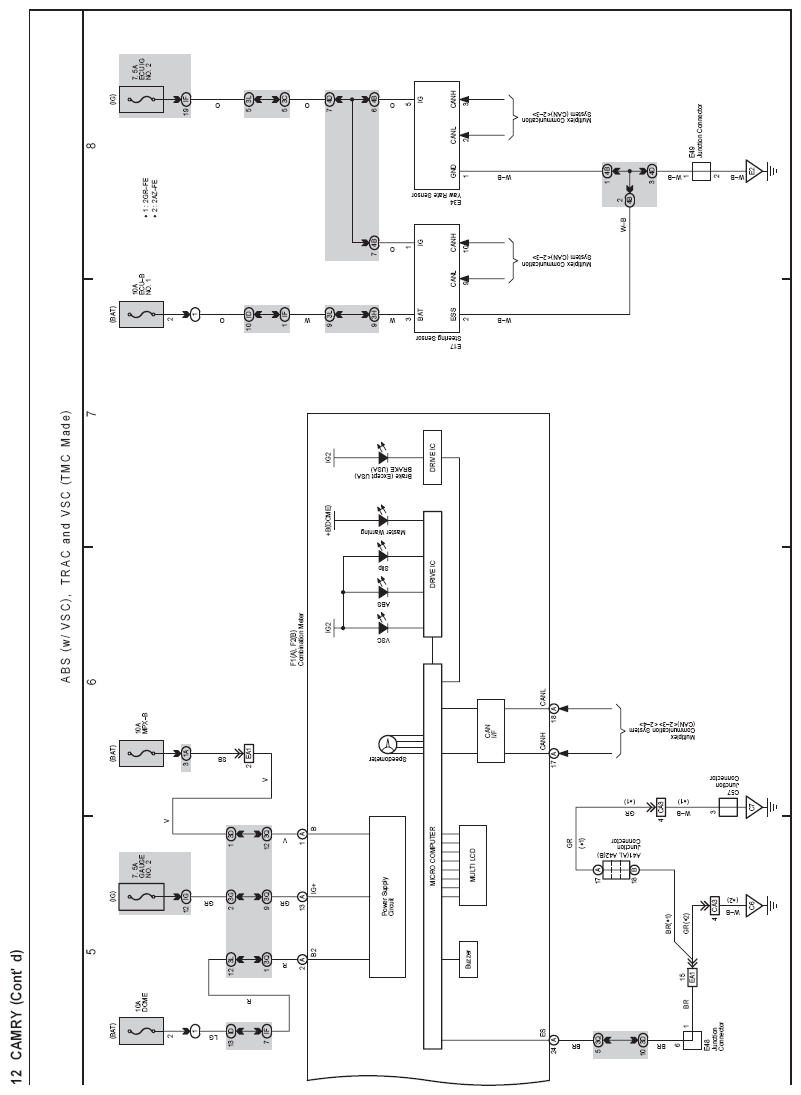

Fig 2: ABS (W/VSC), TRAC And VSC (TMC Mode) Electrical Wiring Diagram (2 Of 2)
G07603659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
