Overall Electrical Wiring Diagram
>>
Mirror Heater, Rear Window Defogger, Remote Control Mirror
Mirror Heater, Rear Window Defogger, Remote Control Mirror

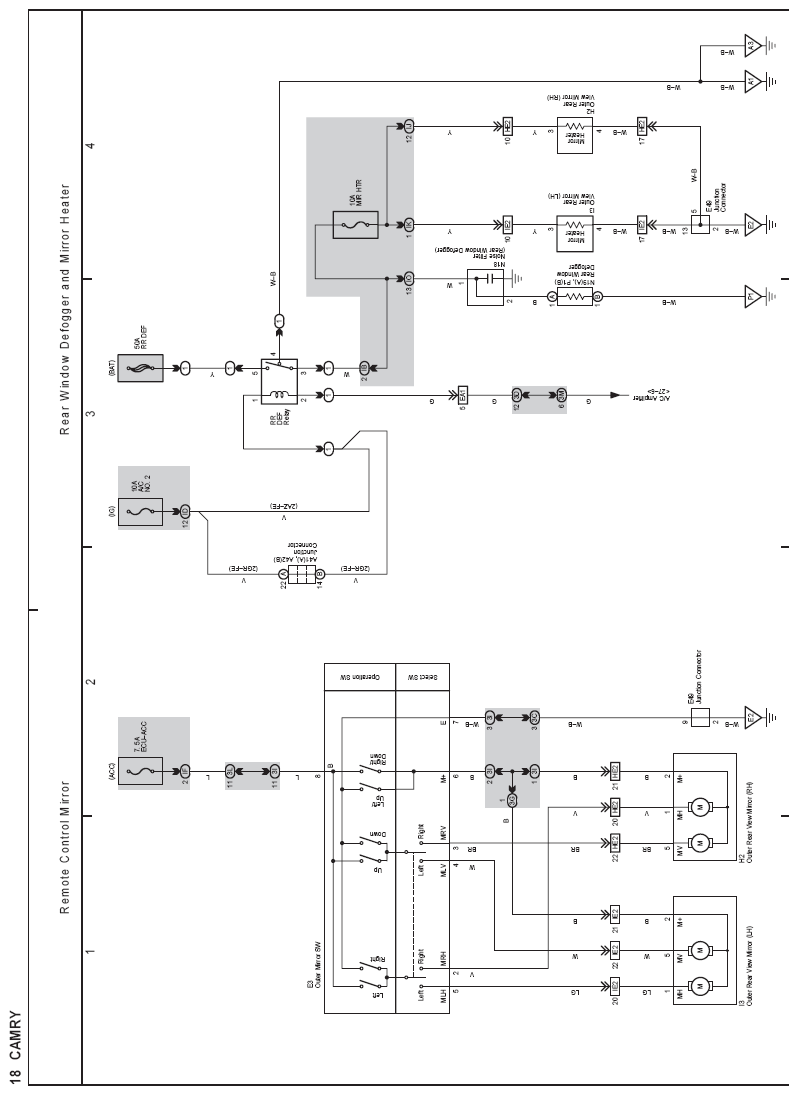

Fig 1: Rear Window Defogger And Mirror Heater Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
