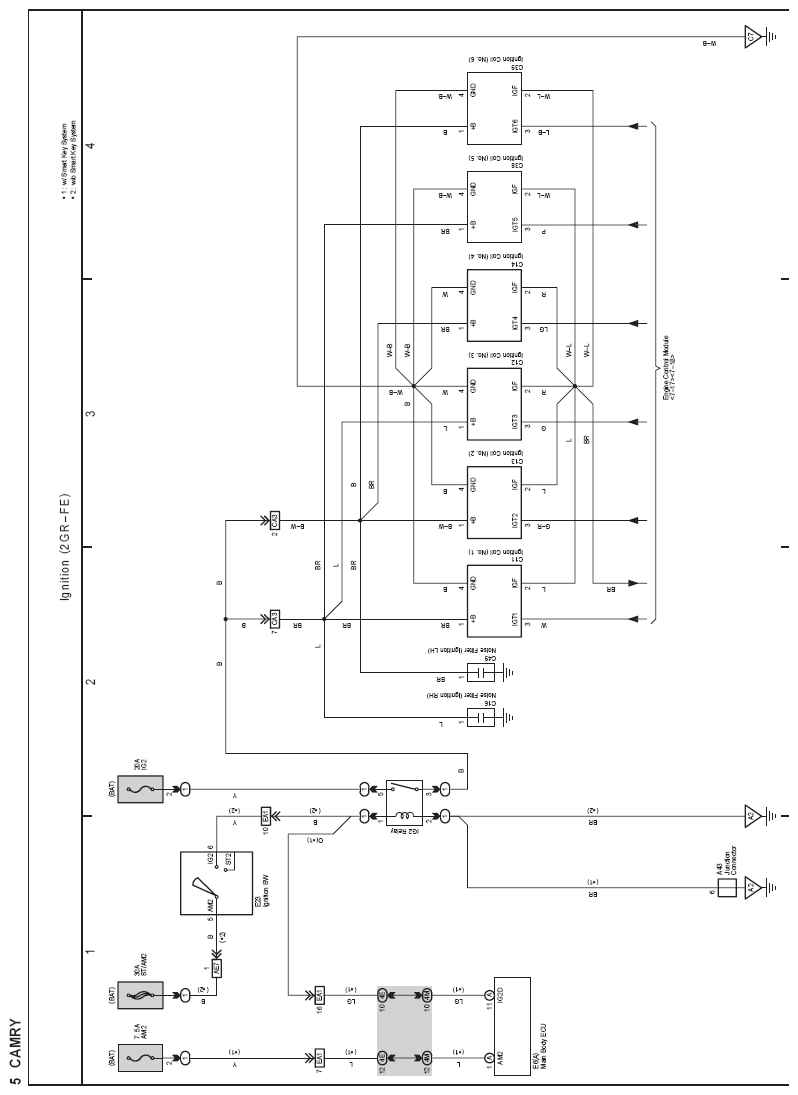

Home >> Toyota >> 2008 >> Camry Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Except Hybrid) >> Overall Electrical Wiring Diagram >> Ignition (2GR-FE)
