How To Read This Section

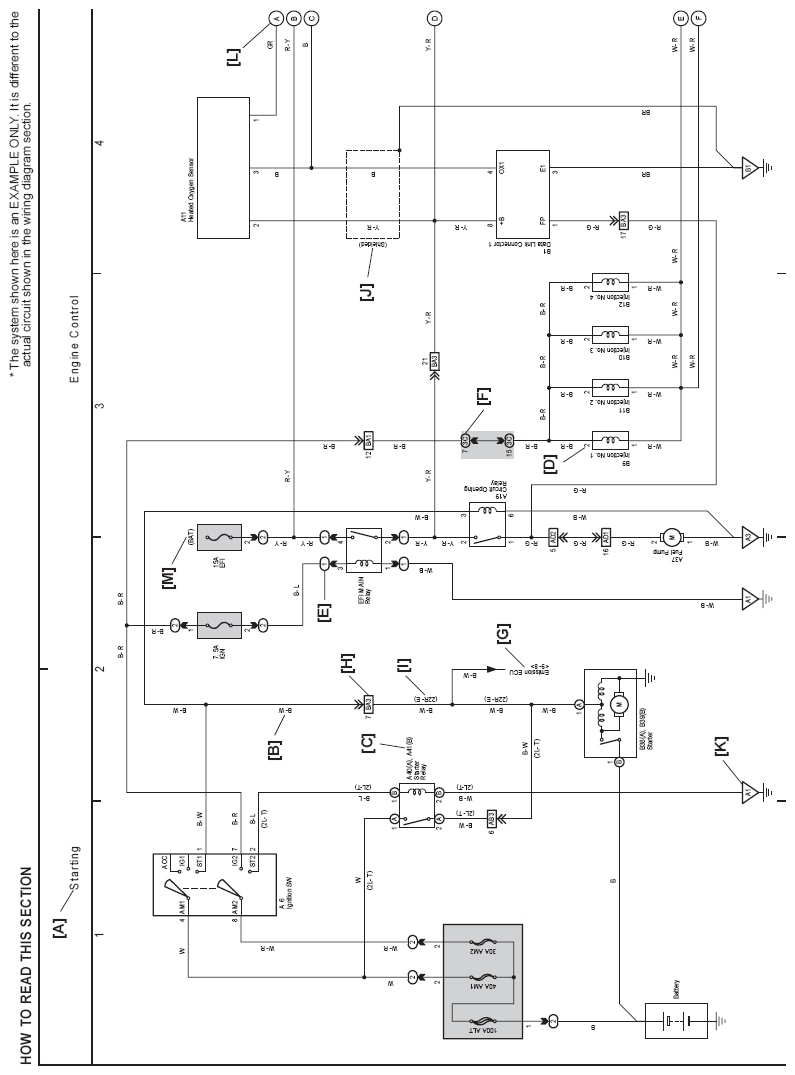

Fig 1: Engine Control Electrical Circuit Diagram (Example)
G07603619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

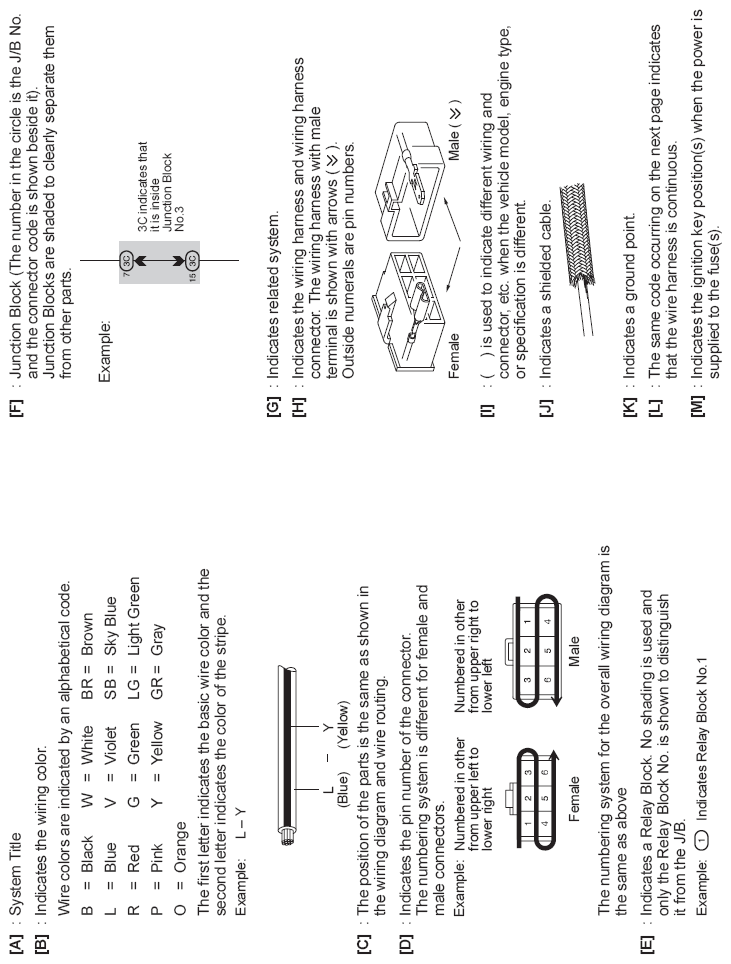

Fig 2: Engine Control Electrical Circuit Legend
G07603620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
