Cruise Control (2GR-FE), Electronically Controlled Transmission and A/T Indicator (2GR-FE), Engine Control (2GR-FE)

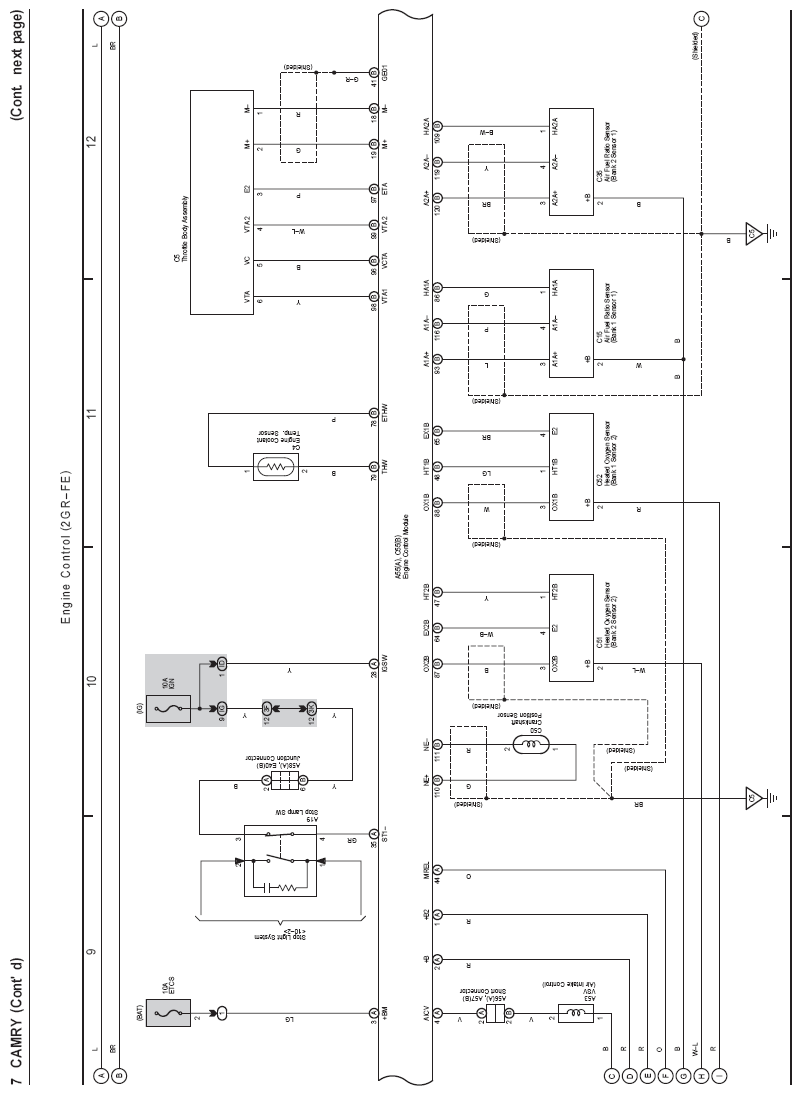

Fig 1: Engine Control (2Gr FE) Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

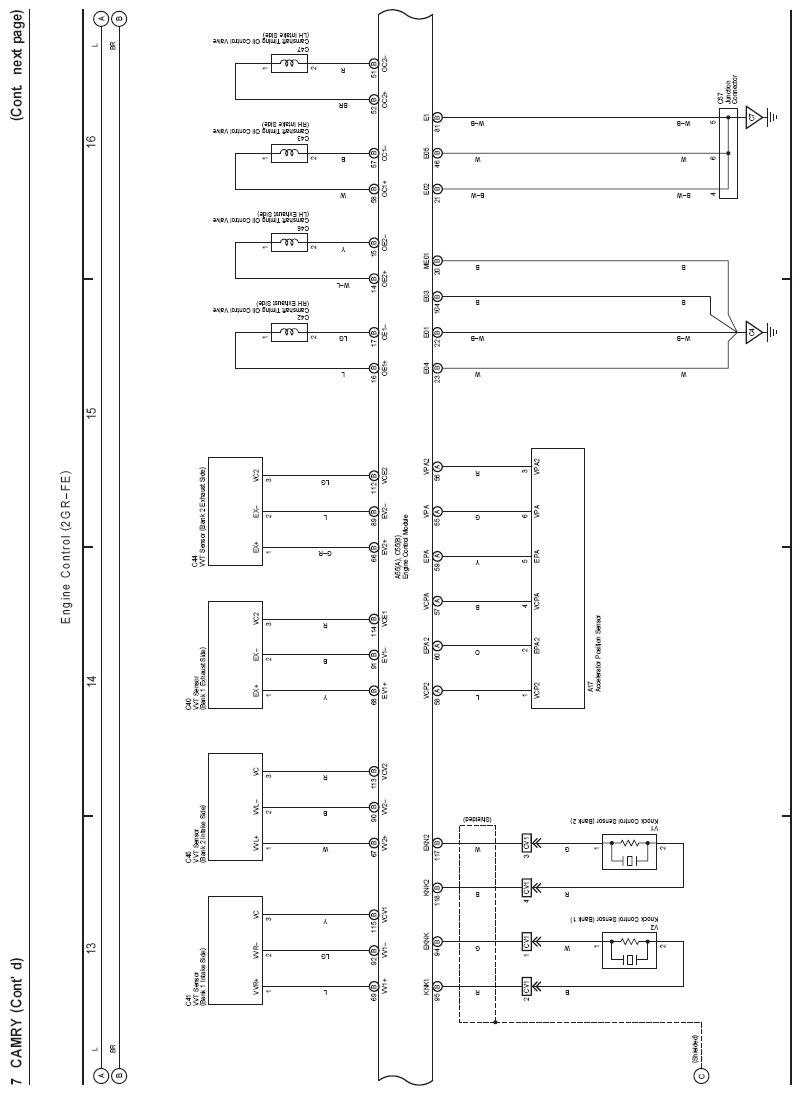

Fig 2: Engine Control (2Gr FE) Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

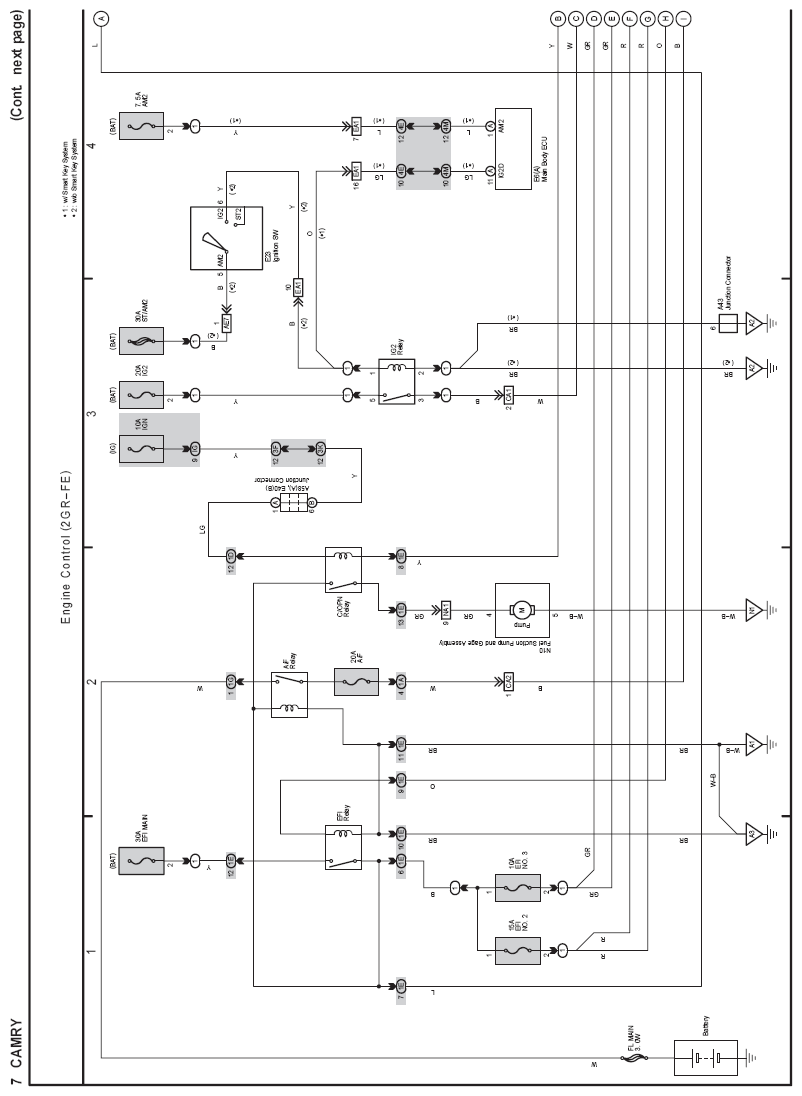

Fig 3: Engine Control (2Gr FE) Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

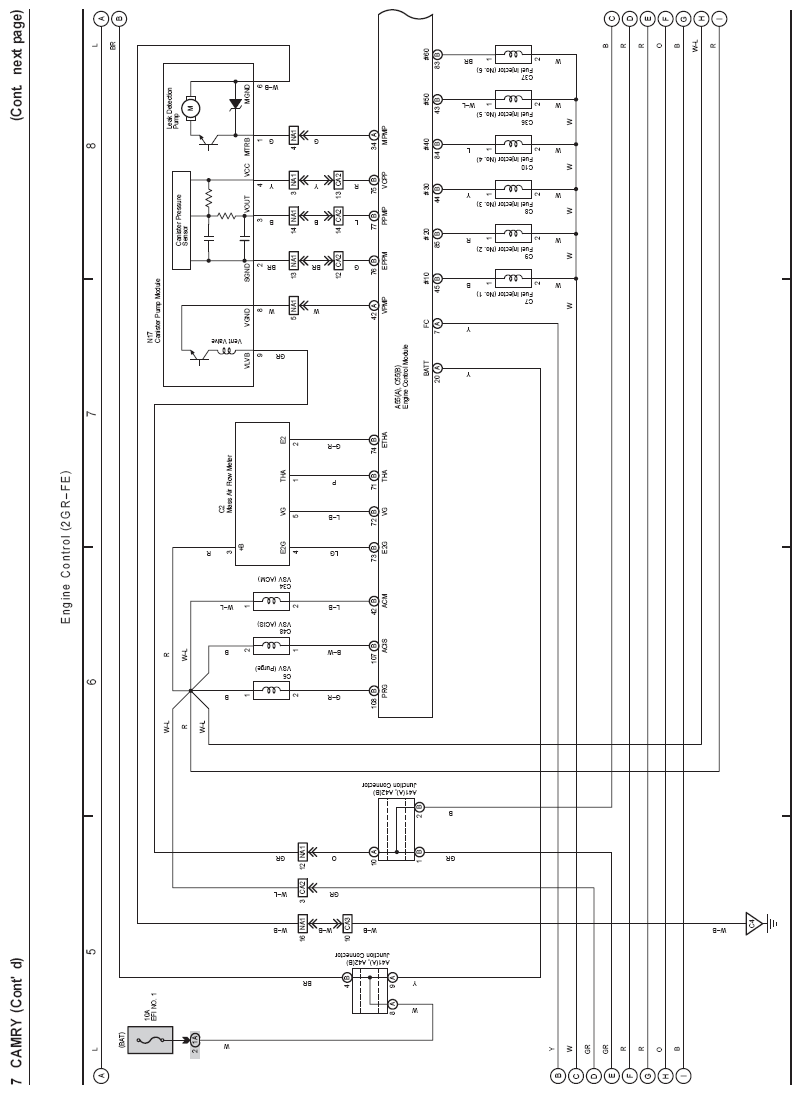

Fig 4: Engine Control (2Gr FE) Electrical Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

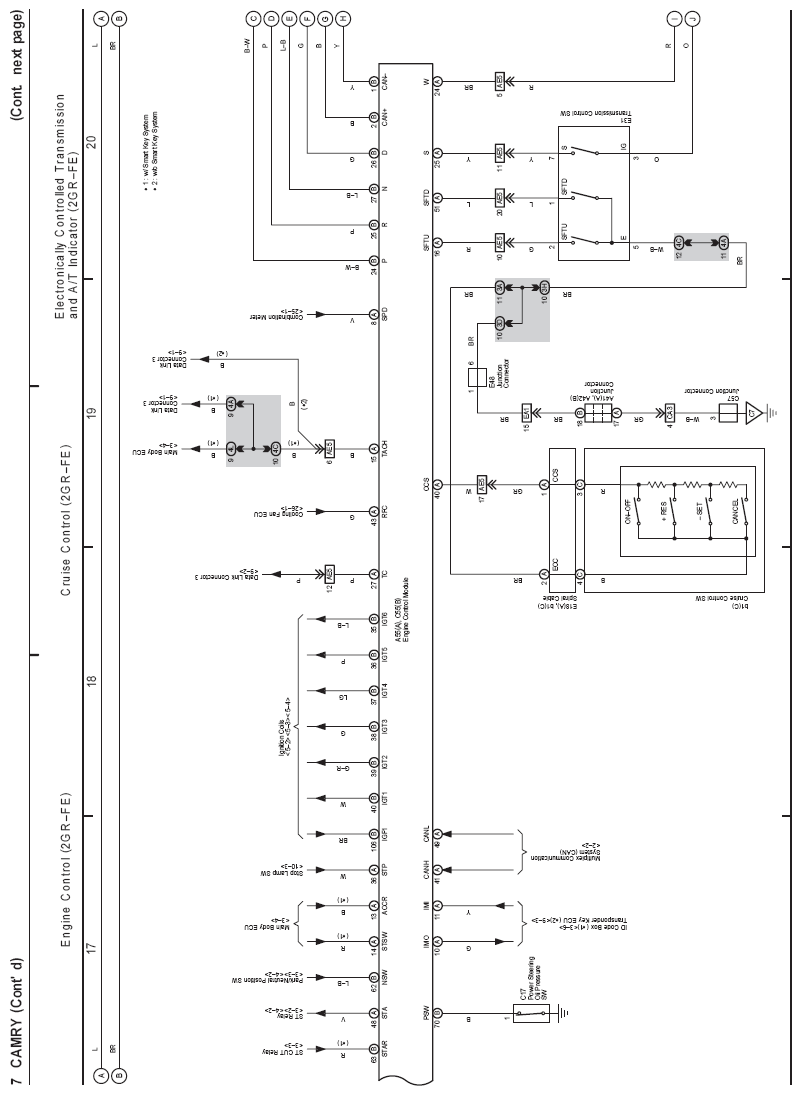

Fig 5: Engine Control (2Gr FE) Electrical Wiring Diagram (5 Of 5)

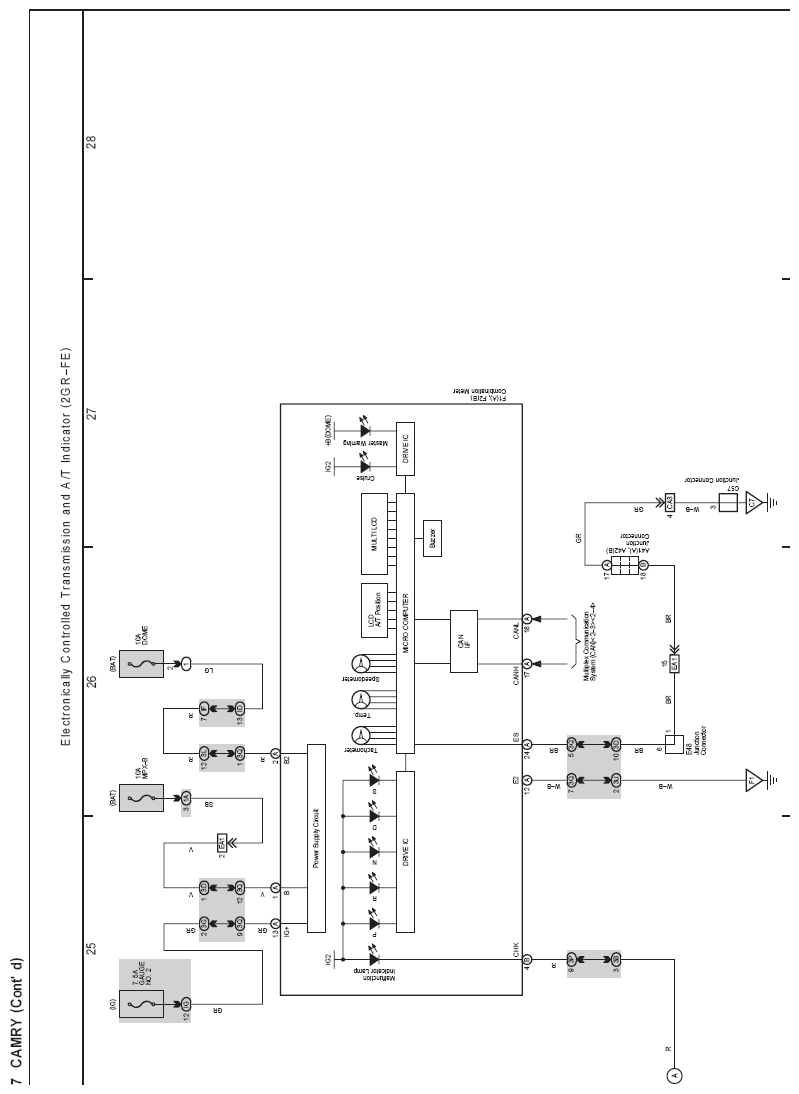

Fig 6: Electronically Controlled Transmission And A/T Indicator (2GR FE) - (1 Of 2)

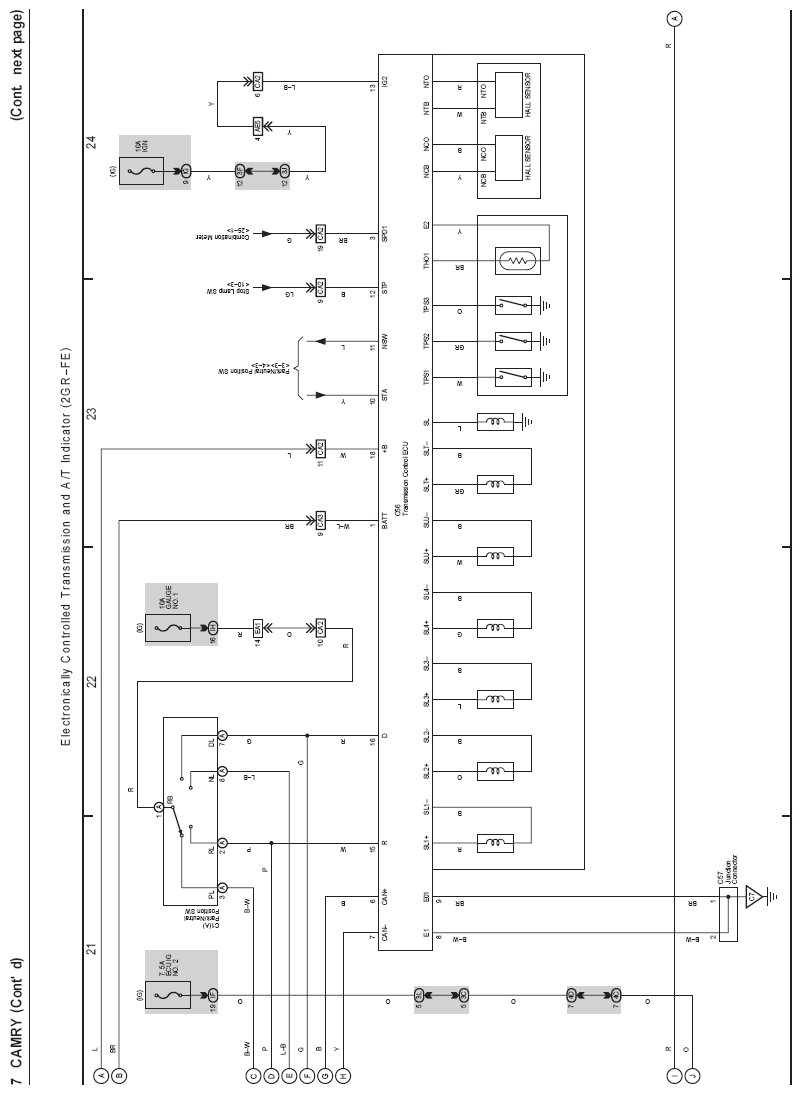

Fig 7: Electronically Controlled Transmission And A/T Indicator (2GR FE) - (2 Of 2)
