Charging, Starting (w/o Smart Key System)

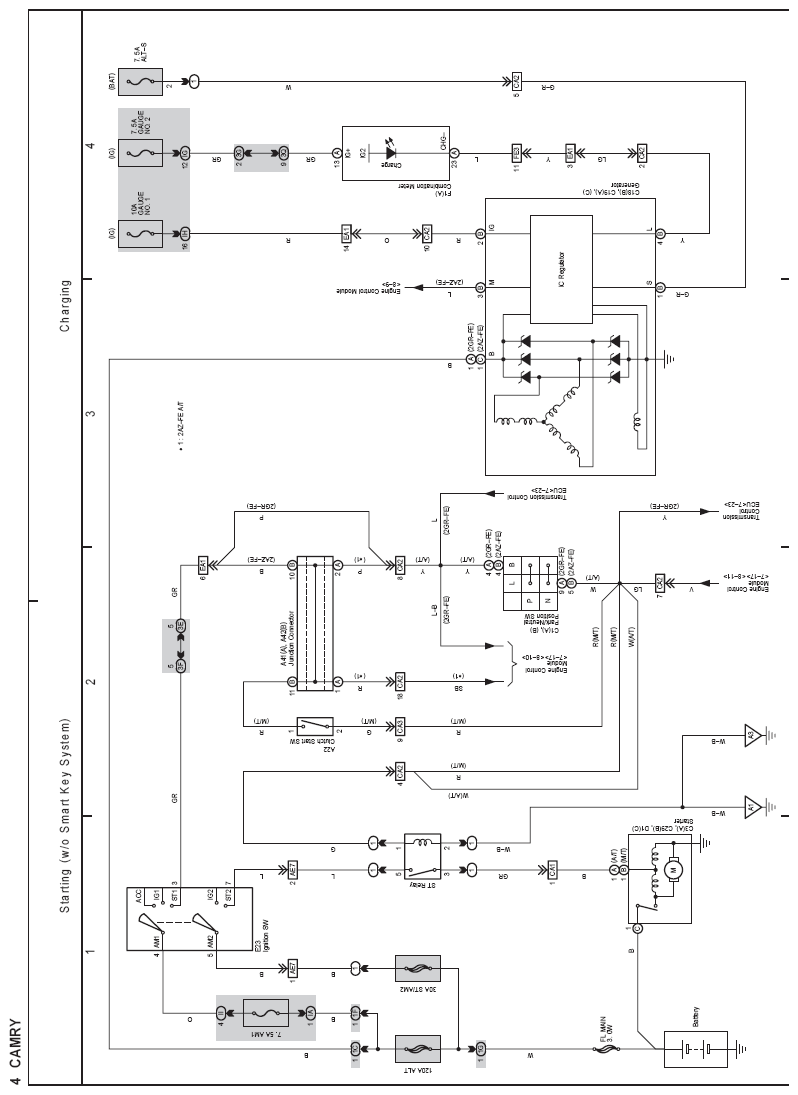

Fig 1: Charging Electrical Wiring Diagram

G07603640

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
