Audio System (8 Speaker w/ Navigation System), Navigation System

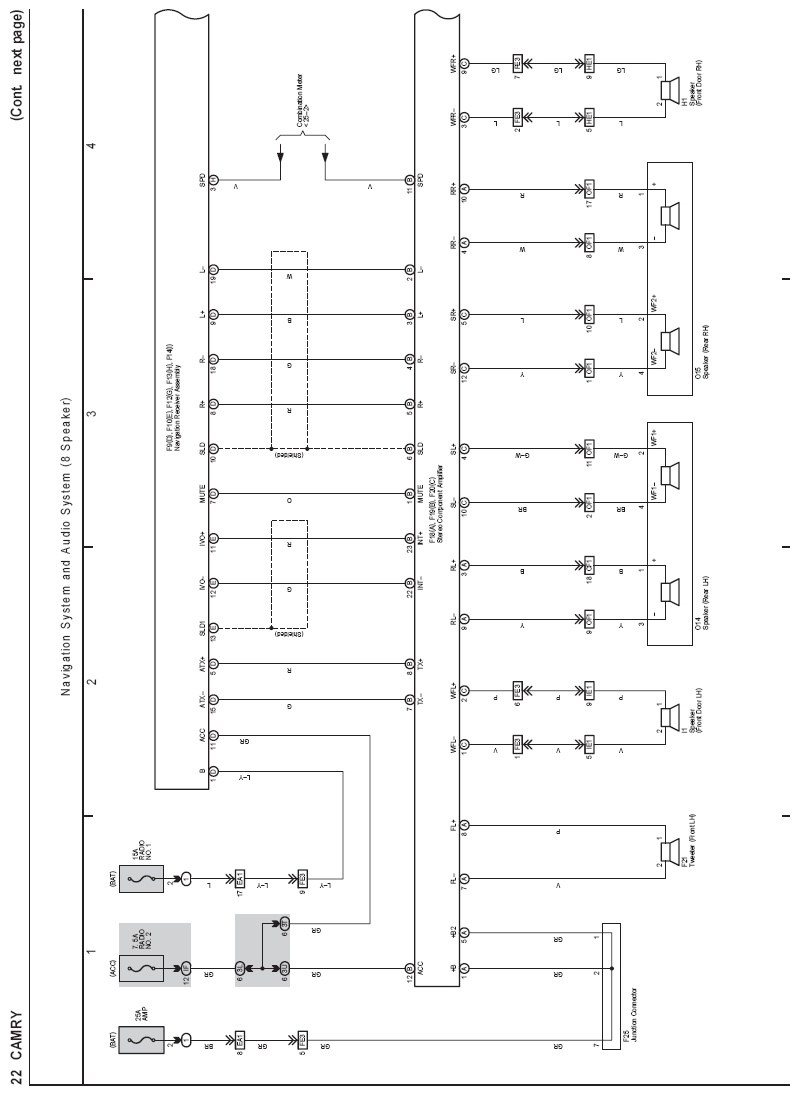

Fig 1: Navigation System And Audio System (8 Speaker) Electrical Wiring Diagram (1 Of 2)
G07603671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

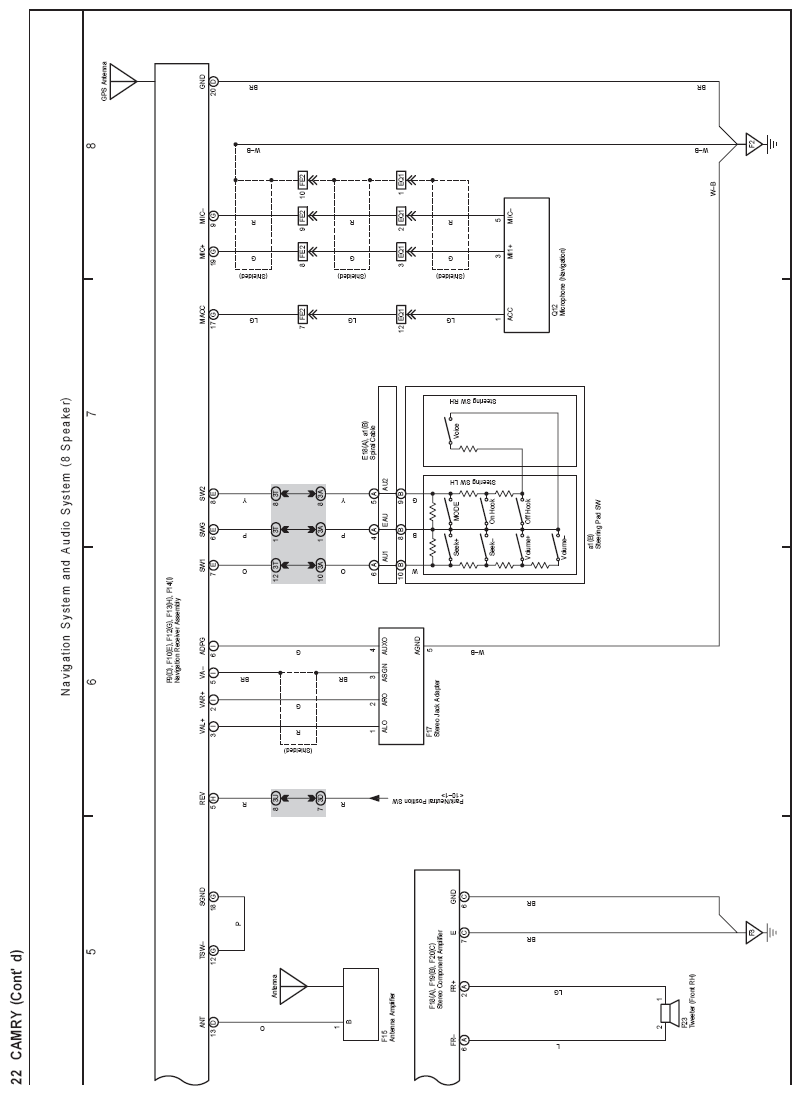

Fig 2: Navigation System And Audio System (8 Speaker) Electrical Wiring Diagram (2 Of 2)
G07603672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
