ABS (w/ VSC TMC Made), Multiplex Communication System (CAN)

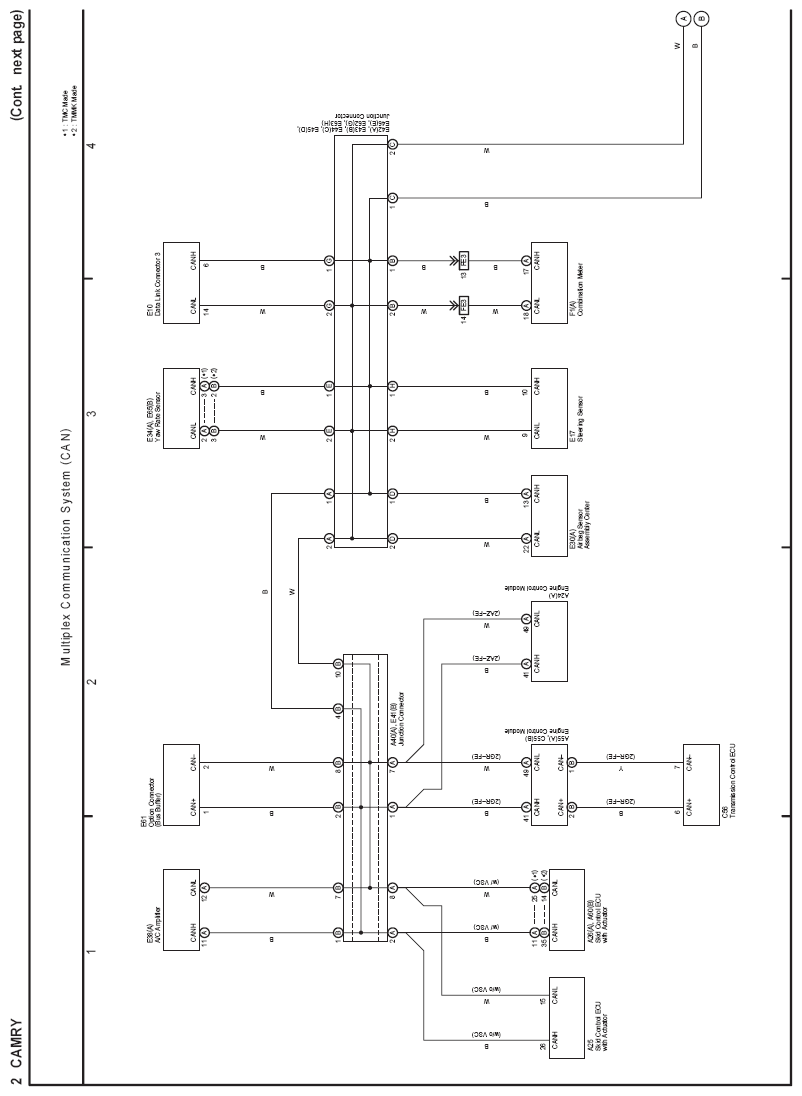

Fig 1: Multiplex Communication System (CAN) Electrical Wiring Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

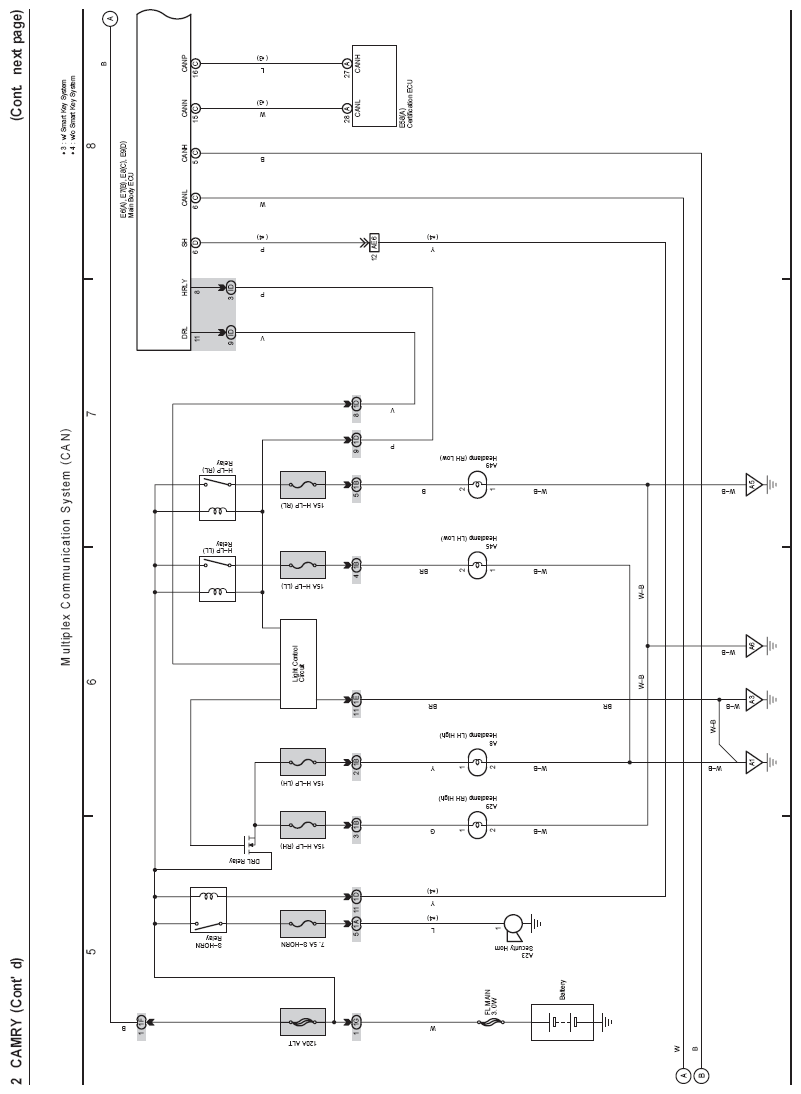

Fig 2: Multiplex Communication System (CAN) Electrical Wiring Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

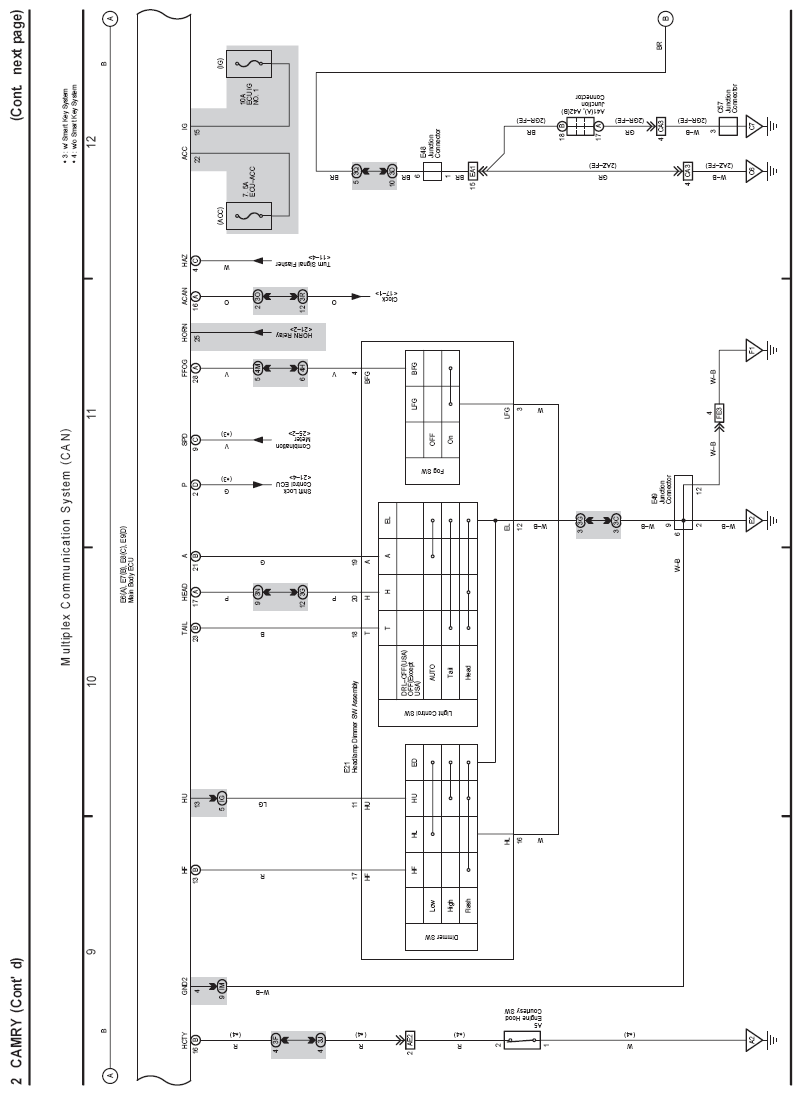

Fig 3: Multiplex Communication System (CAN) Electrical Wiring Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Multiplex Communication System (CAN) Electrical Wiring Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

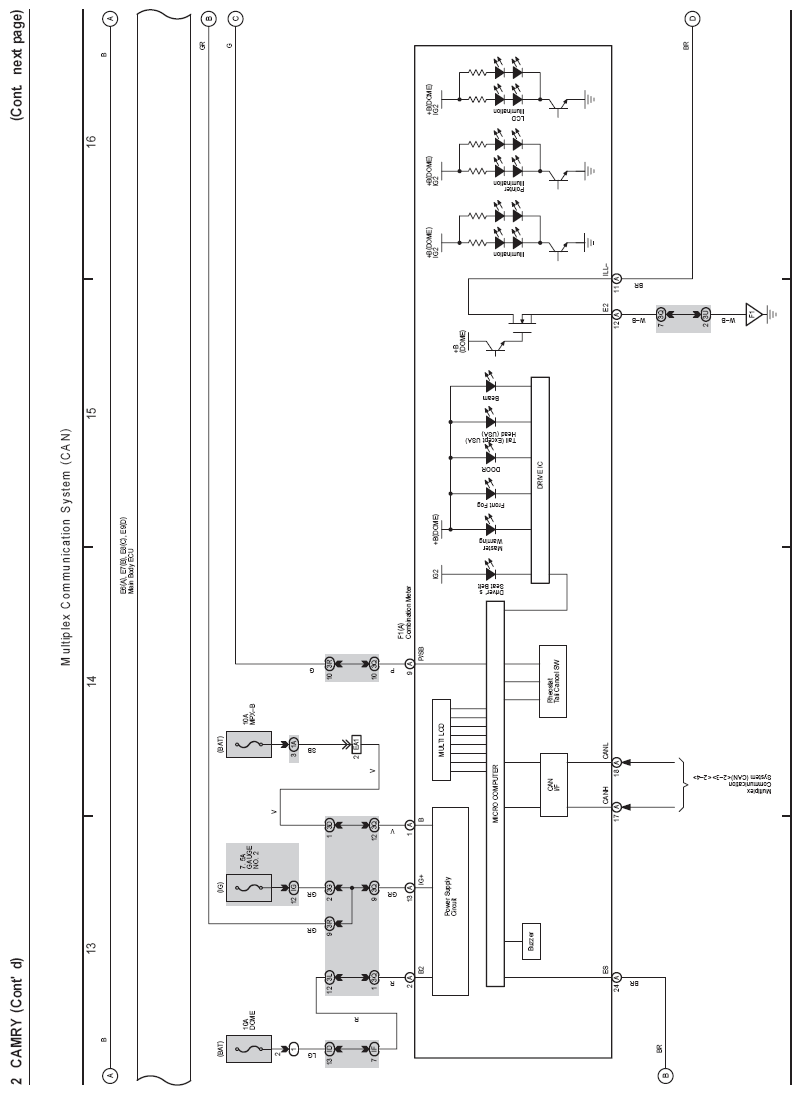

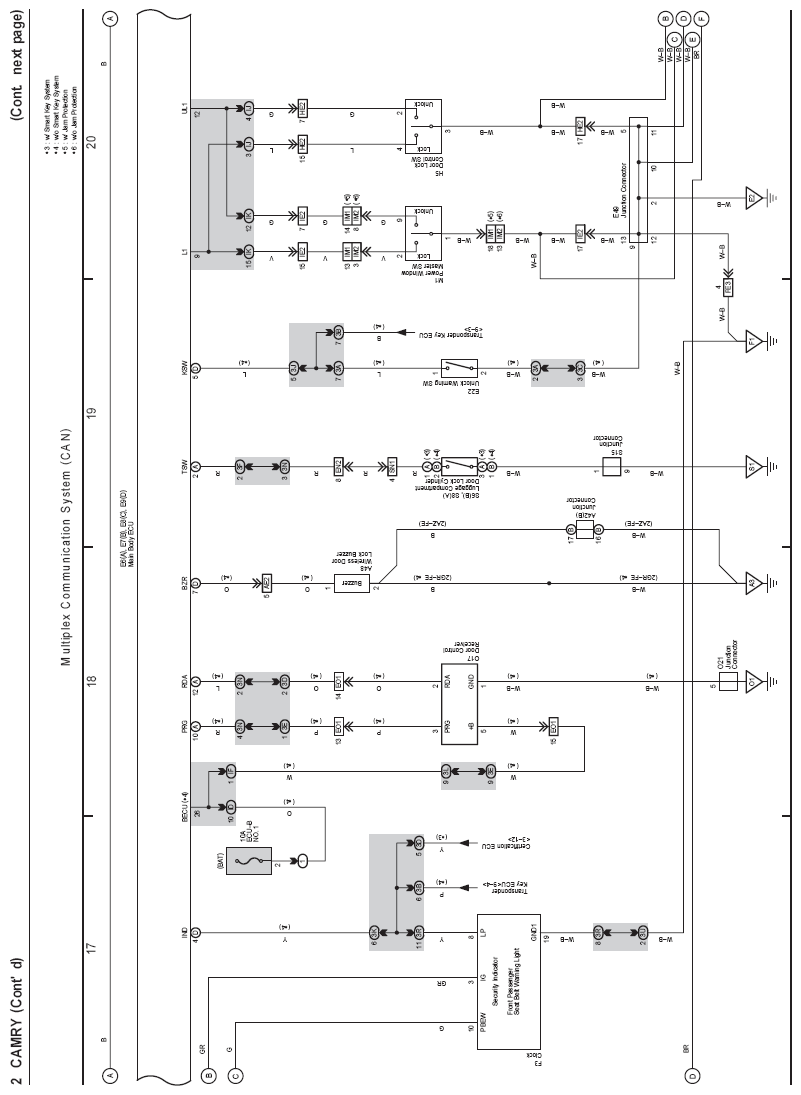

Fig 5: Multiplex Communication System (CAN) Electrical Wiring Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Multiplex Communication System (CAN) Electrical Wiring Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Multiplex Communication System (CAN) Electrical Wiring Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

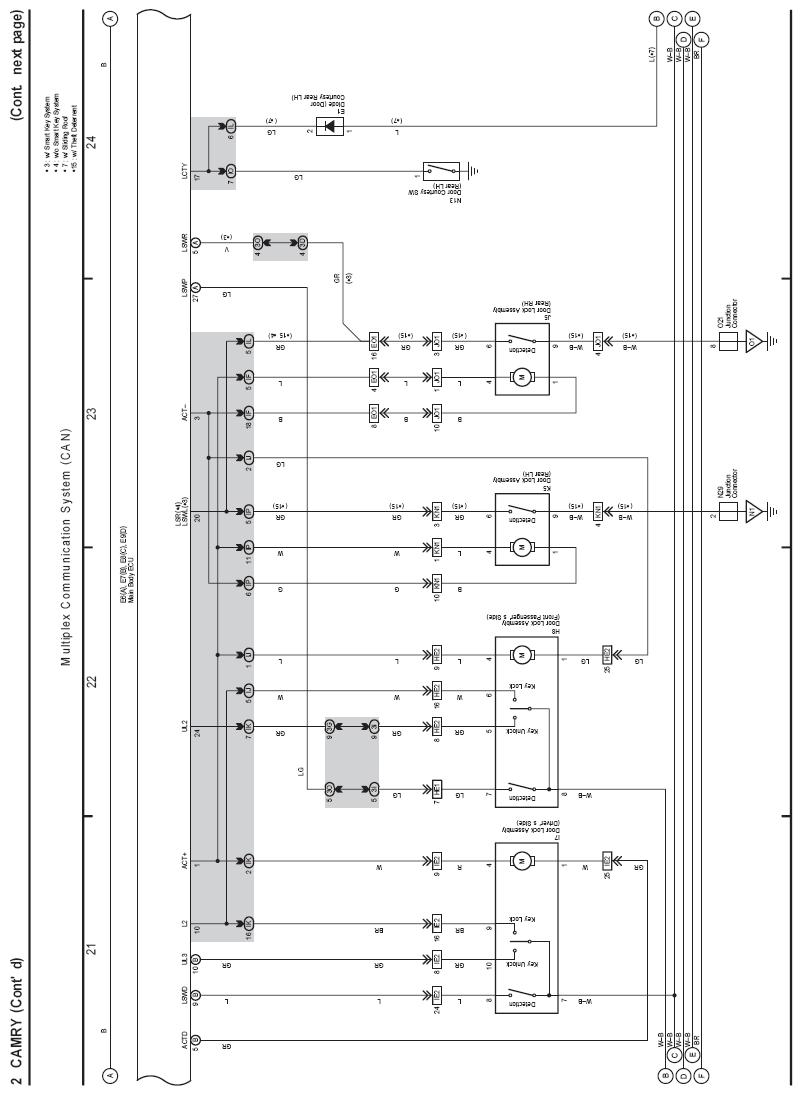

Fig 8: Multiplex Communication System (CAN) Electrical Wiring Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

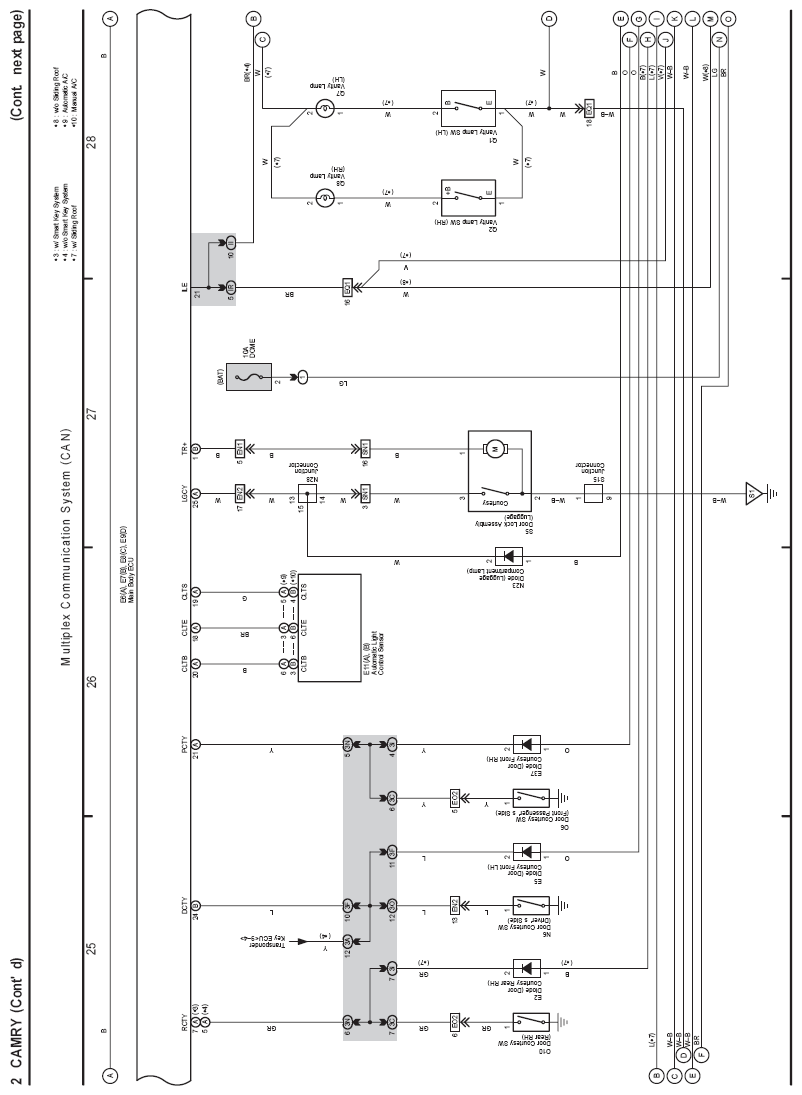

Fig 9: Multiplex Communication System (CAN) Electrical Wiring Diagram (9 Of 12)

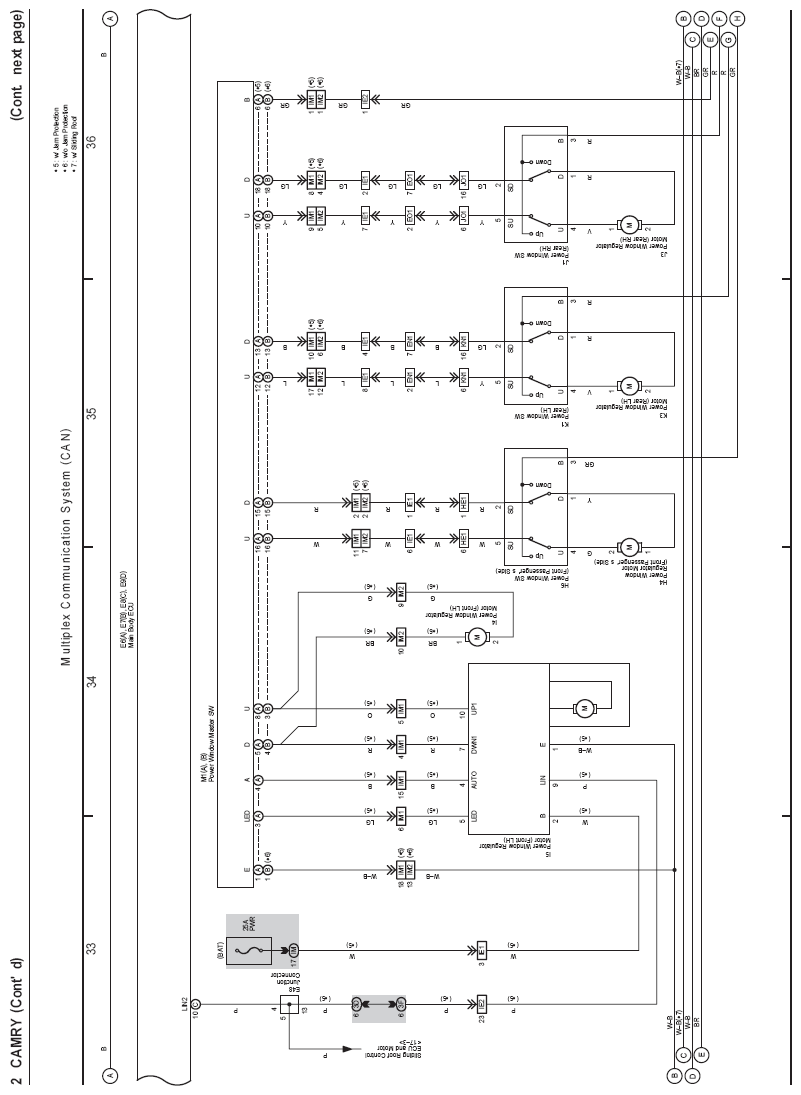

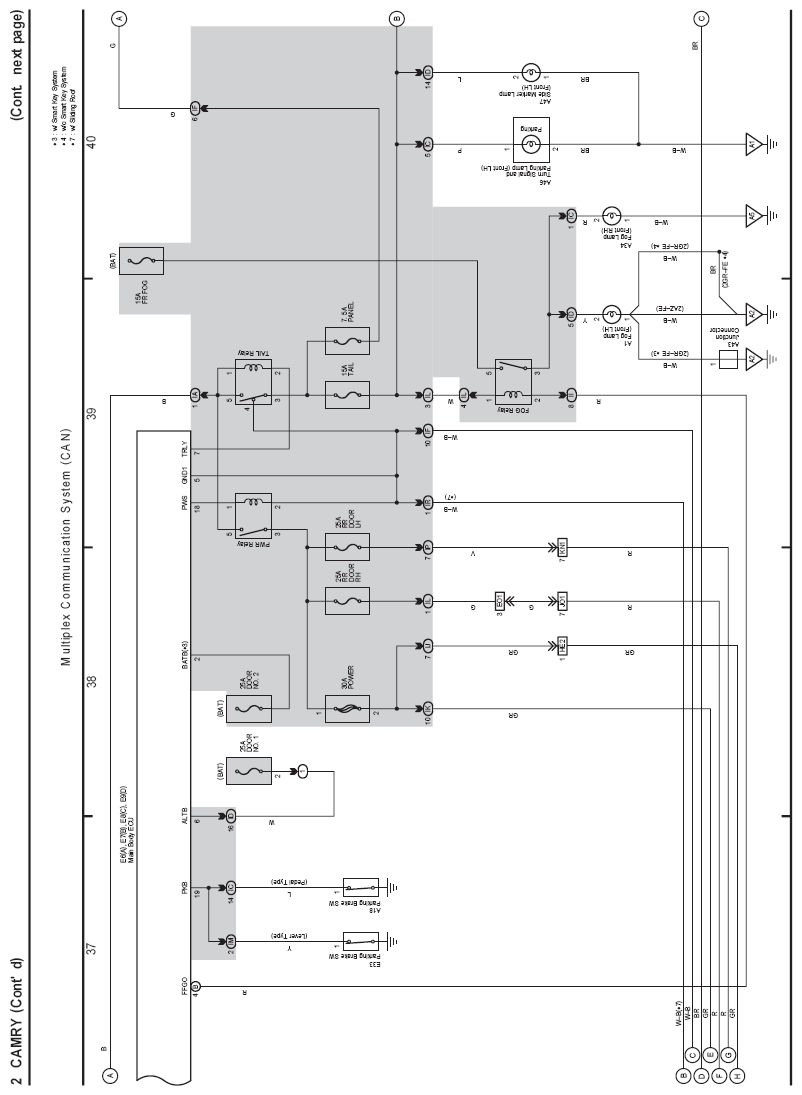

Fig 10: Multiplex Communication System (CAN) Electrical Wiring Diagram (10 Of 12)

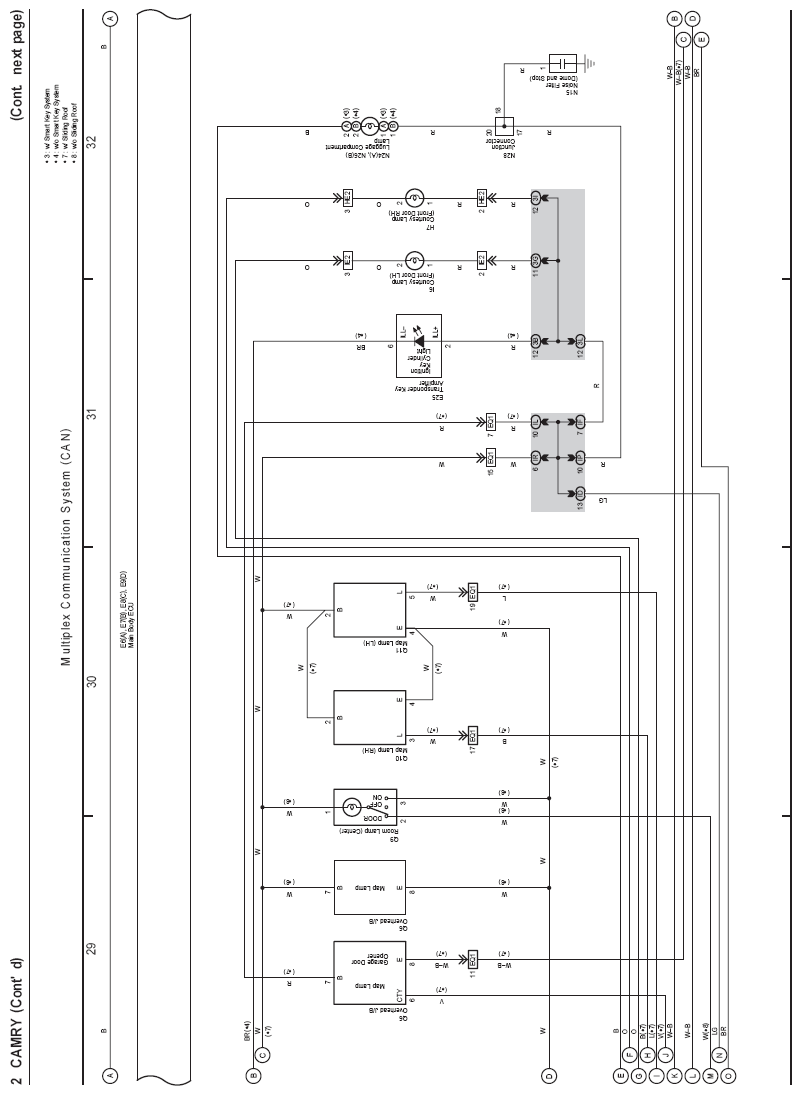

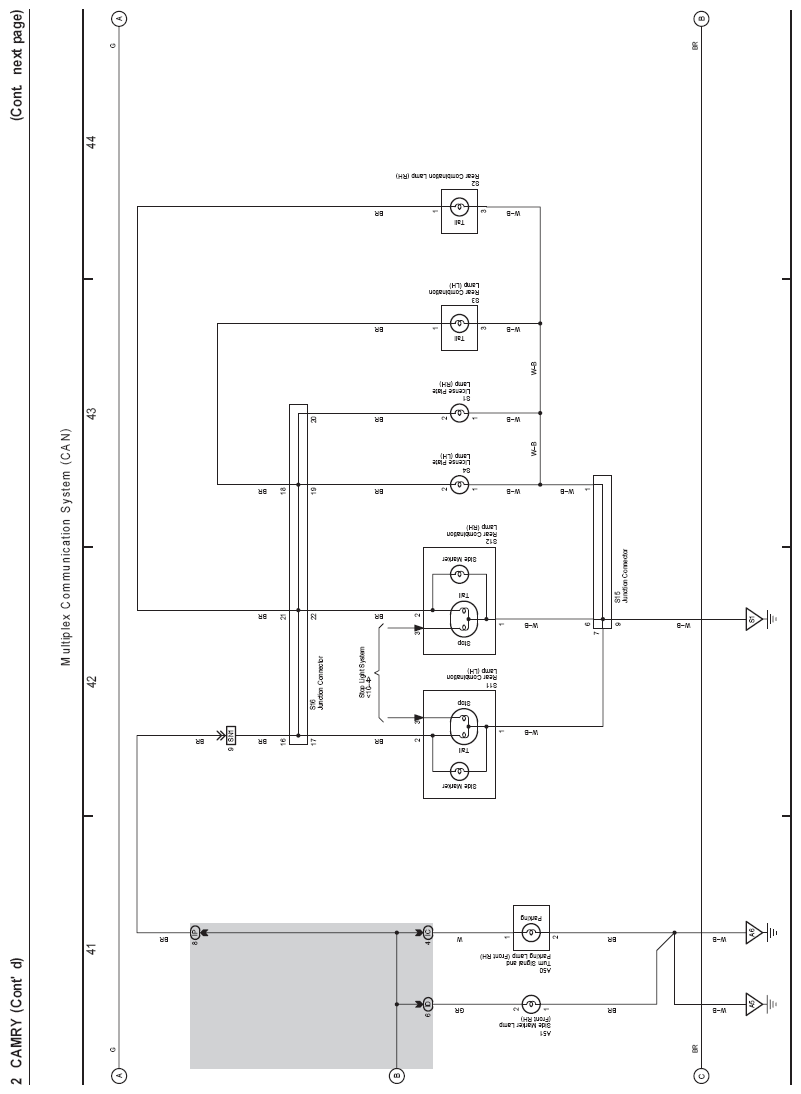

Fig 11: Multiplex Communication System (CAN) Electrical Wiring Diagram (11 Of 12)

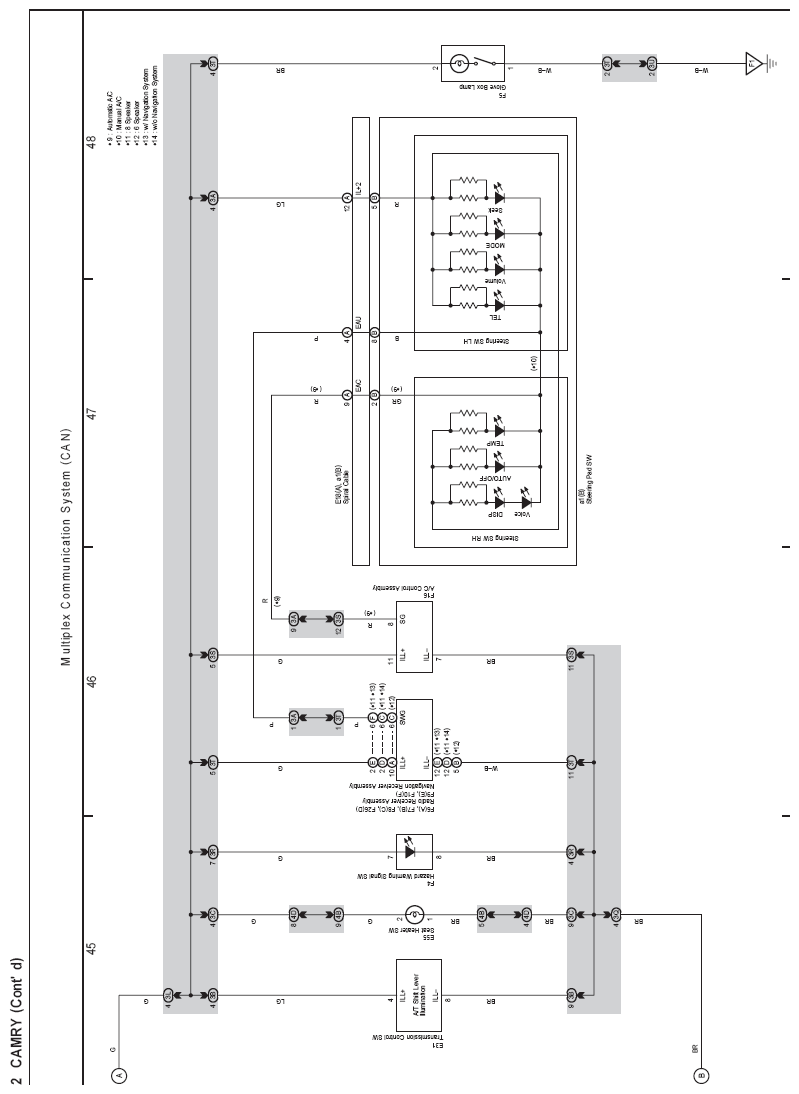

Fig 12: Multiplex Communication System (CAN) Electrical Wiring Diagram (12 Of 12)
