Home >> Toyota >> 2008 >> Camry Base, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Exterior (Except Hybrid) >> Rear Bumper >> Components

Rear Bumper: Components

Fig 1: Identifying Rear Bumper Components (1 Of 3)
G04980143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

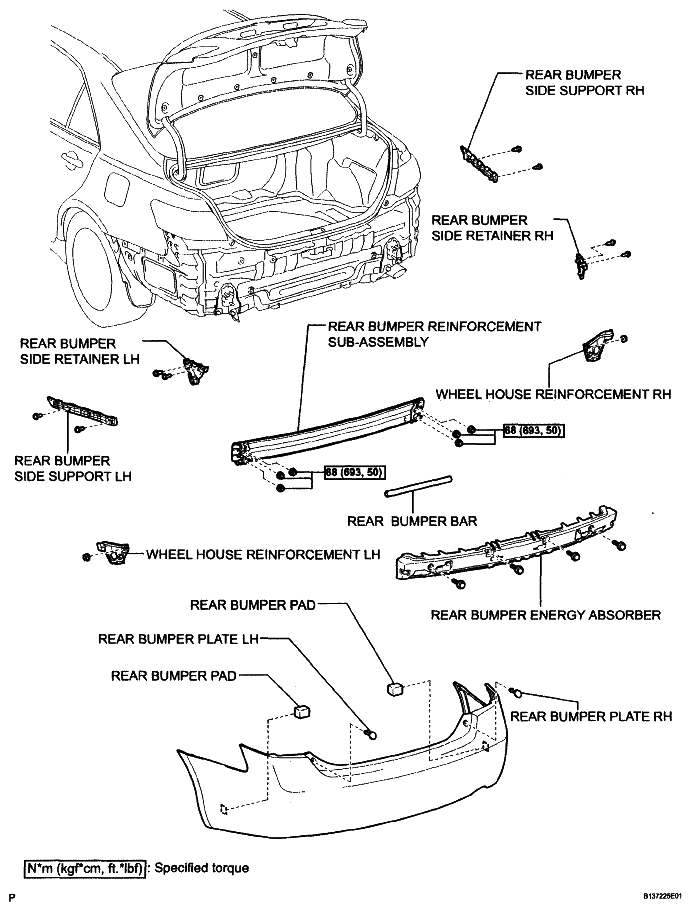

Fig 2: Rear Bumper Replacement Components With Torque Specifications (2 Of 3)
G04981905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

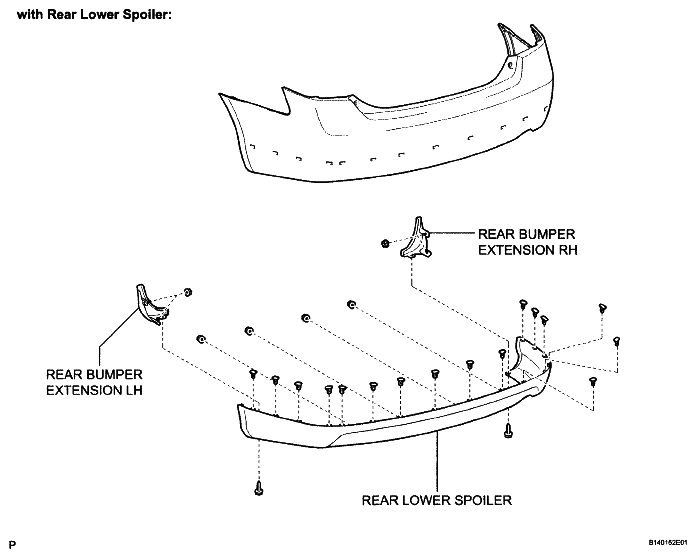

Fig 3: Identifying Rear Bumper Components (3 Of 3)
G04981906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
