Front Door Black Out Tape: Components

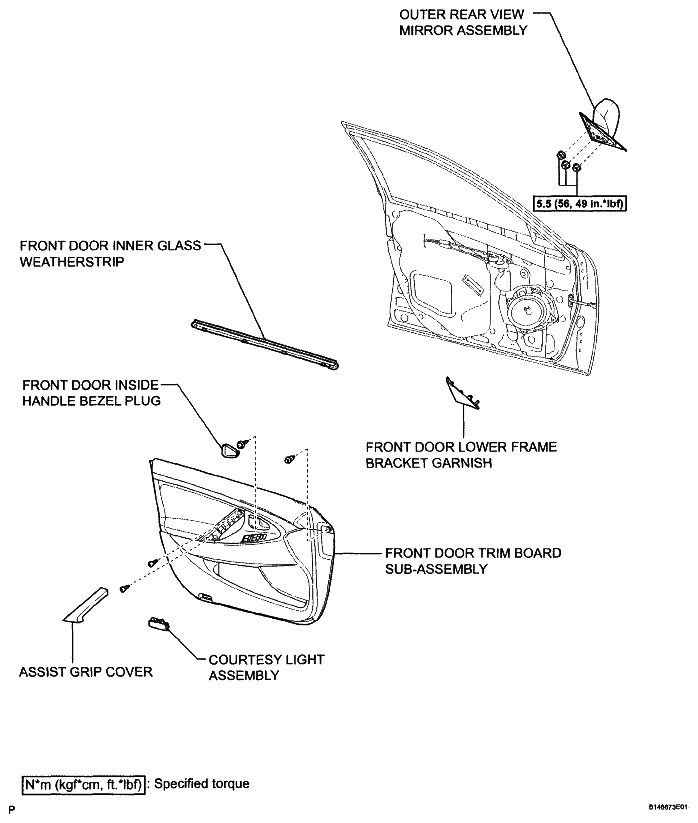

Fig 1: Front Door Black Out Tape Replacement Components With Torque Specifications (1 Of 2)
G04982026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

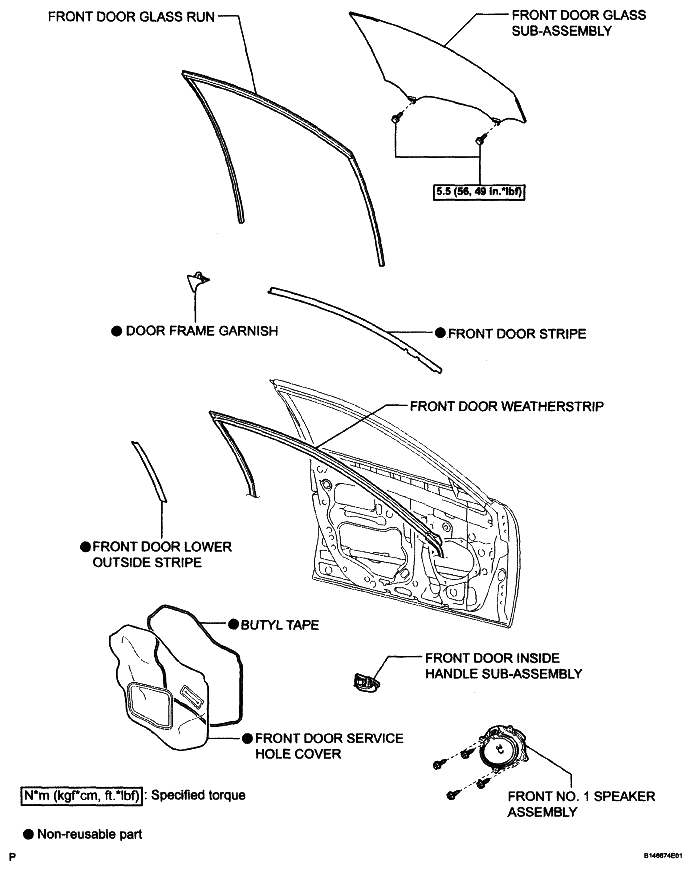

Fig 2: Front Door Black Out Tape Replacement Components With Torque Specifications (2 Of 2)
G04982027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
