Turn Signal Flasher Assembly: Components

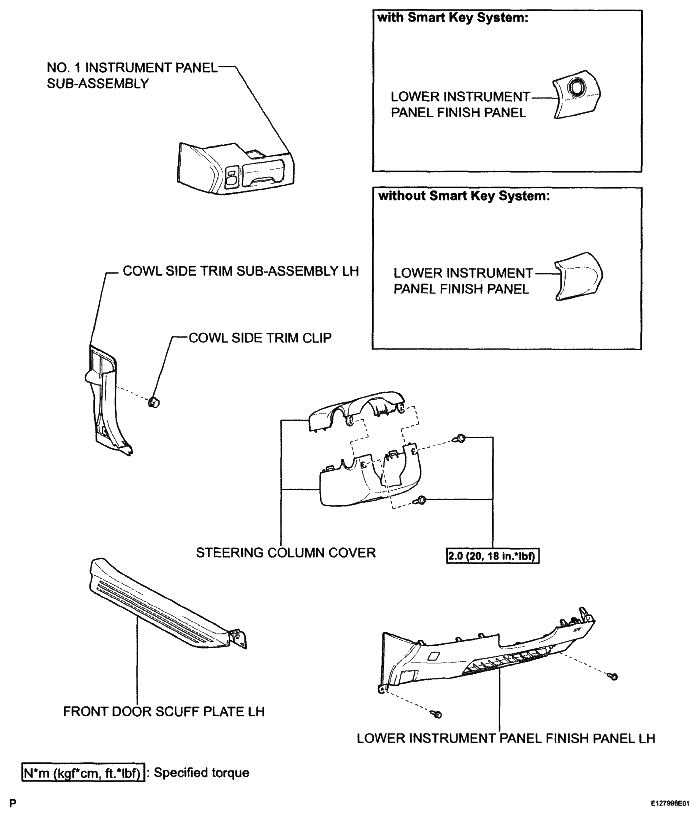

Fig 1: Turn Signal Flasher Replacement Components With Torque Specifications (1 Of 2)
G04980231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

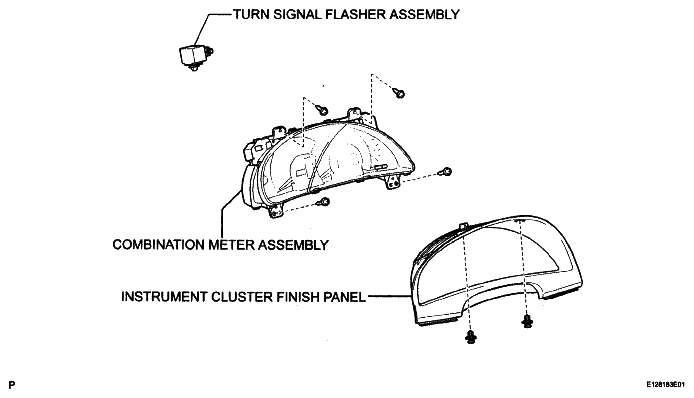

Fig 2: Identifying Turn Signal Flasher Components (2 Of 2)
G04980232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
