Rear Combination Light Assembly: Components

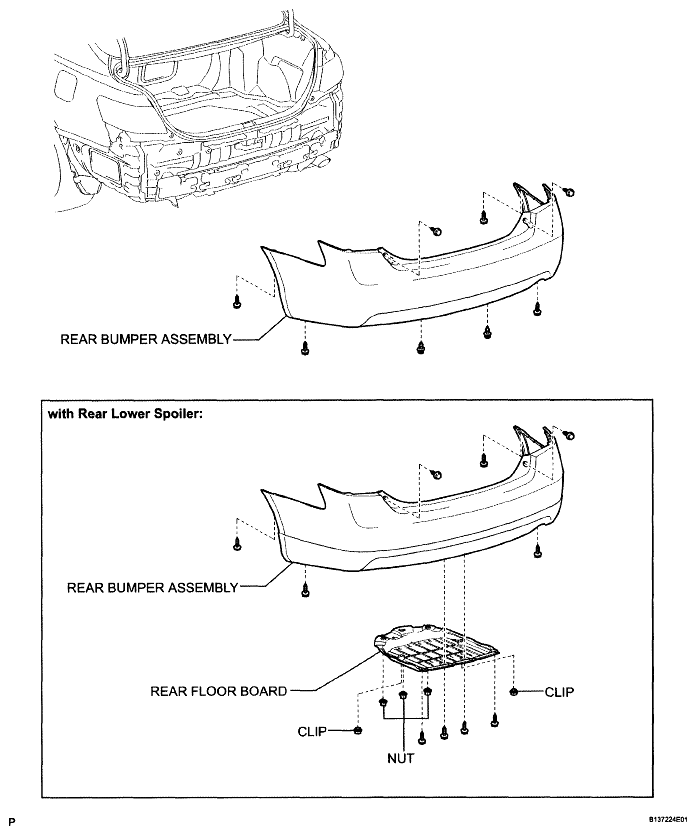

Fig 1: Identifying Rear Combination Light Components (1 Of 4)
G04980143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

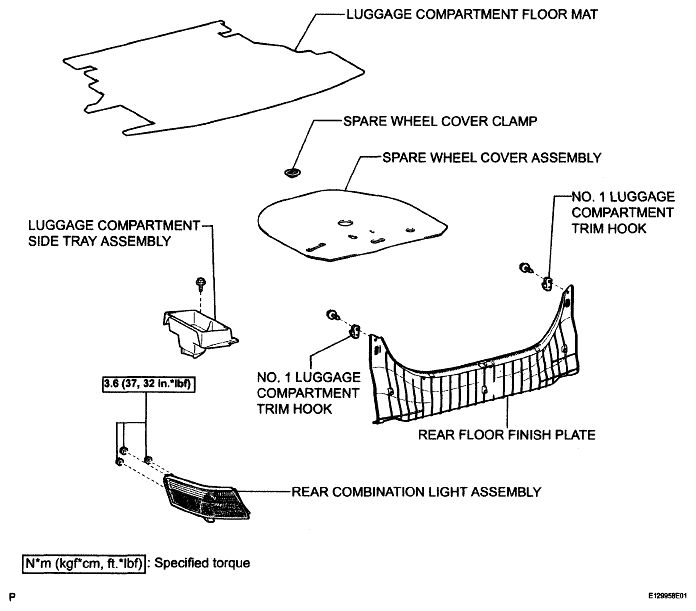

Fig 2: Rear Combination Light Replacement Components With Torque Specifications (2 Of 4)
G04980144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

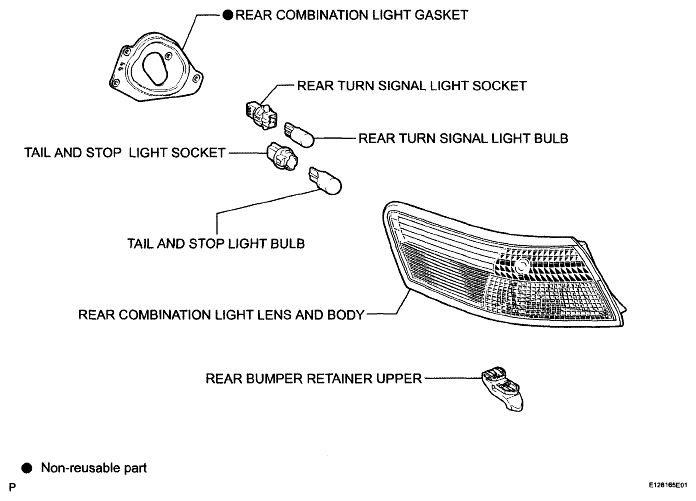

Fig 3: Identifying Rear Combination Light Components (3 Of 4)
G04980145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

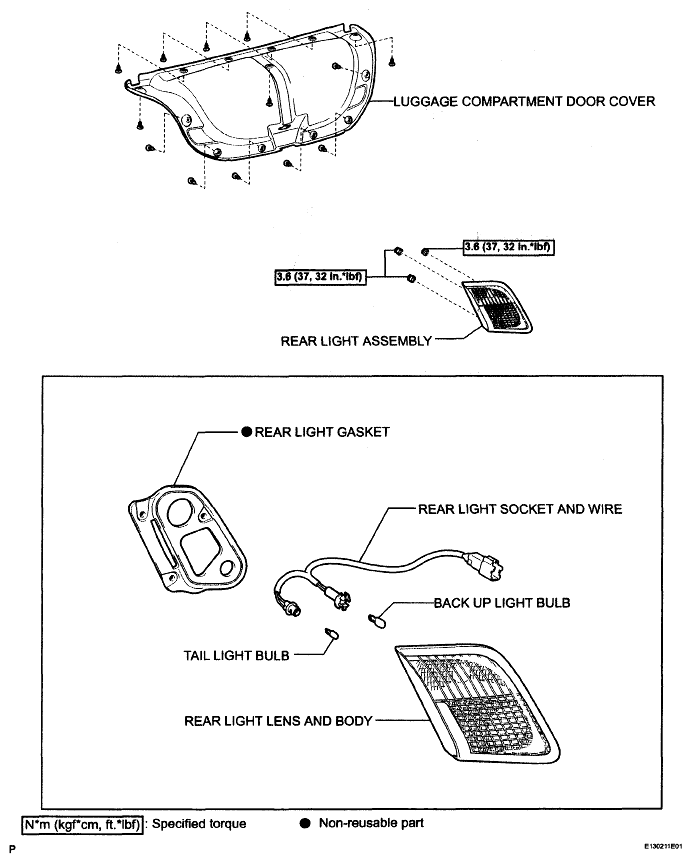

Fig 4: Rear Combination Light Replacement Components With Torque Specifications (4 Of 4)
G04980146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
