Lighting System
>>
Parts Location
Parts Location

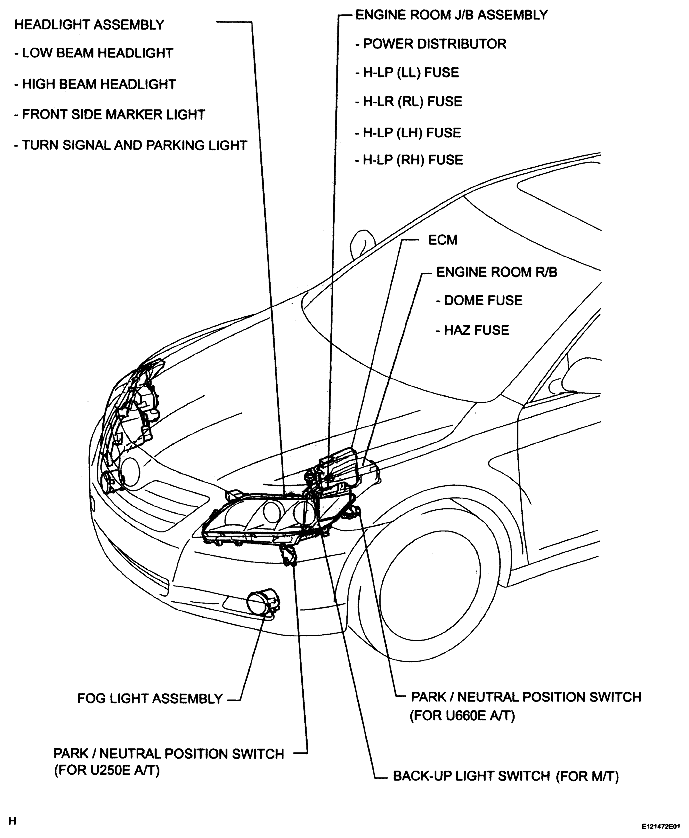

Fig 1: Identifying Lighting System Parts Location (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

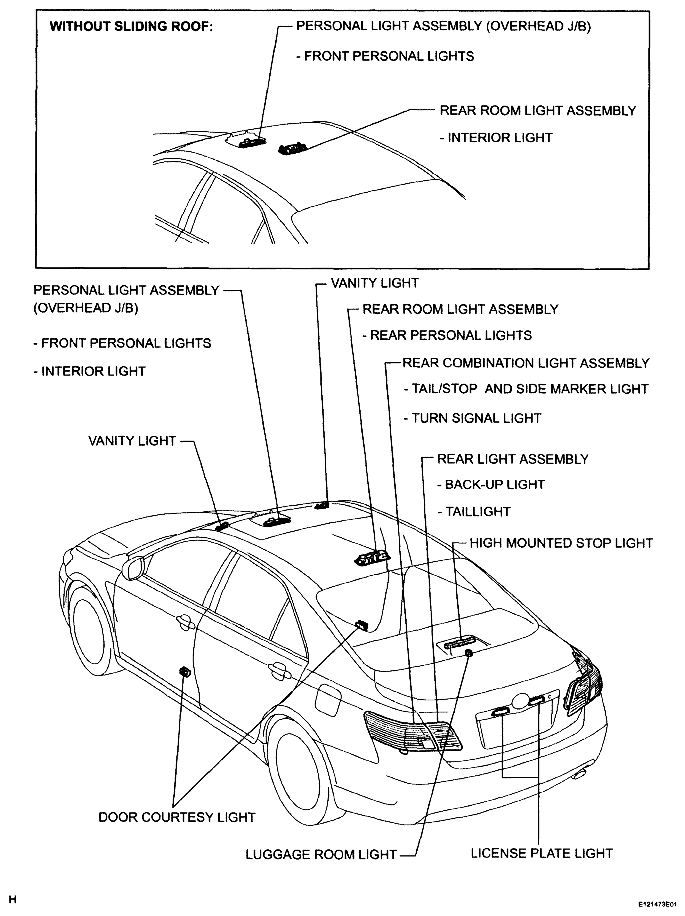

Fig 2: Identifying Lighting System Parts Location (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

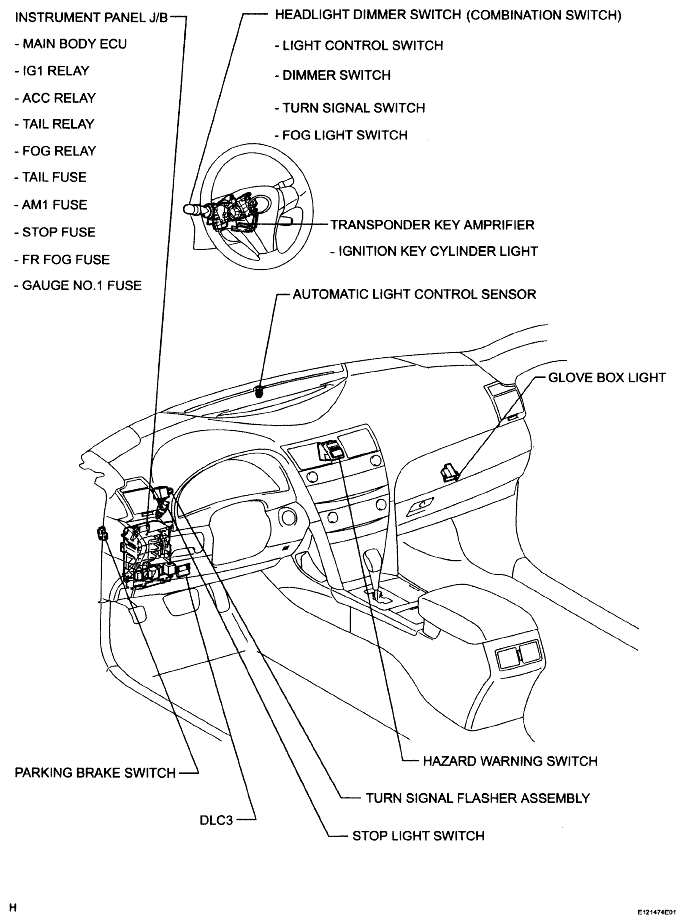

Fig 3: Identifying Lighting System Parts Location (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

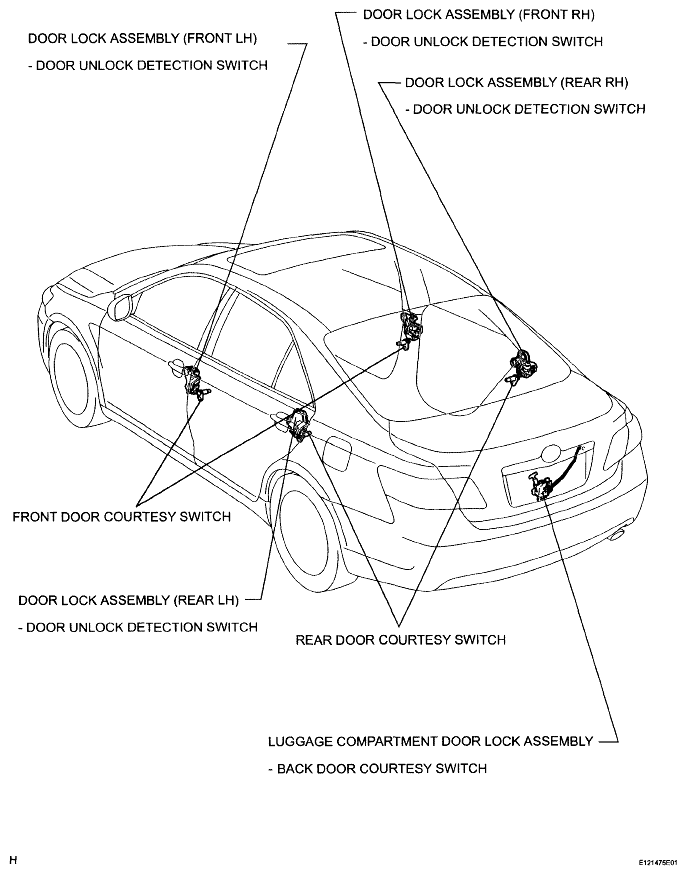

Fig 4: Identifying Lighting System Parts Location (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
