Light Control Switch Circuit: Wiring Diagram

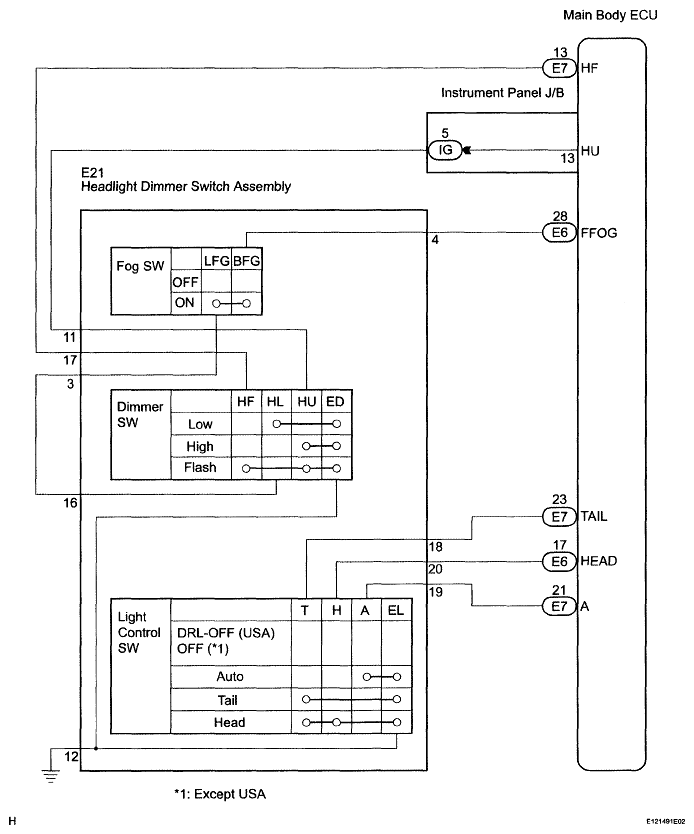

Fig 1: Lighting System Wiring Diagram

G04980097

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
