Ignition Switch Circuit: Wiring Diagram

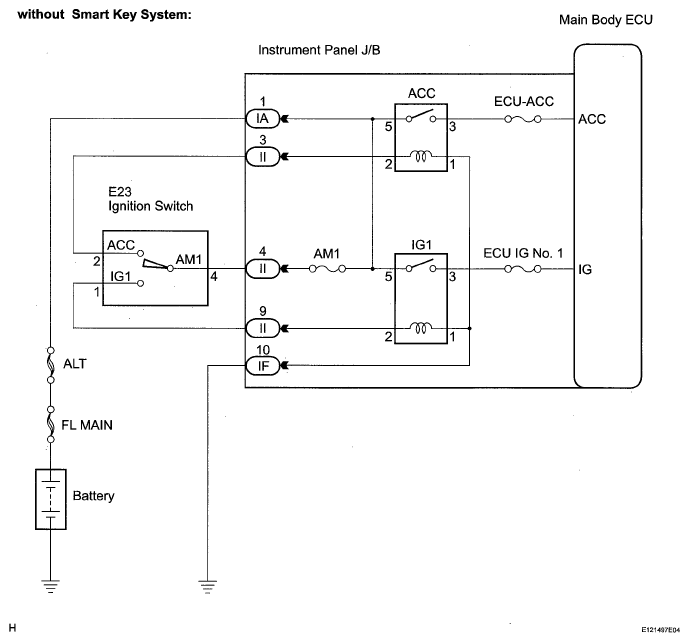

Fig 1: Ignition Switch E23 Without Smart Key - Wiring Diagram
G05560331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

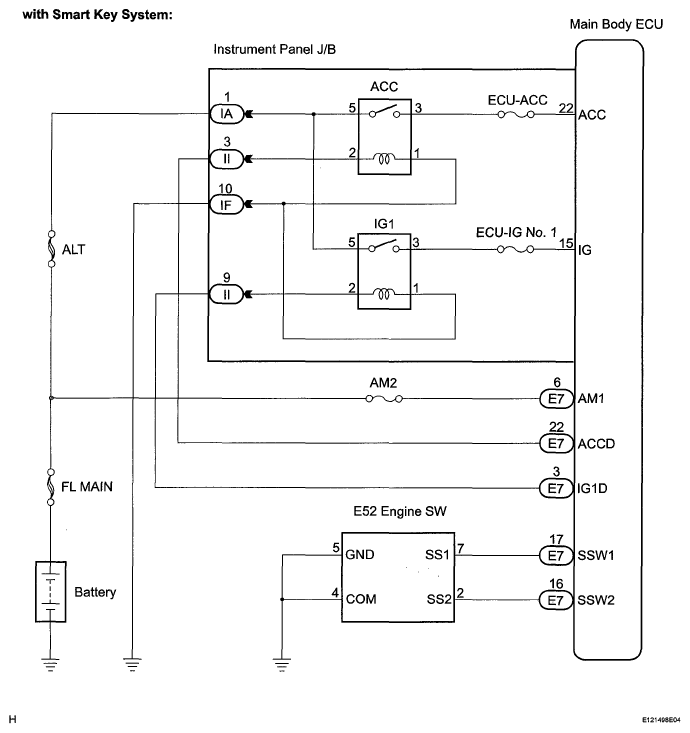

Fig 2: Ignition Switch E52 With Smart Key - Wiring Diagram
G05560332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
