Headlight (HI-BEAM) Circuit: Wiring Diagram

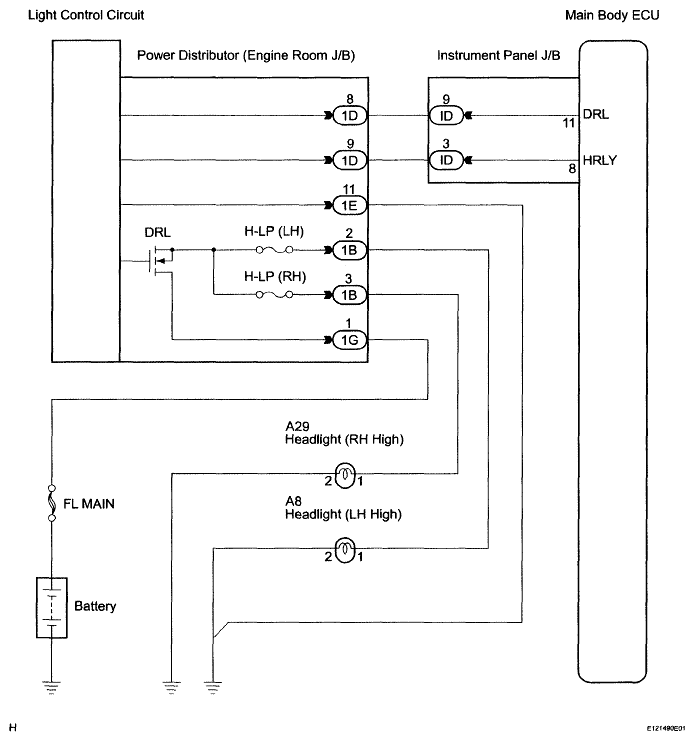

Fig 1: Headlight (HI-BEAM) Wiring Diagram

G04980082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
