Door LOCK Position Circuit: Wiring Diagram

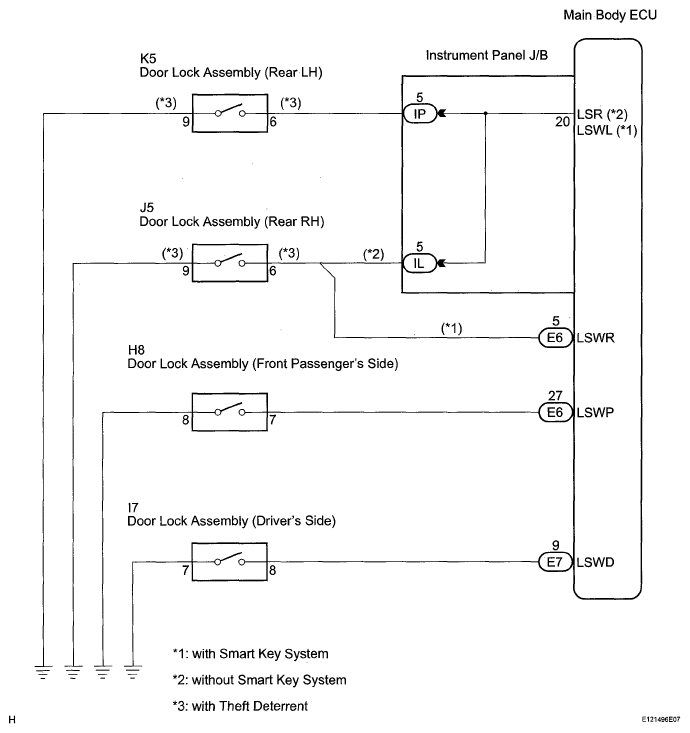

Fig 1: Door Lock Assembly - Wiring Diagram

G05560368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
