Headlight Assembly: Components

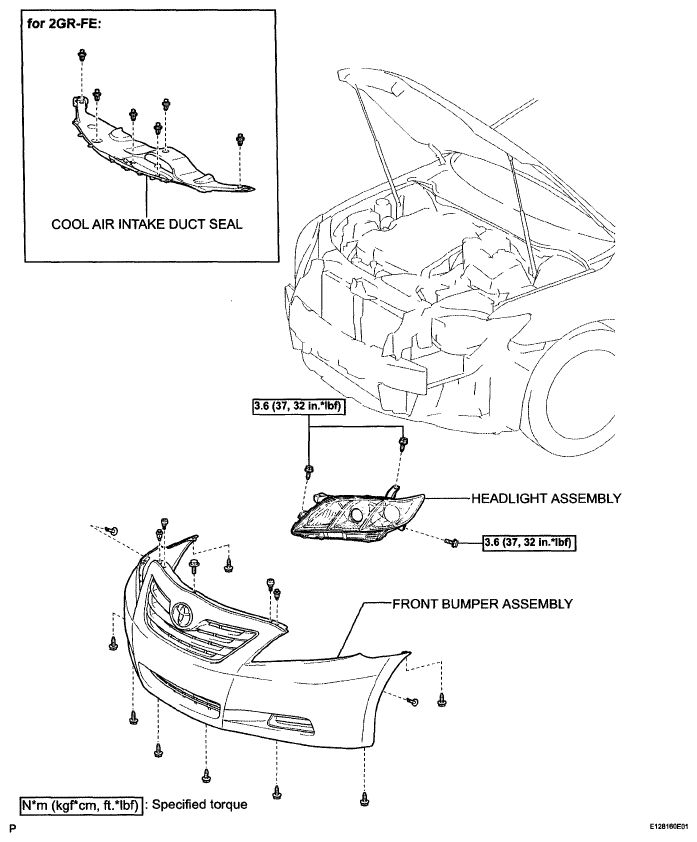

Fig 1: Headlight Replacement Components With Torque Specifications (1 Of 3)
G04980116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

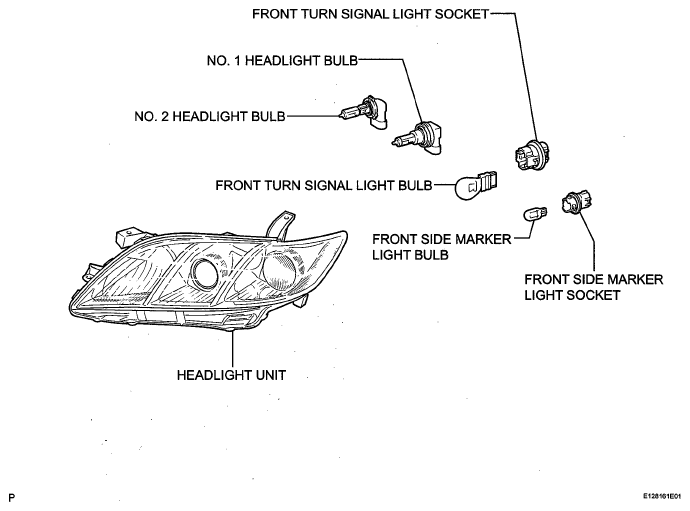

Fig 2: Identifying Headlight Components (2 Of 3)
G05560382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

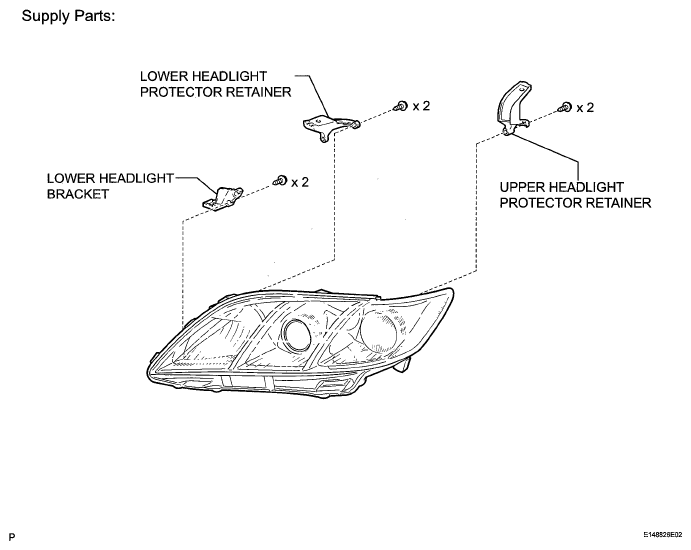

Fig 3: Identifying Headlight Components (3 Of 3)
G05560383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
