Overall Electrical Wiring Diagram: Notes

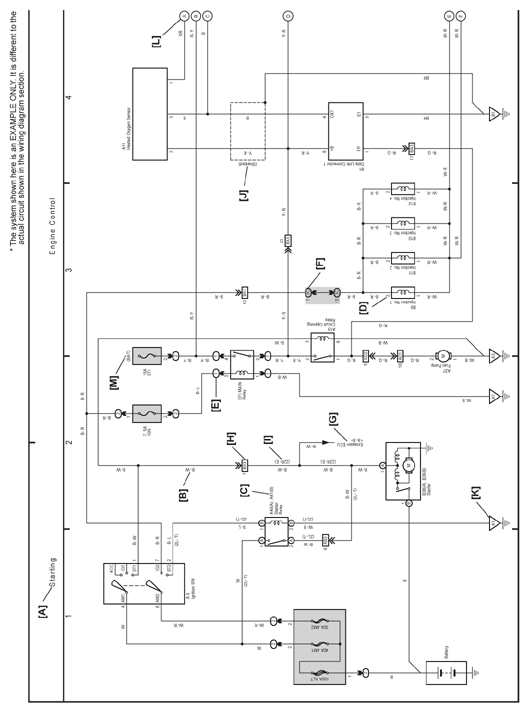

Fig 1: Engine Control Electrical Circuit Diagram (Example)
G07616672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

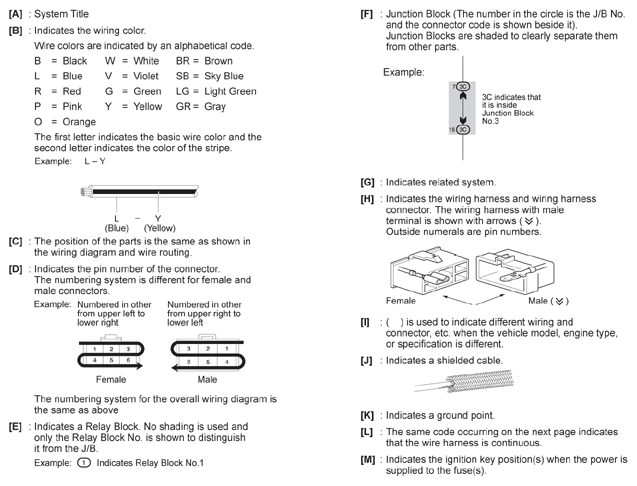

Fig 2: Engine Control Electrical Circuit Legend
G07616673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
