Headlight Beam Level Control, Seat Belt Warning

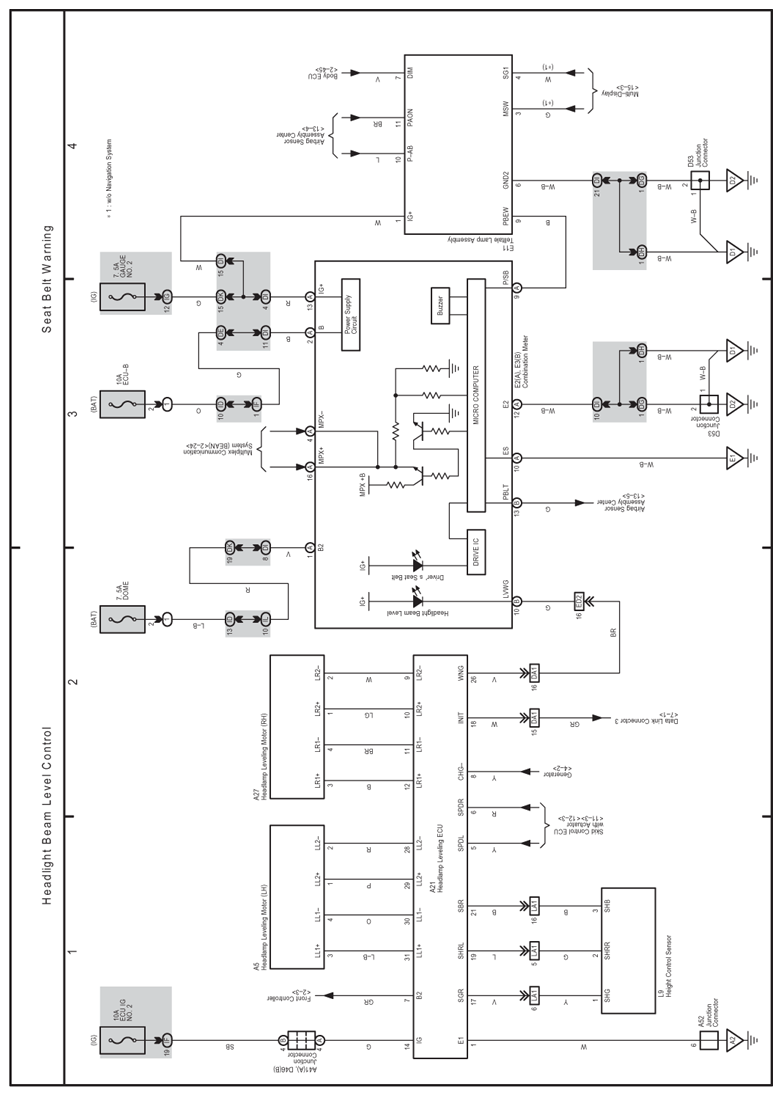

Fig 1: Seat Belt Warning Electrical Wiring Diagram

G07616717

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
