Overall Electrical Wiring Diagram
>>
Data Link Connector 3, Engine Immobiliser System (w/o Smart Key System)
Data Link Connector 3, Engine Immobiliser System (w/o Smart Key System)

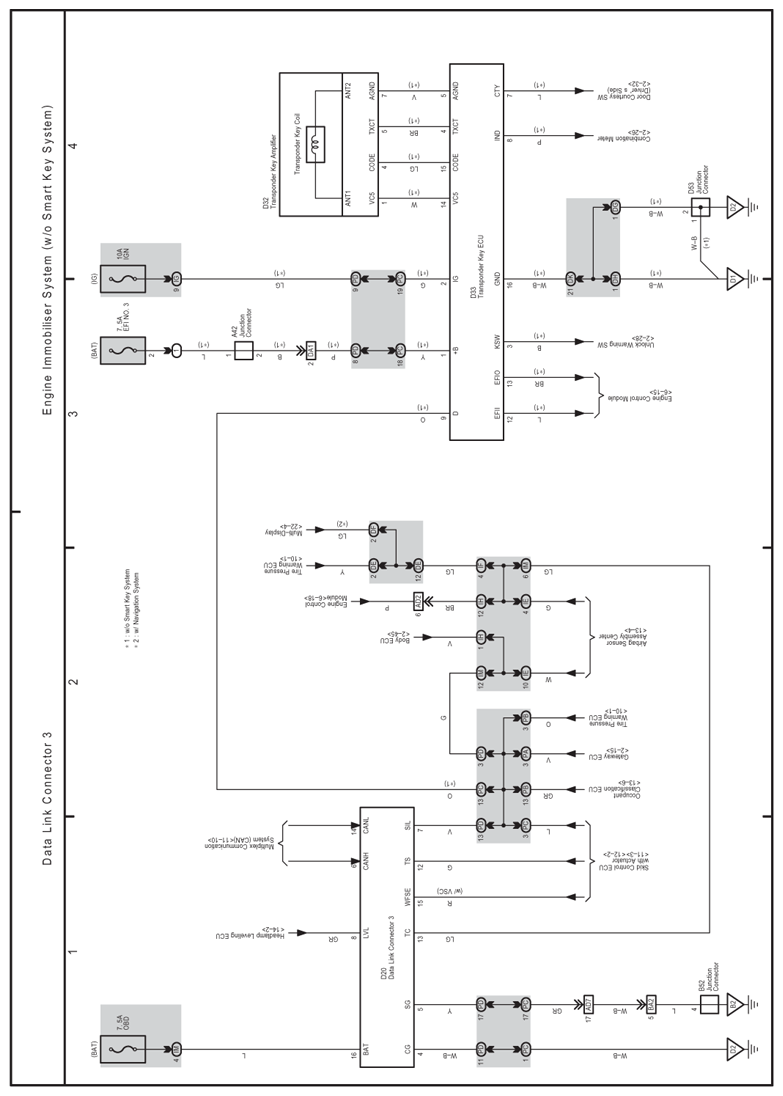

Fig 1: Data Link Connector 3 Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
