ABS (w/ VSC), Multiplex Communication System (AVC-LAN), Multiplex Communication System (CAN), TRAC, VSC

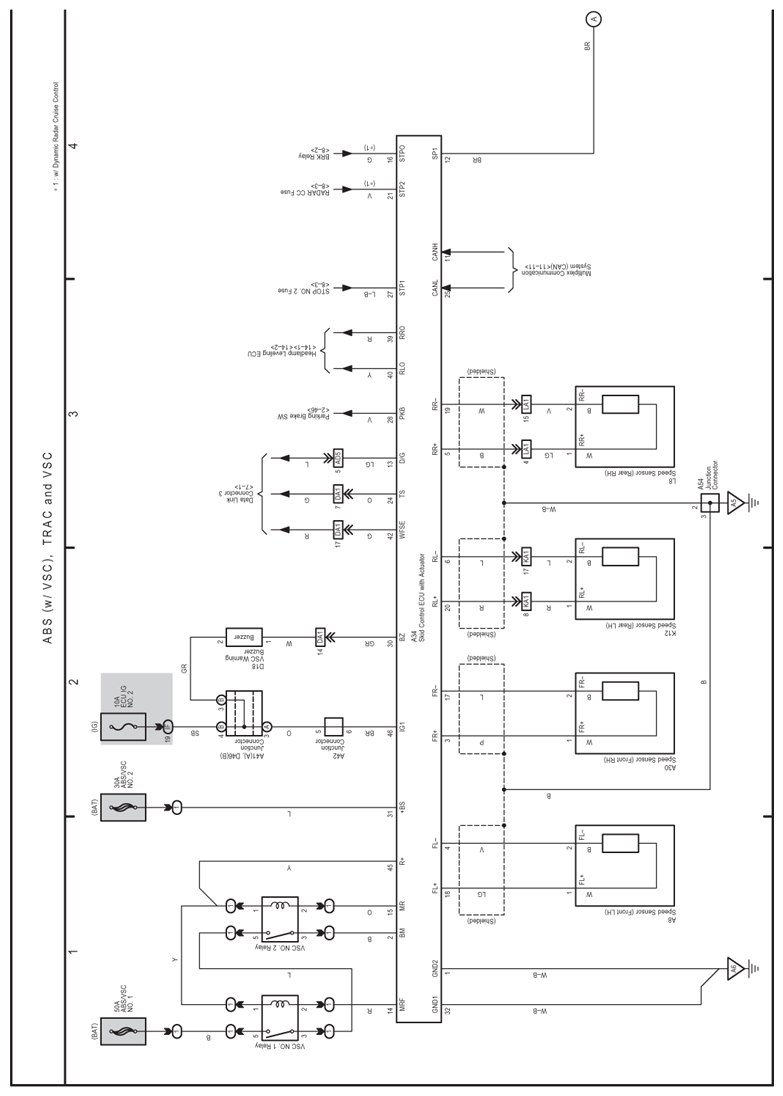

Fig 1: ABS (W/ VSC), TRAC And VSC Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

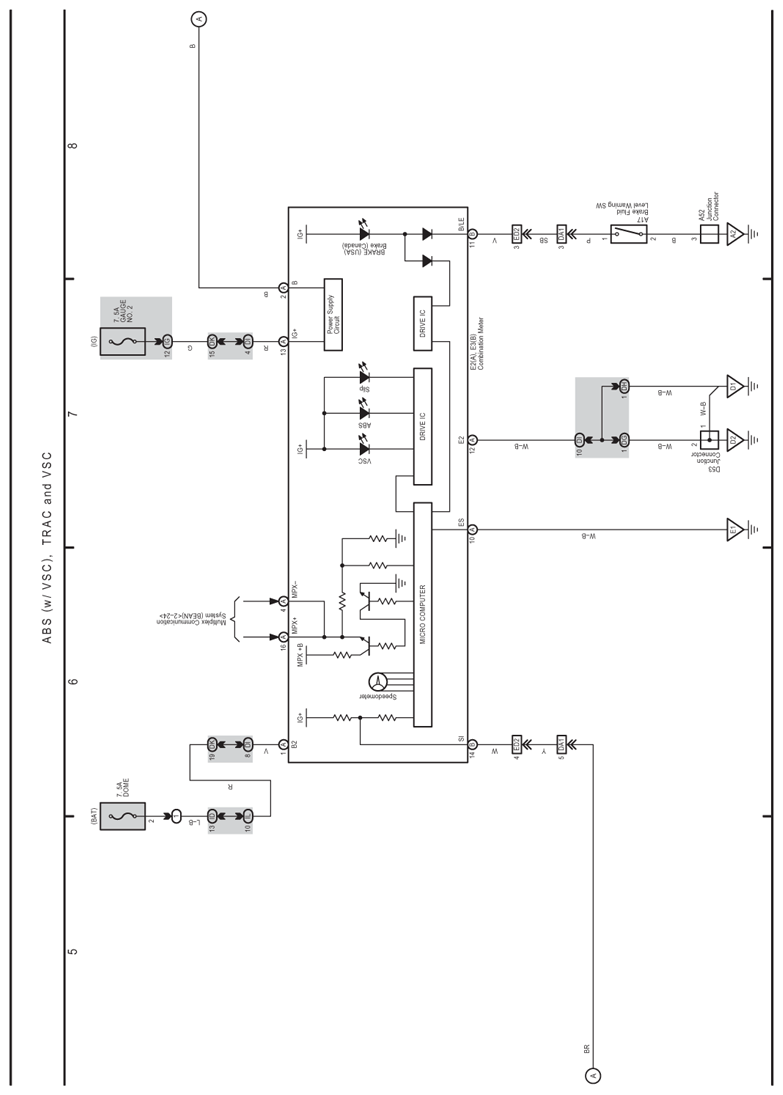

Fig 2: ABS (W/ VSC), TRAC And VSC Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Multiplex Communication System (AVC-LAN) Electrical Wiring Diagram (1 Of 2)

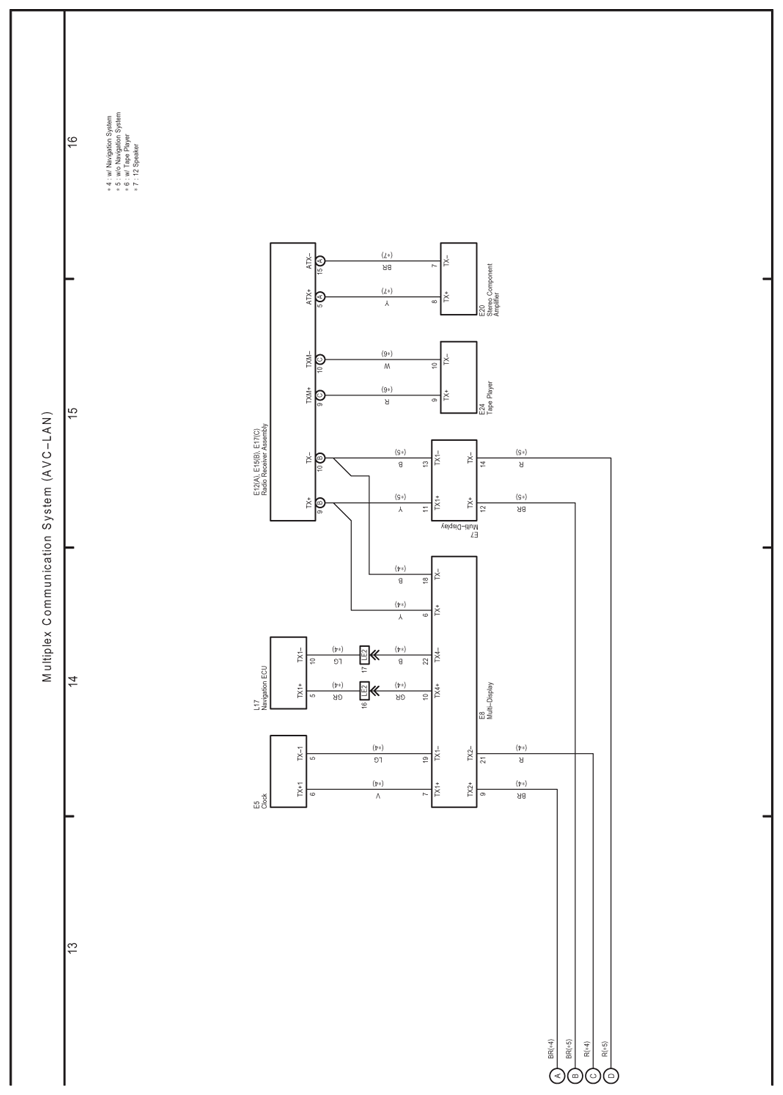

Fig 4: Multiplex Communication System (AVC-LAN) Electrical Wiring Diagram (2 Of 2)
