Driver Side Junction Block

Behind the Combination Meter  (See Figure)

(Inner Circuit : See  DRIVER SIDE J/B INNER CIRCUIT  )

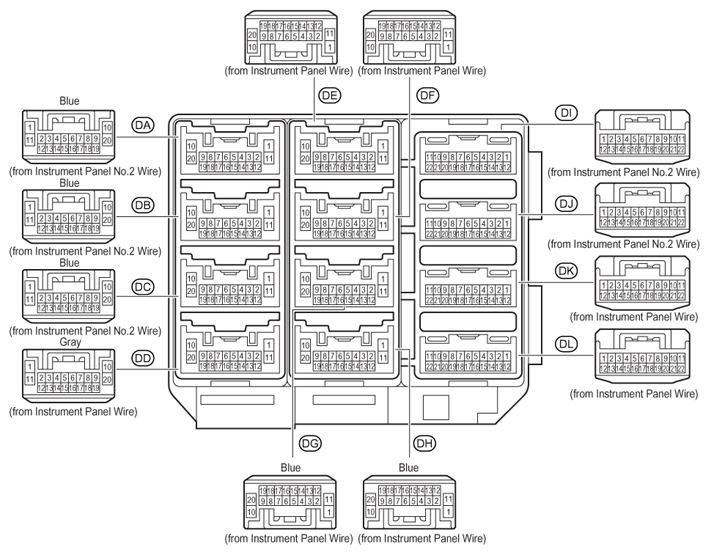

Fig 1: Driver Side J/B Connector Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
