Tire Pressure Warning System

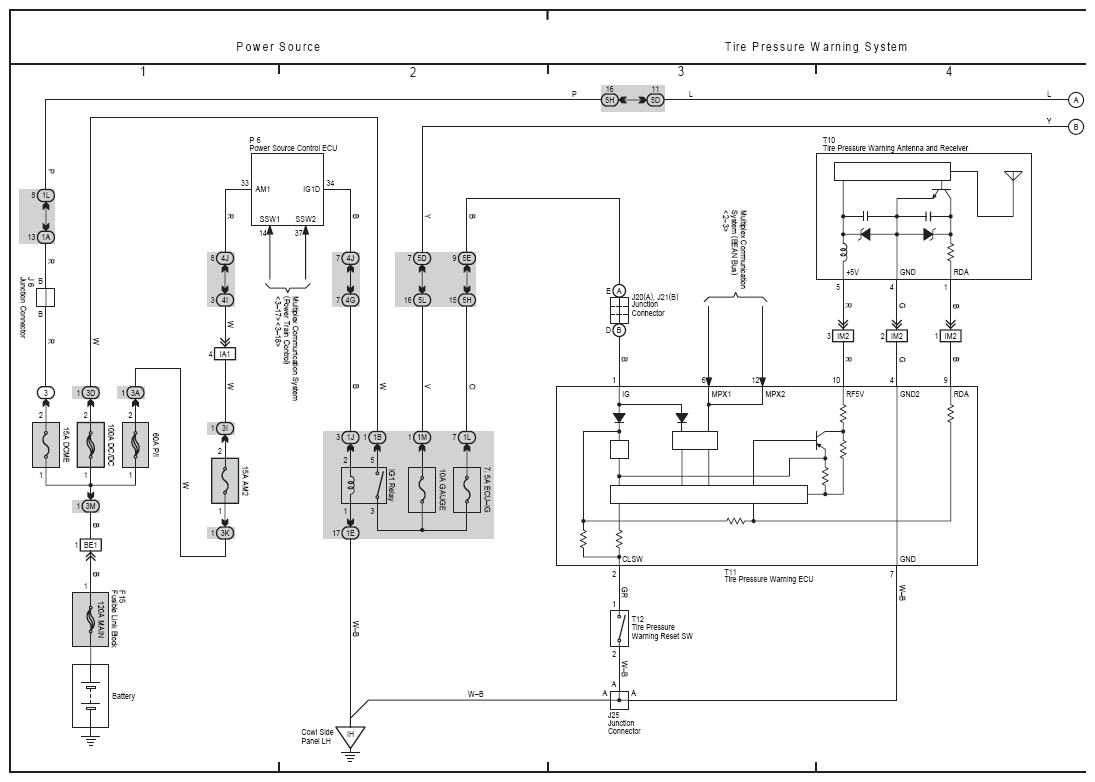

Fig 1: Tire Pressure Warning System Electrical Wiring Diagram (1 Of 2)
G08866624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Tire Pressure Warning System Electrical Wiring Diagram (2 Of 2)
G08866625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
