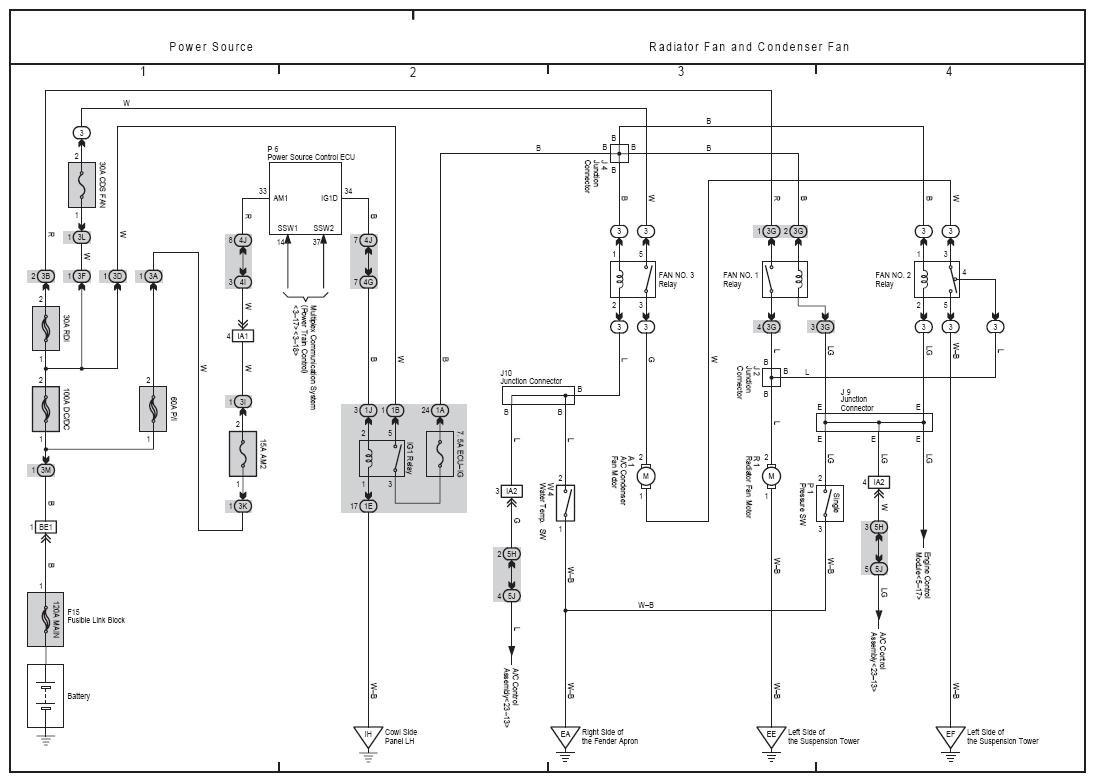

Home >> Toyota >> 2007 >> Prius Touring >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Radiator Fan and Condenser Fan
