Multiplex Communication System (AVC-LAN Bus), Multiplex Communication System (BEAN Bus), Multiplex Communication System (CAN Bus)

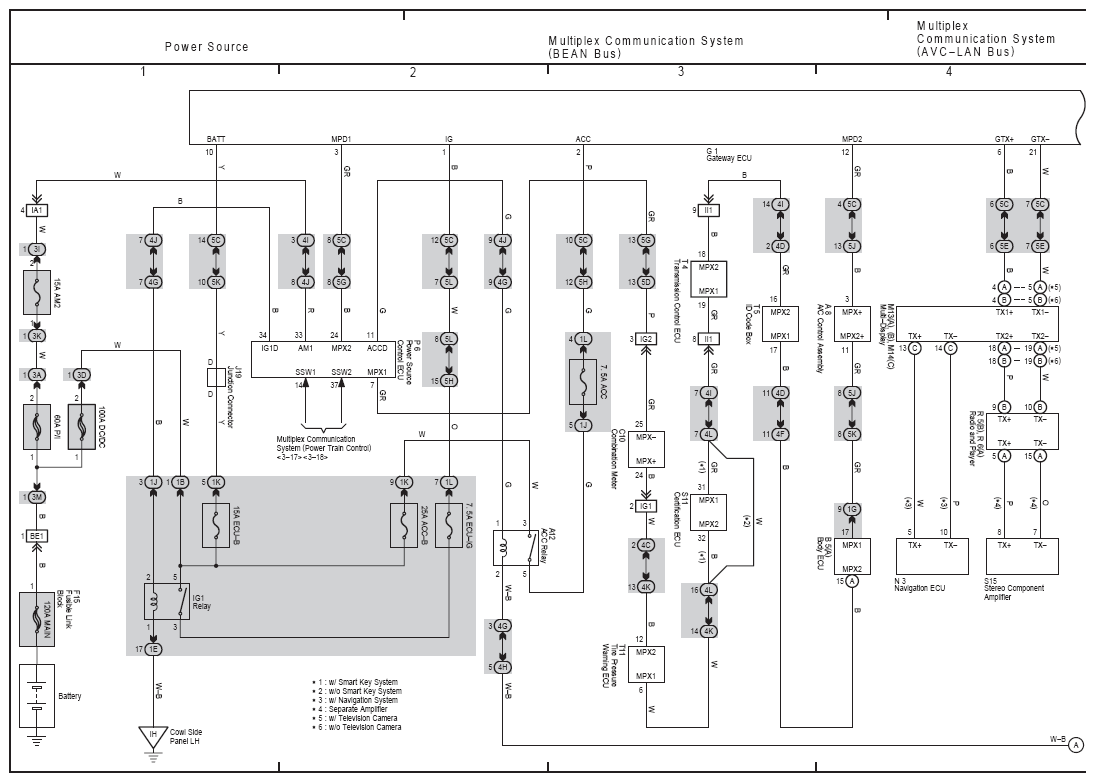

Fig 1: Multiplex Communication System - BEAN Plus Electrical Wiring Diagram (1 Of 2)
G08866572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

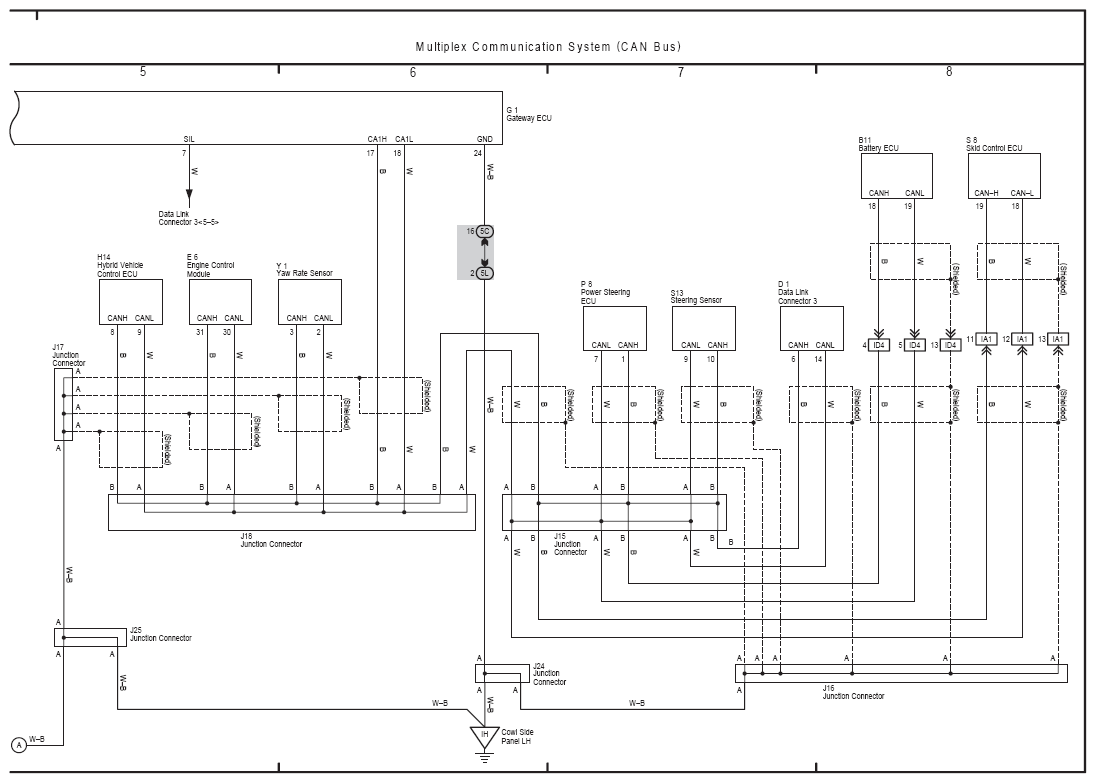

Fig 2: Multiplex Communication System - BEAN Plus Electrical Wiring Diagram (2 Of 2)
G08866573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
