Illumination, Taillight

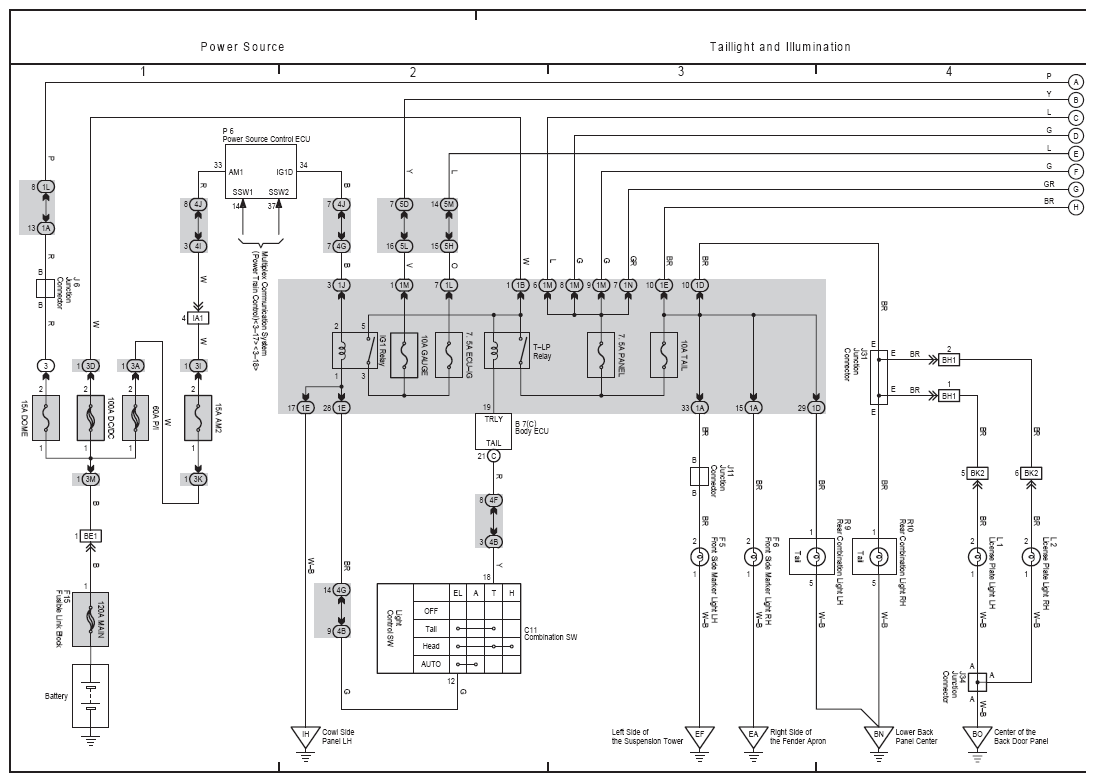

Fig 1: Taillight And Illumination Electrical Wiring Diagram (1 Of 2)
G08866594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

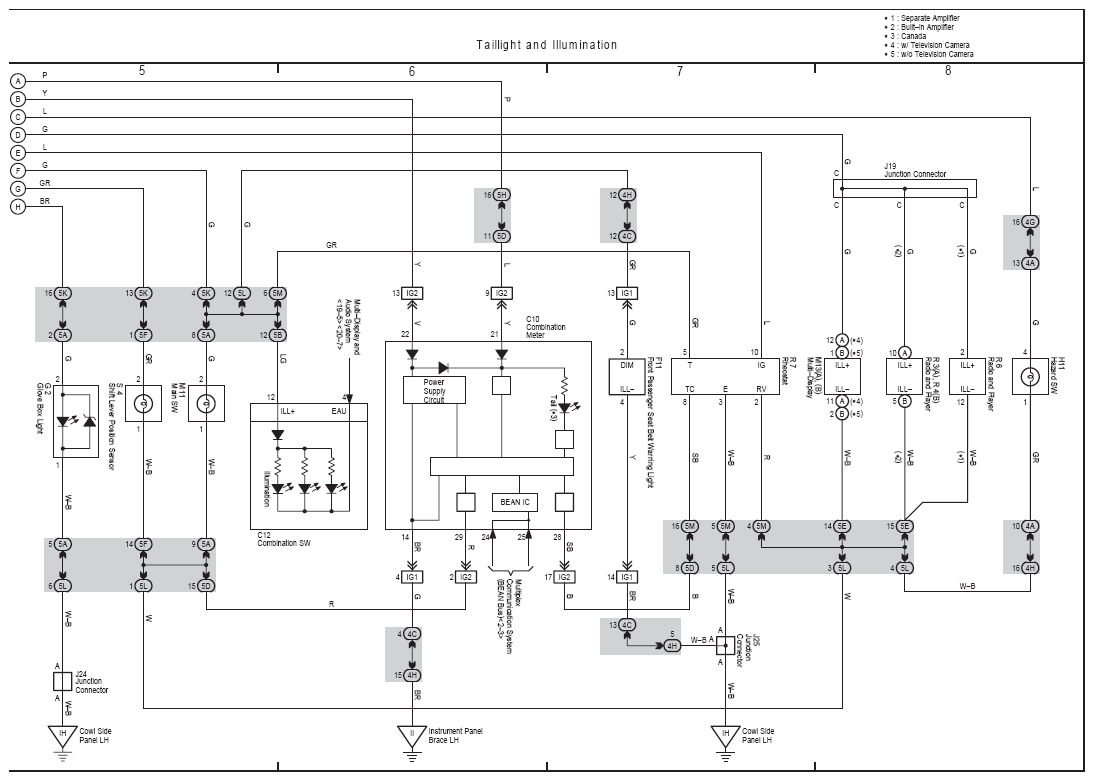

Fig 2: Taillight And Illumination Electrical Wiring Diagram (2 Of 2)
G08866595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
