How To Read This Information

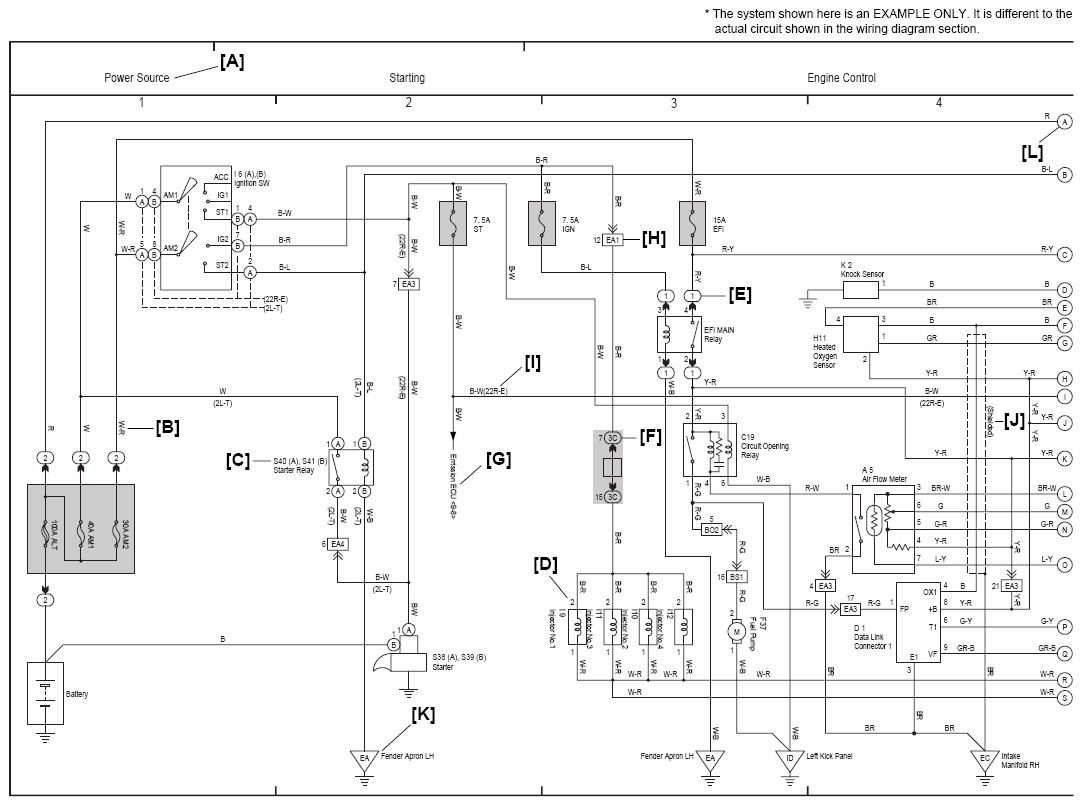

Fig 1: Electrical Wiring Diagram Example
G08866563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

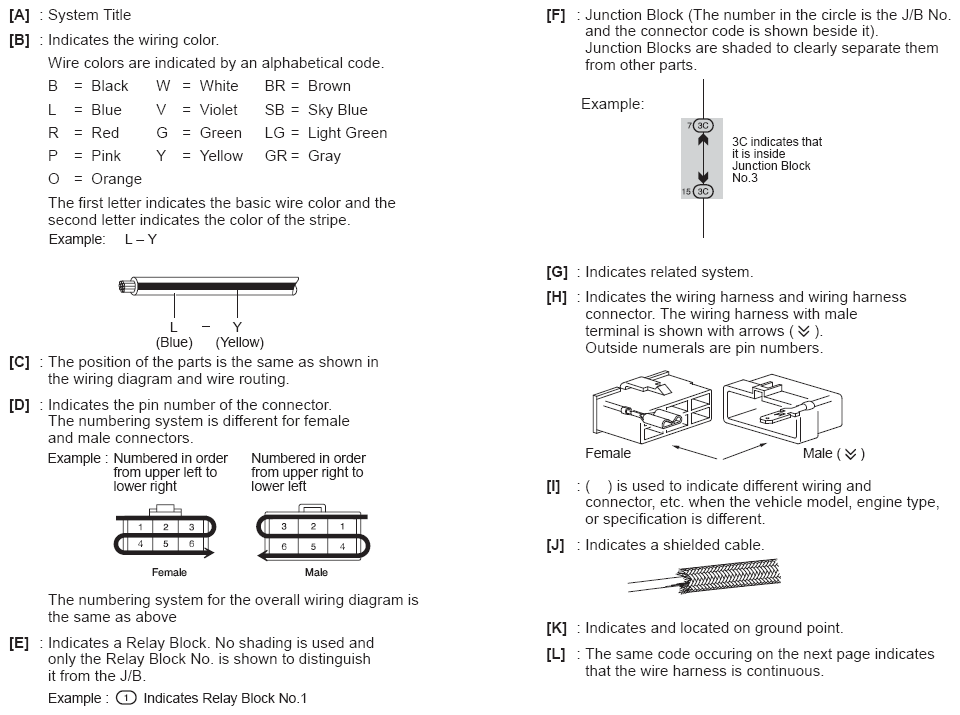

Fig 2: Electrical Wiring Diagram Legend Example
G08866564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
