Headlight Beam Level Control

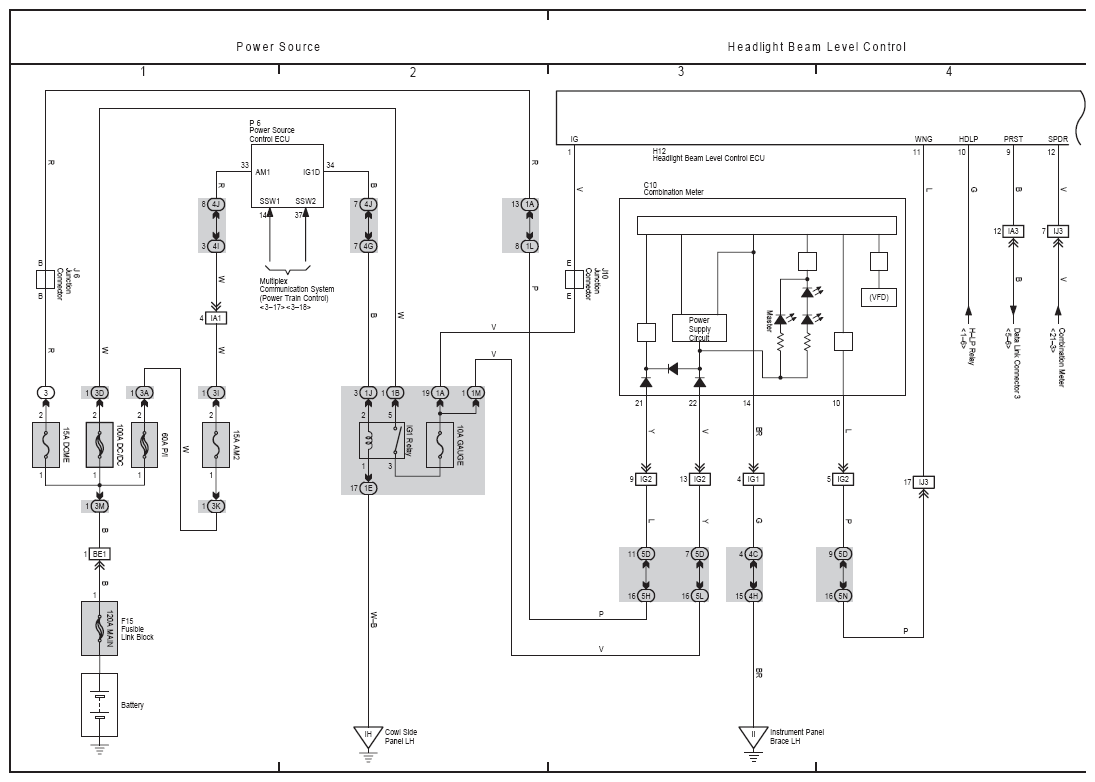

Fig 1: Headlight Beam Level Control Electrical Wiring Diagram (1 Of 2)
G08866590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Headlight Beam Level Control Electrical Wiring Diagram (2 Of 2)
G08866591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
