Engine Control

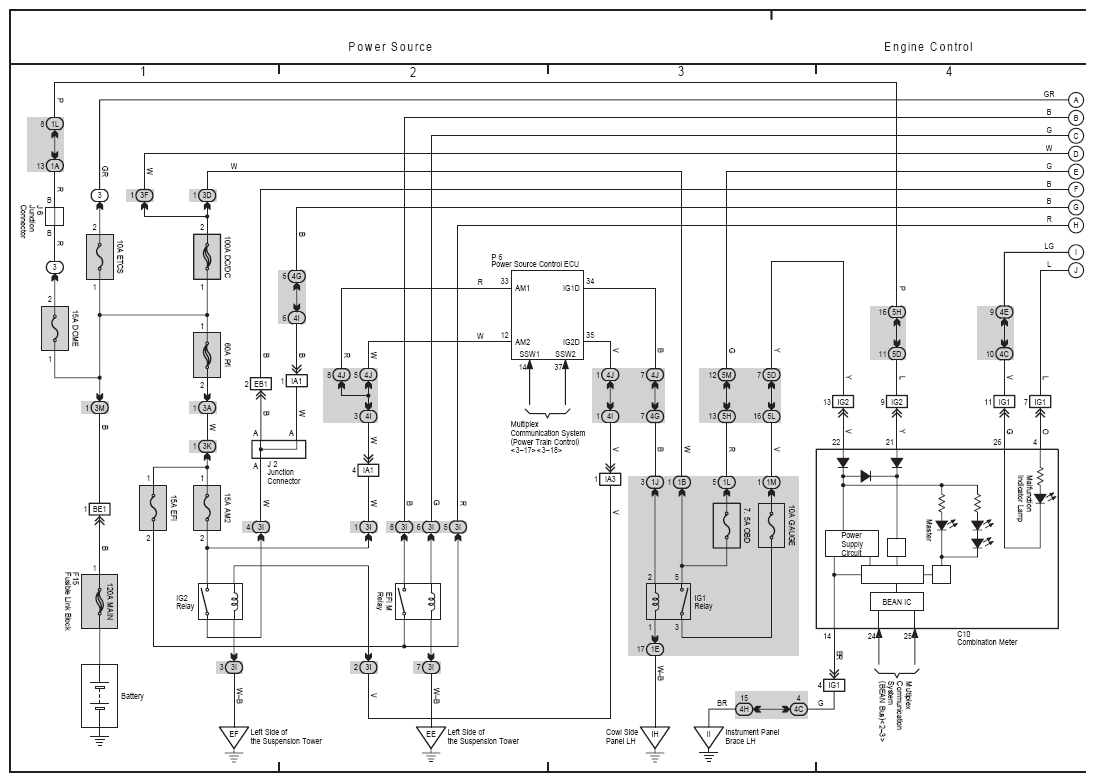

Fig 1: Engine Control Electrical Wiring Diagram (1 Of 5)
G08866585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

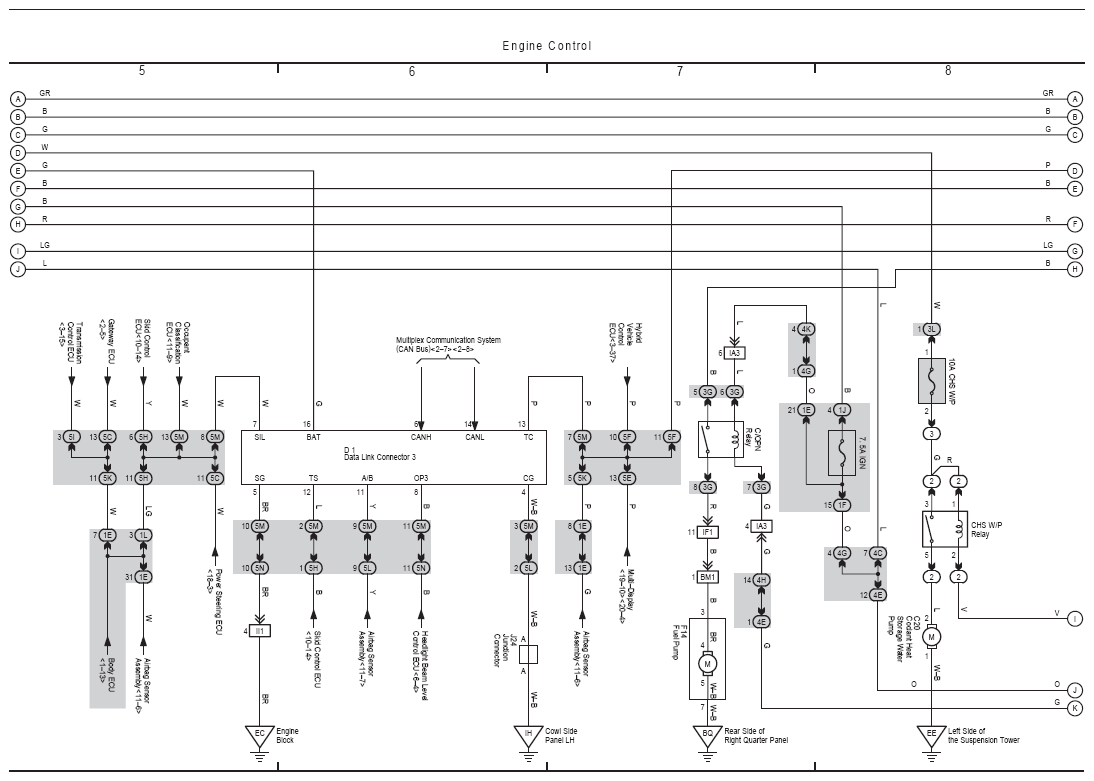

Fig 2: Engine Control Electrical Wiring Diagram (2 Of 5)
G08866586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

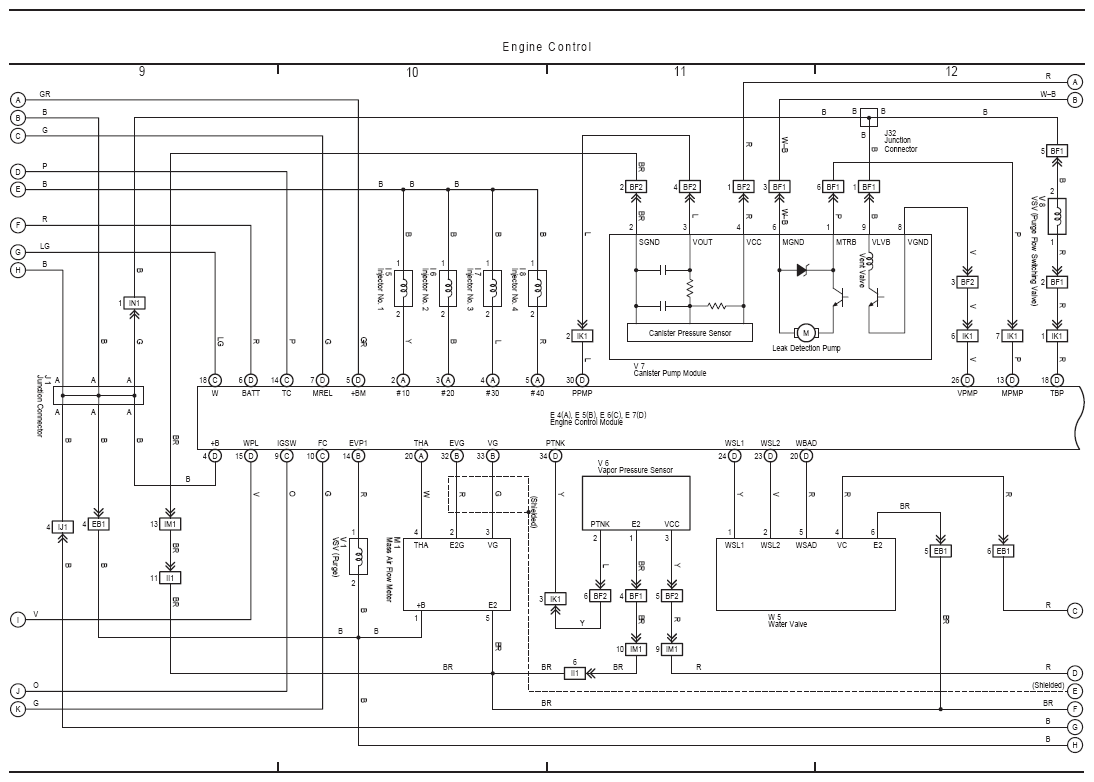

Fig 3: Engine Control Electrical Wiring Diagram (3 Of 5)
G08866587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

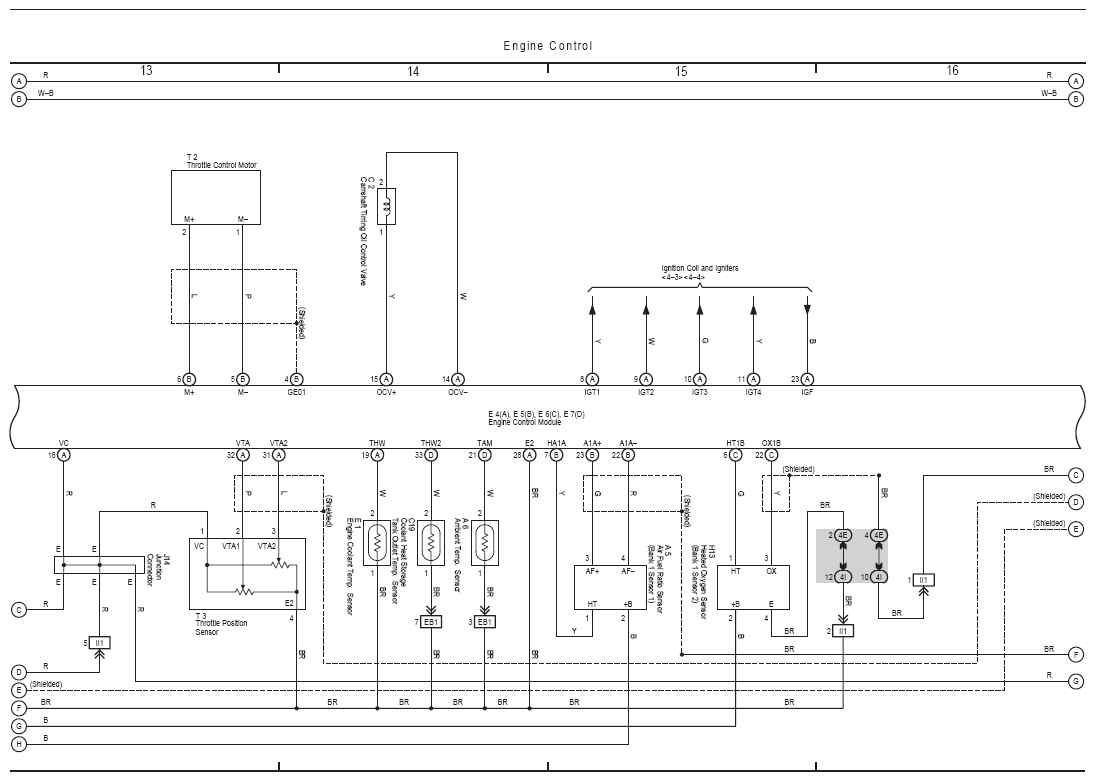

Fig 4: Engine Control Electrical Wiring Diagram (4 Of 5)
G08866588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

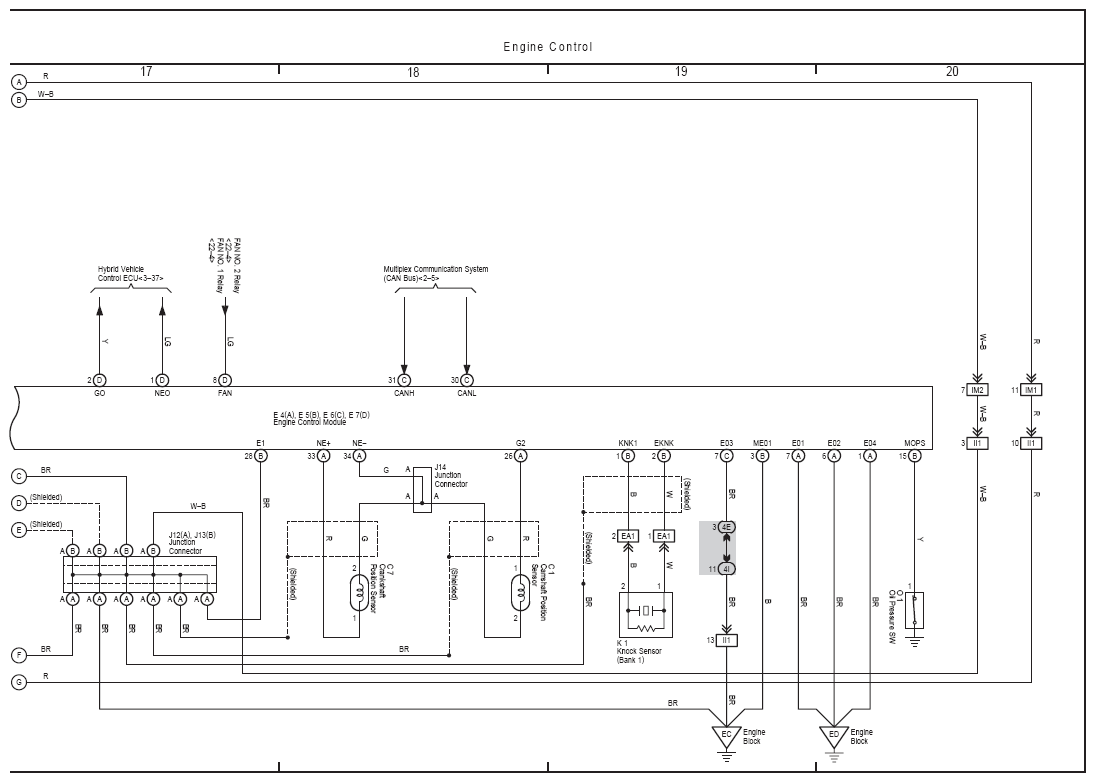

Fig 5: Engine Control Electrical Wiring Diagram (5 Of 5)
G08866589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
