Combination Meter

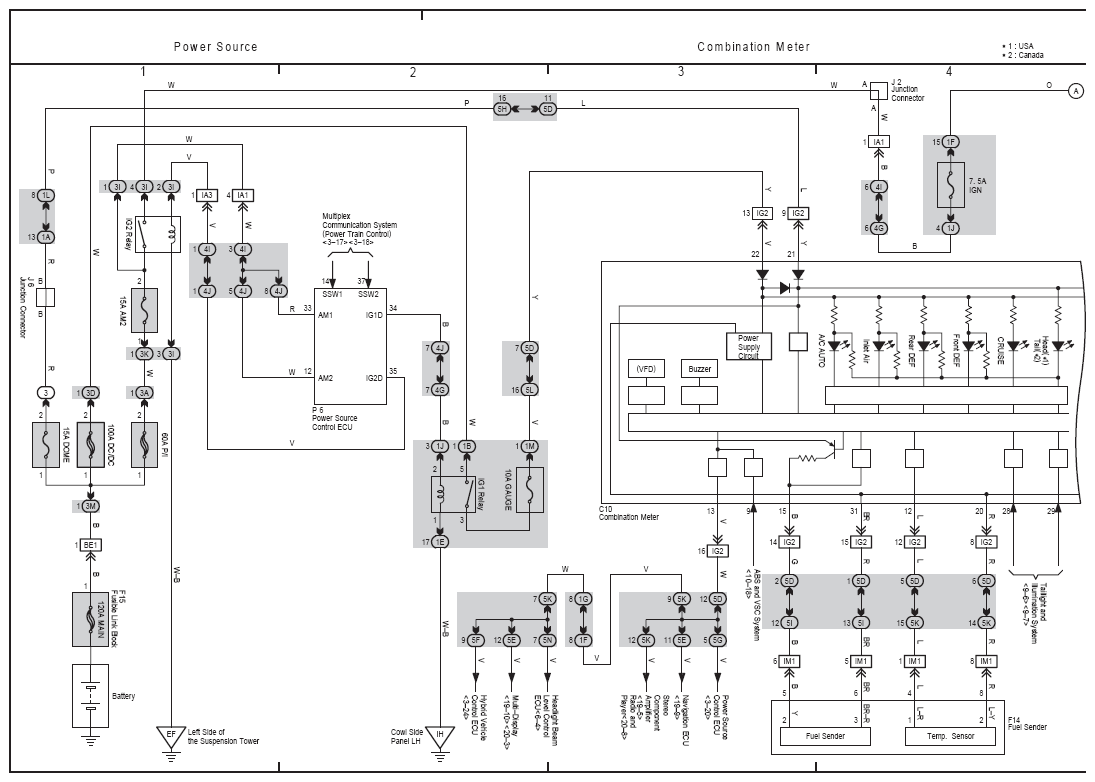

Fig 1: Combination Meter Electrical Wiring Diagram (1 Of 2)
G08866617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

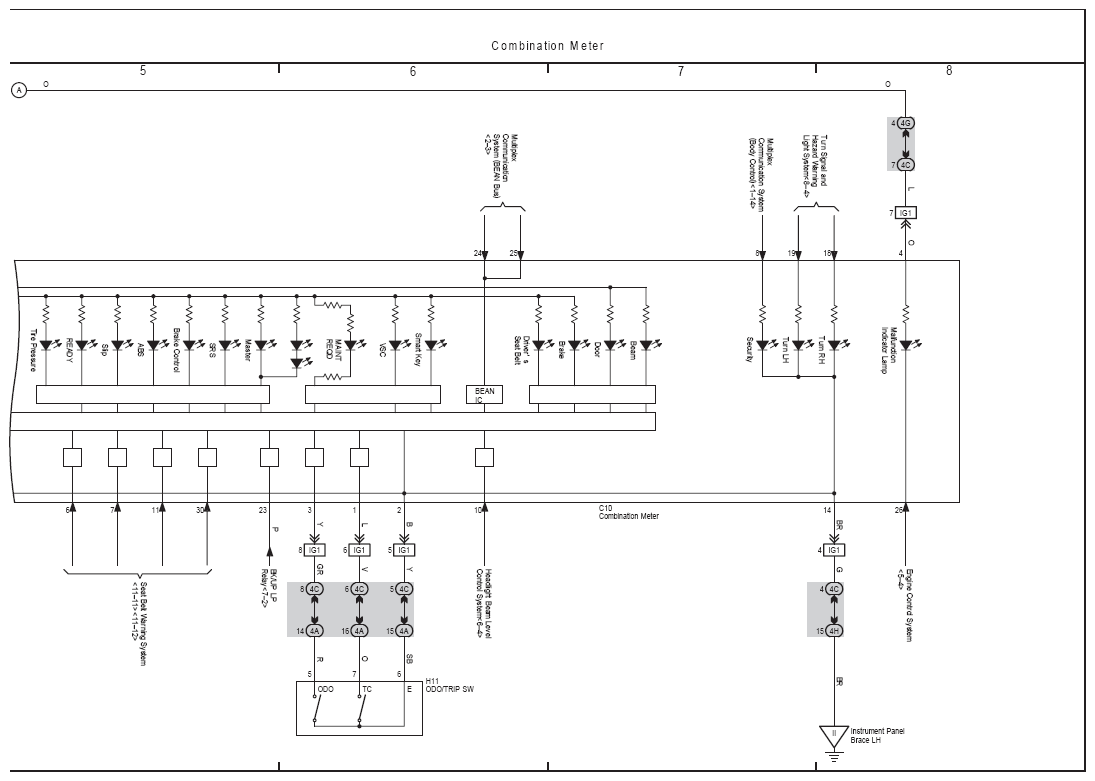

Fig 2: Combination Meter Electrical Wiring Diagram (2 Of 2)
G08866618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
