Back-Up Light, Stop Light

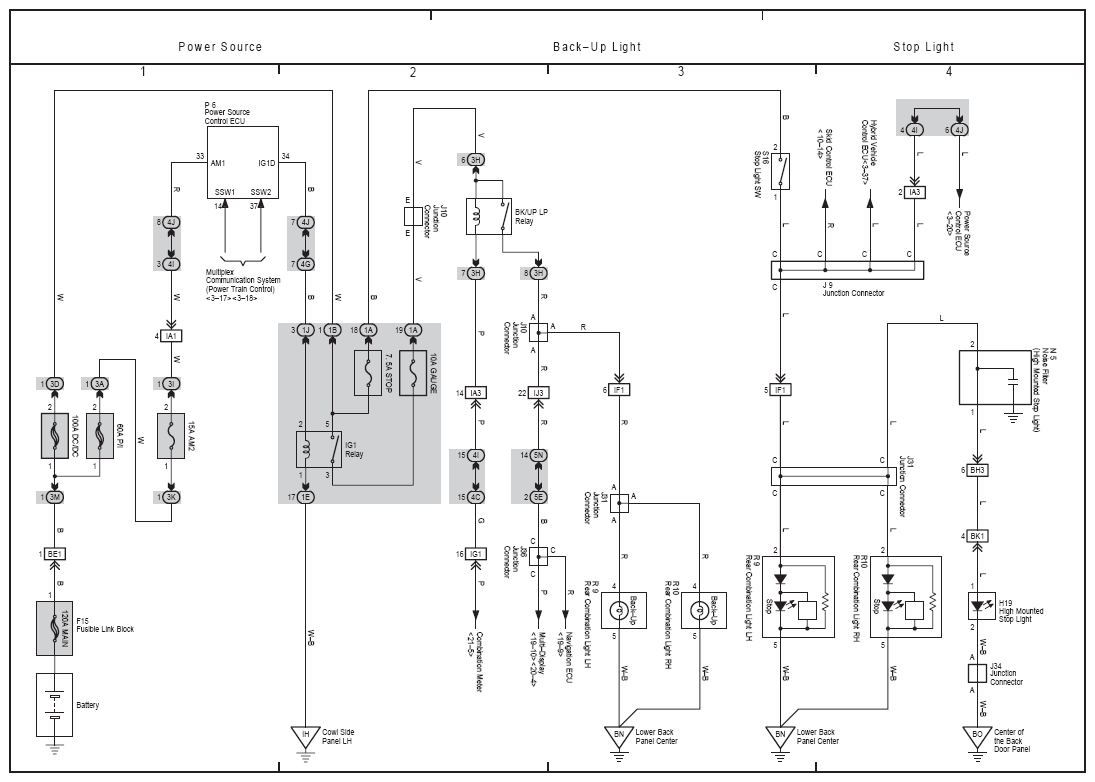

Fig 1: Back-Up Light Electrical Wiring Diagram

G08866592

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
