Automatic Glare-Resistant EC Mirror, Clock, Garage Door Opener

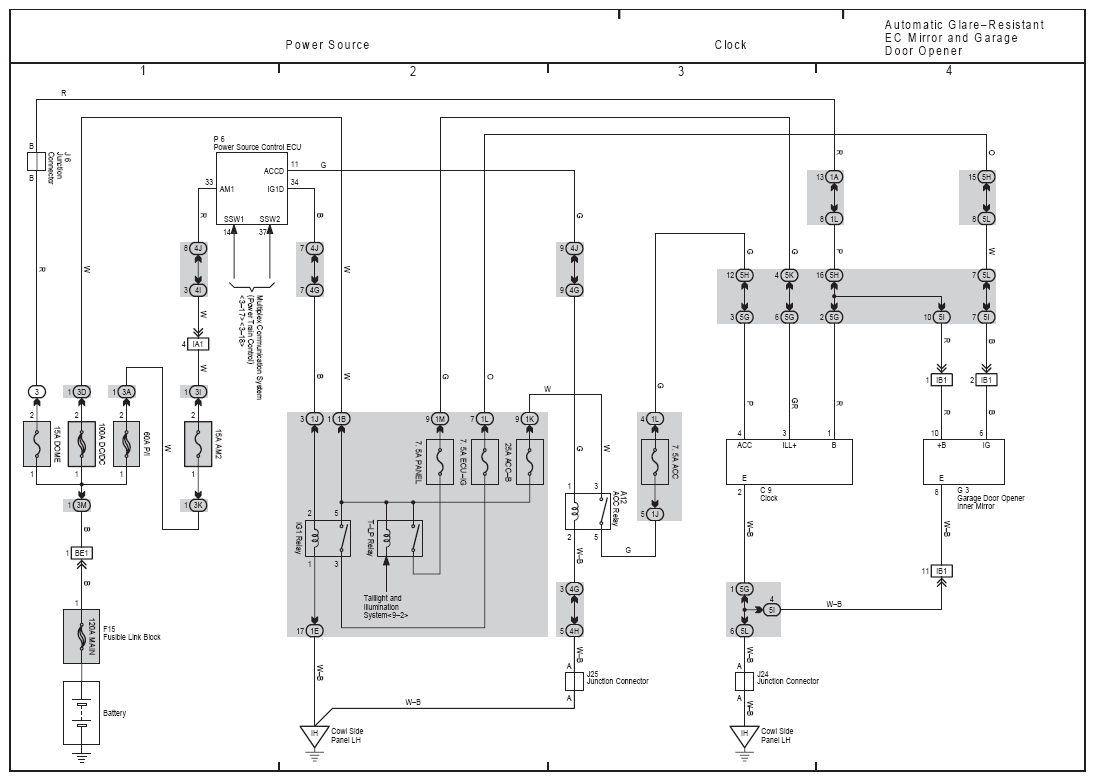

Fig 1: Clock Electrical Wiring Diagram

G08866609

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
