Audio System (Separate Amplifier), Multi-Display (Separate Amplifier)

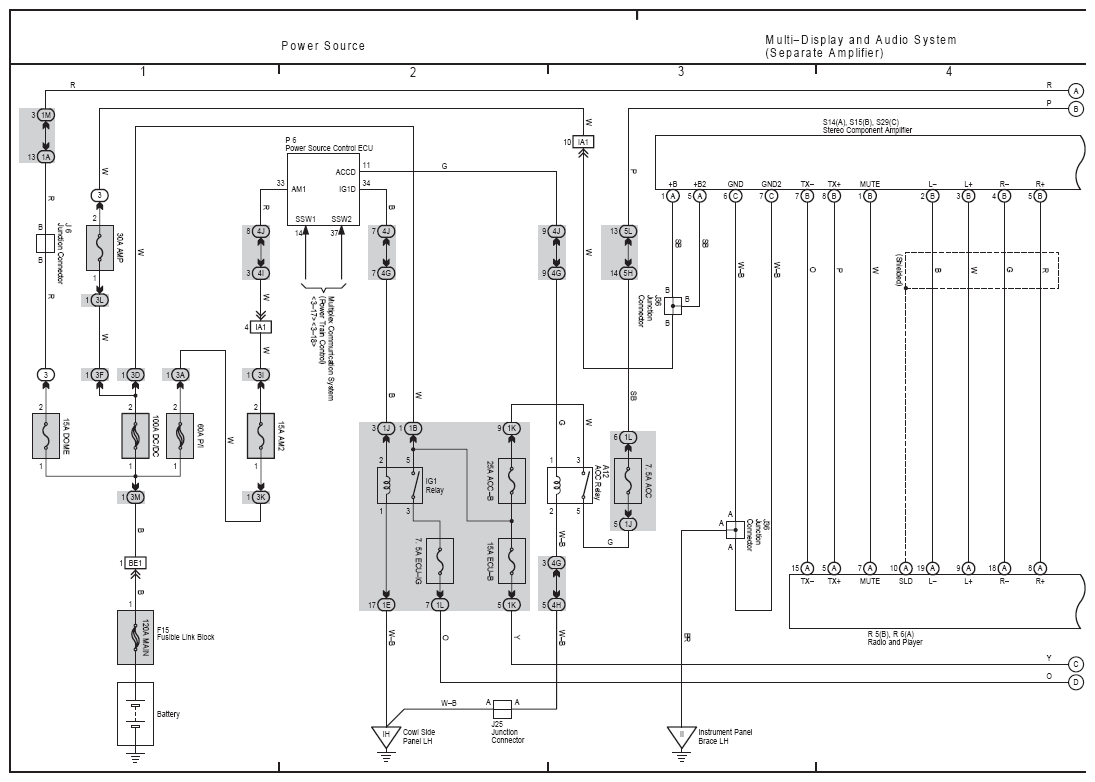

Fig 1: Multi-Display And Audio System (Separate Amplifier) Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

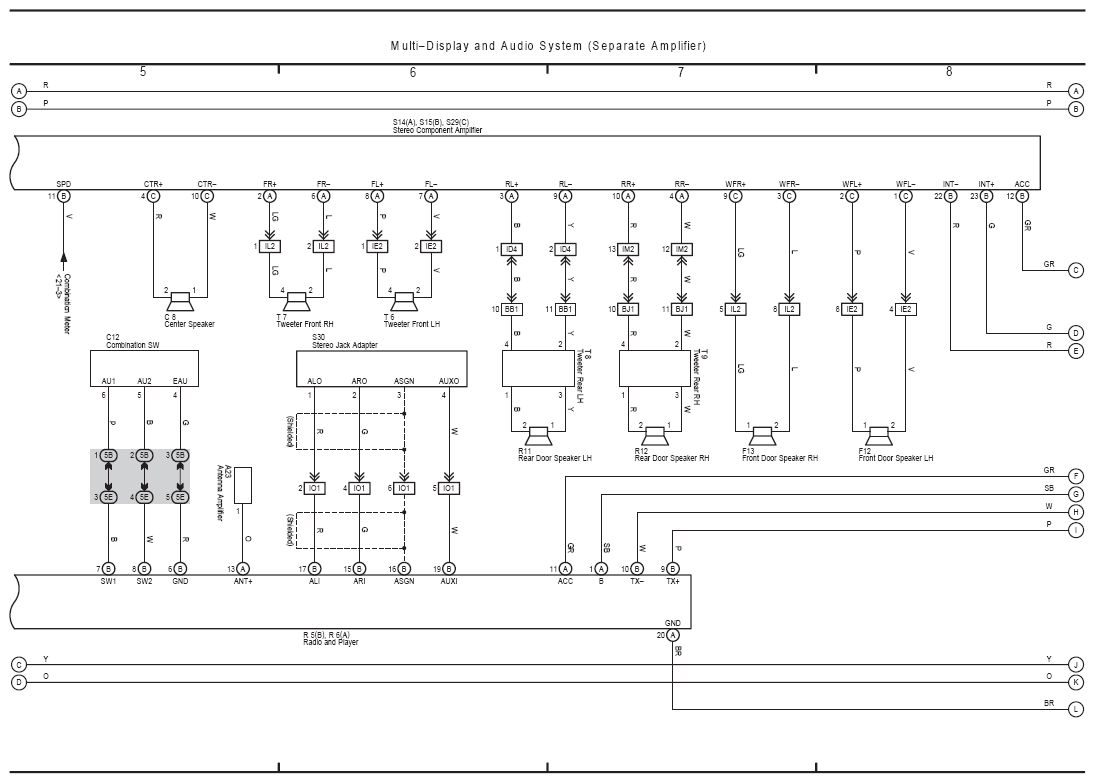

Fig 2: Multi-Display And Audio System (Separate Amplifier) Electrical Wiring Diagram (2 Of 3)

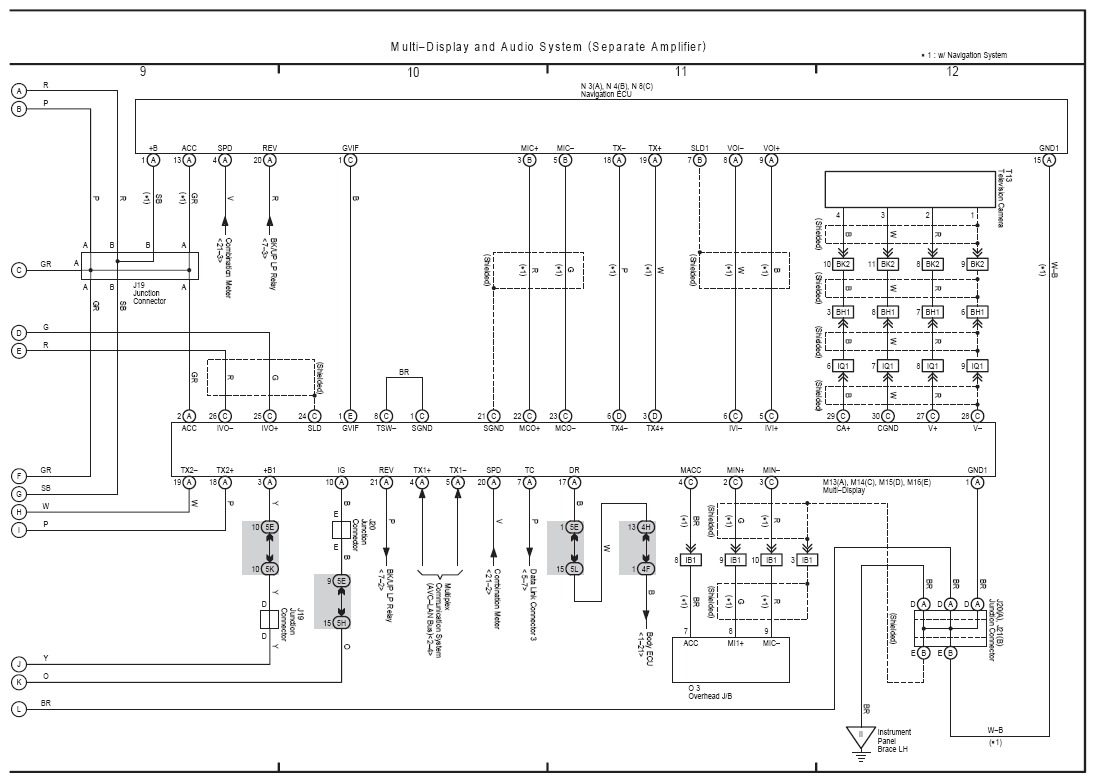

Fig 3: Multi-Display And Audio System (Separate Amplifier) Electrical Wiring Diagram (3 Of 3)
