Audio System (Built-in Amplifier), Multi-Display (Built-in Amplifier)

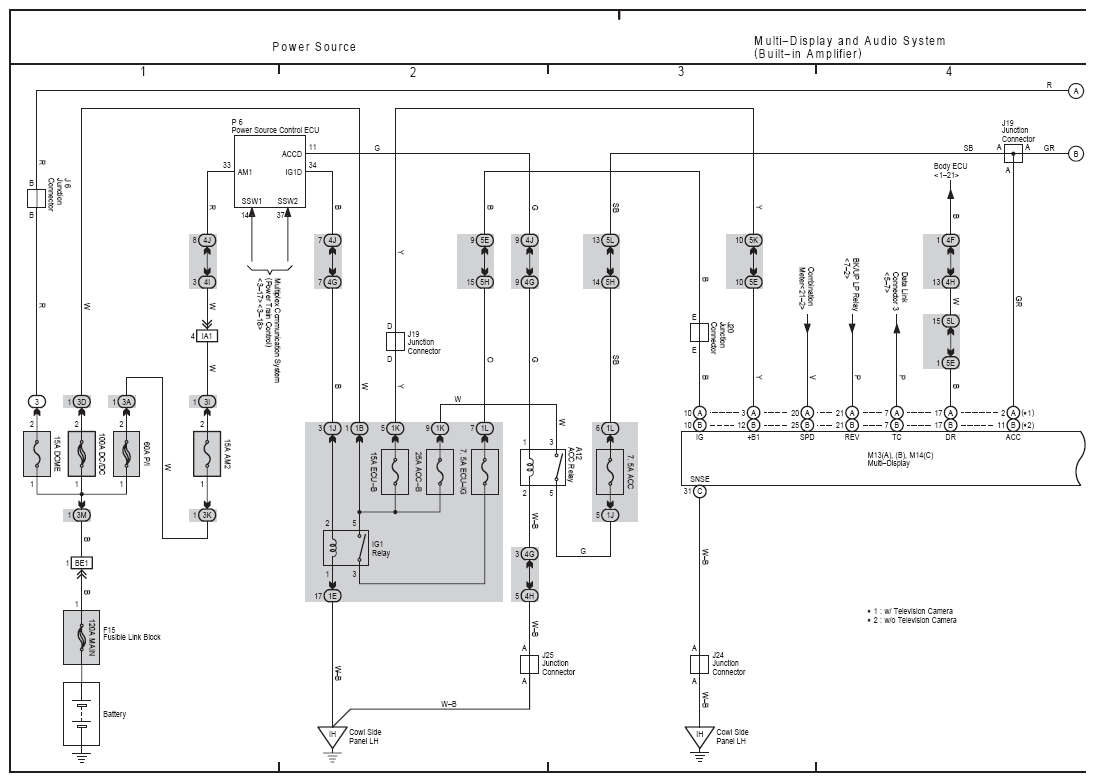

Fig 1: Multi-Display And Audio System (Built-In Amplifier) Electrical Wiring Diagram (1 Of 2)
G08866615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

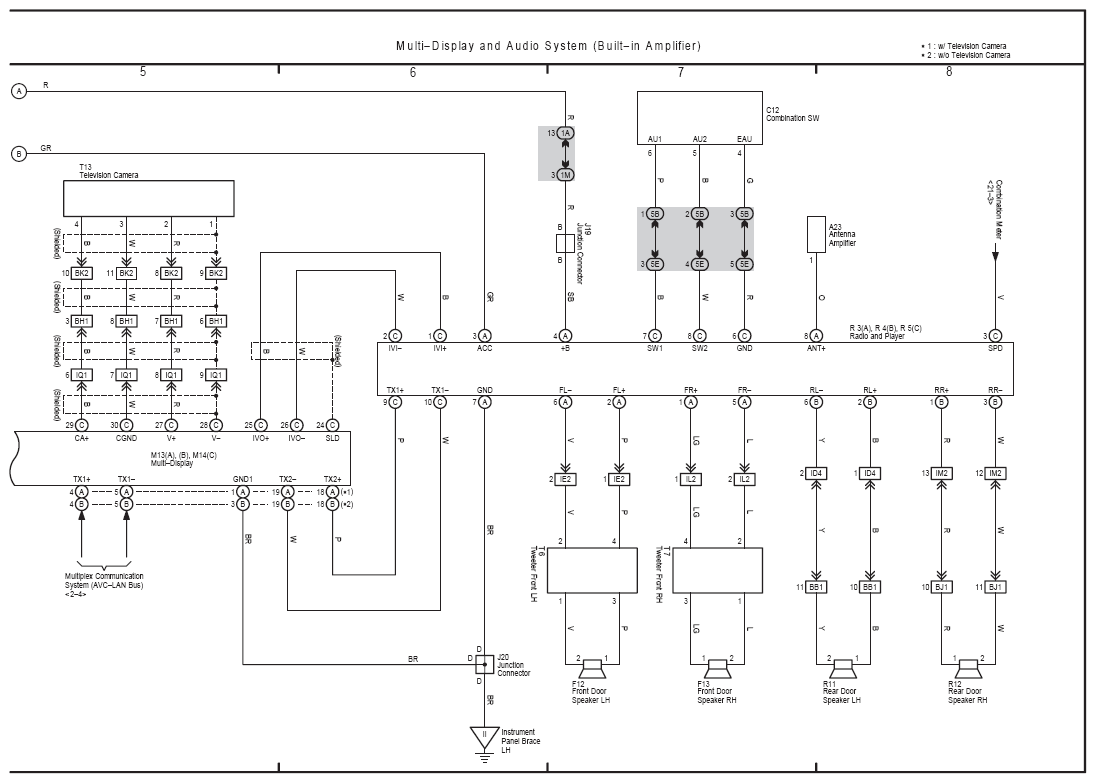

Fig 2: Multi-Display And Audio System (Built-In Amplifier) Electrical Wiring Diagram (2 Of 2)
G08866616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
