Driver Side Junction Block Inner Circuit

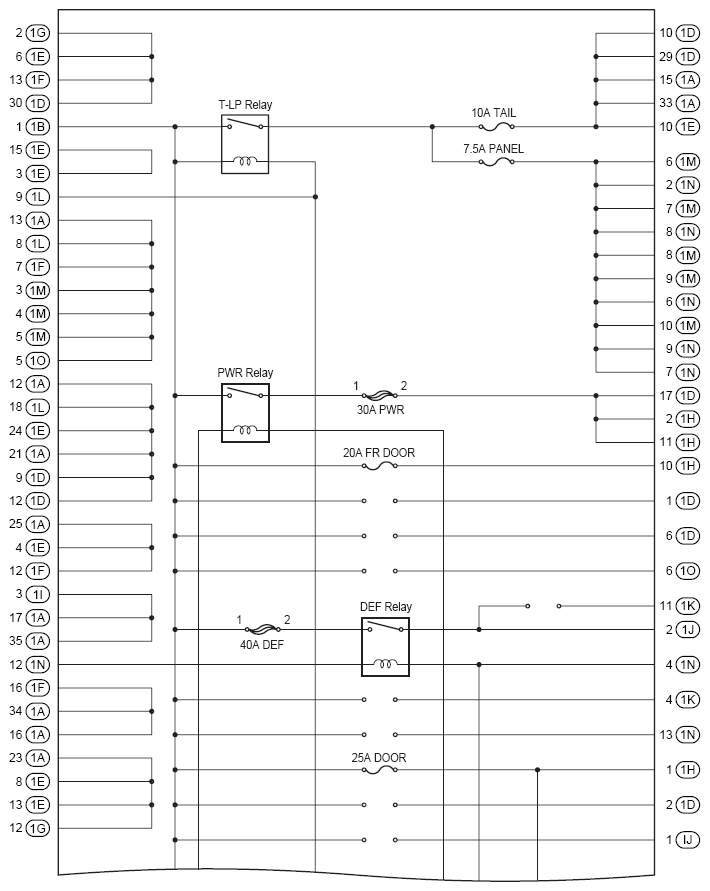

Fig 1: Driver Side J/B Inner Circuit Diagram (1 Of 4) With Relays
G08865961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRIVER SIDE J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
T-LP Relay
PWR Relay
DEF Relay

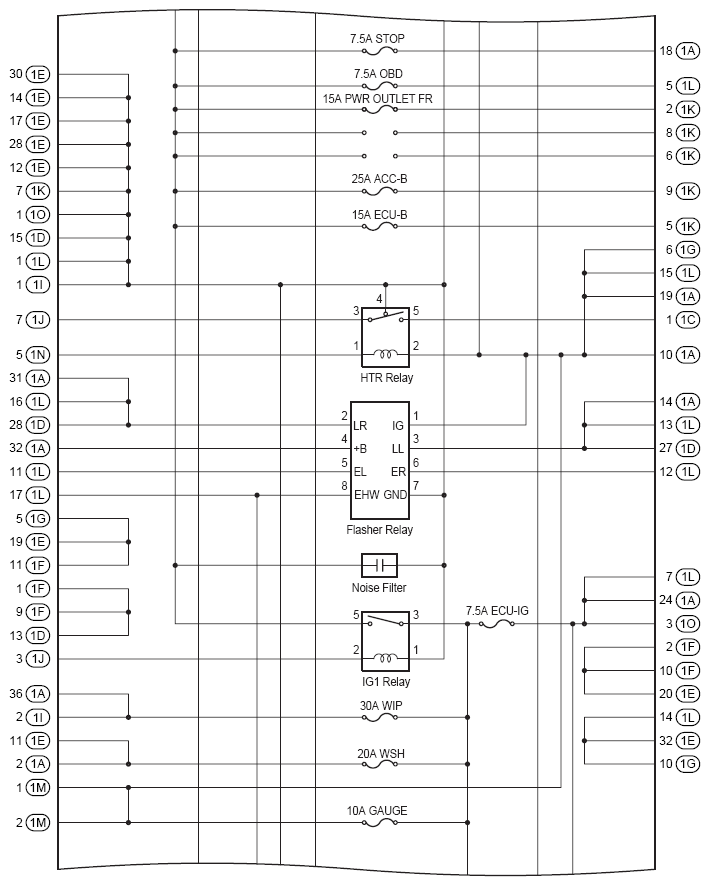

Fig 2: Driver Side J/B Inner Circuit Diagram (2 Of 4)
G08865962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

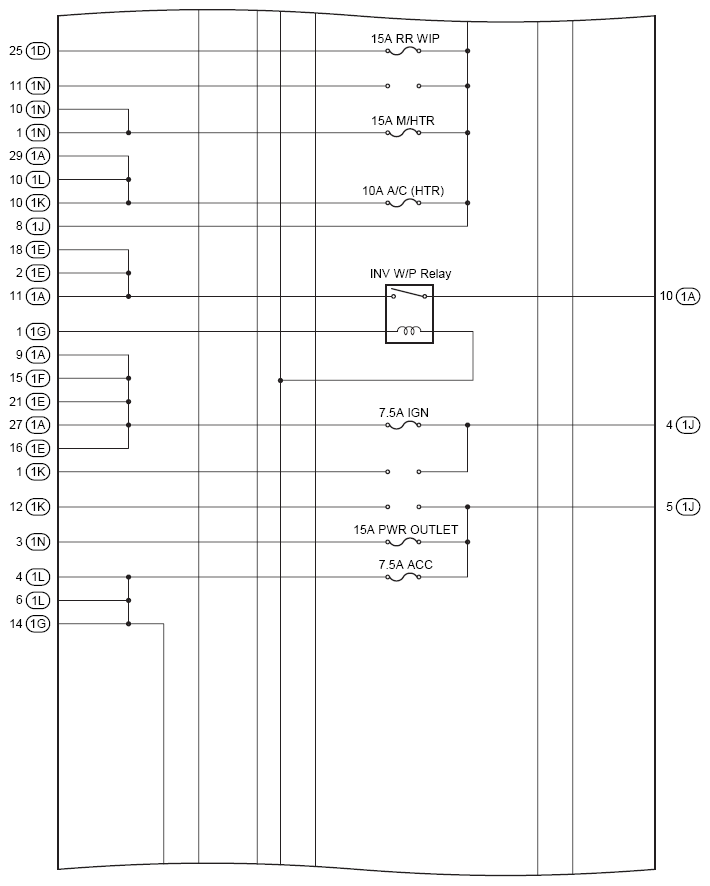

Fig 3: Driver Side J/B Inner Circuit Diagram (3 Of 4) With Relays
G08865963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRIVER SIDE J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
INV W/P Relay

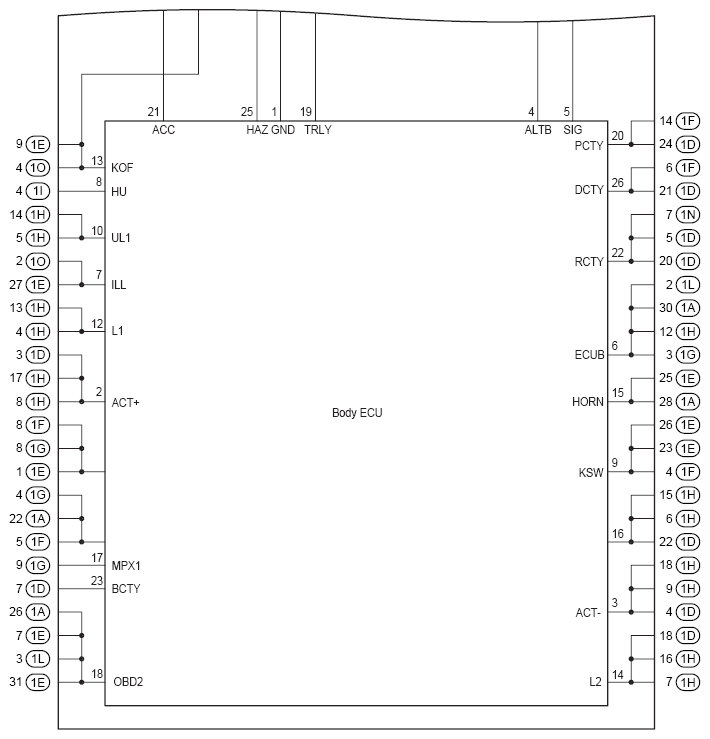

Fig 4: Driver Side J/B Inner Circuit Diagram (4 Of 4)
G08865964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
