Rear Brake Shoe, Wheel Cylinder & Brake Drum: Disassembly

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. DISCONNECT PARKING BRAKE SHOE STRUT SET LH
   1. Using SST, disconnect the spring and parking brake shoe strut set from the brake shoes.

      SST 09703-30011

      NOTE: Be careful not to damage the cylinder dust boot.

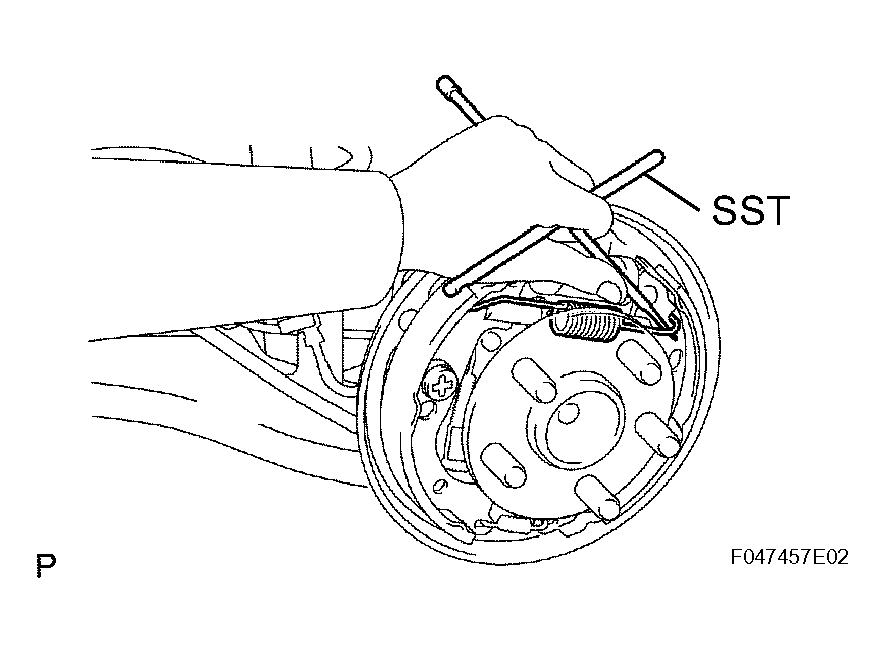

      Fig 1: Disconnecting Parking Brake Shoe Strut Set From Brake Shoes

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE FRONT BRAKE SHOE
   1. Using SST, remove the cup, shoe hold down spring and pin.

      SST 09718-00010

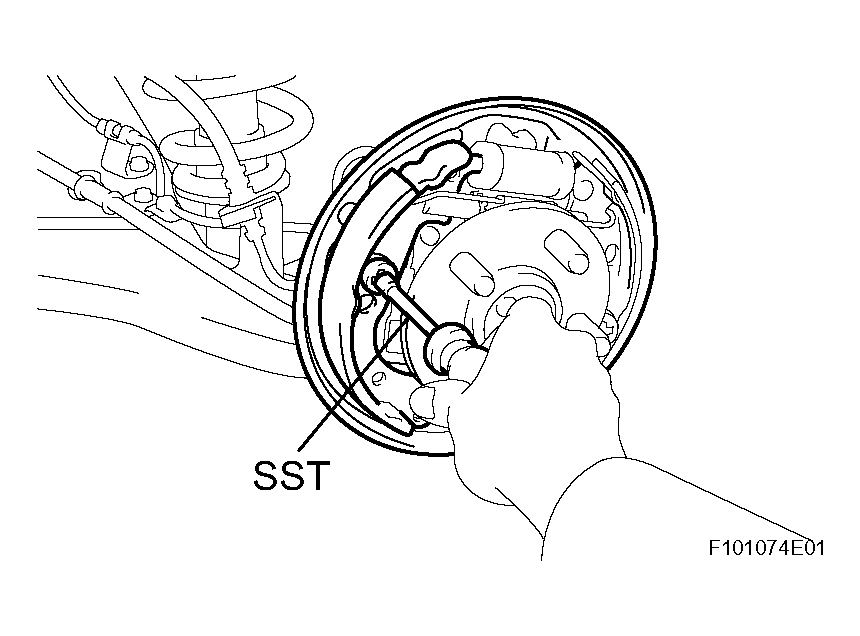

      Fig 2: Removing Cup, Shoe Hold Down Spring And Pin

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the front brake shoe and tension spring.
3. REMOVE PARKING BRAKE SHOE STRUT SET LH
   1. Remove the parking brake shoe strut set from the rear brake shoe.
4. REMOVE REAR BRAKE AUTOMATIC ADJUST LEVER LH
   1. Remove the rear brake automatic adjust lever tension spring and the rear brake automatic adjust lever.

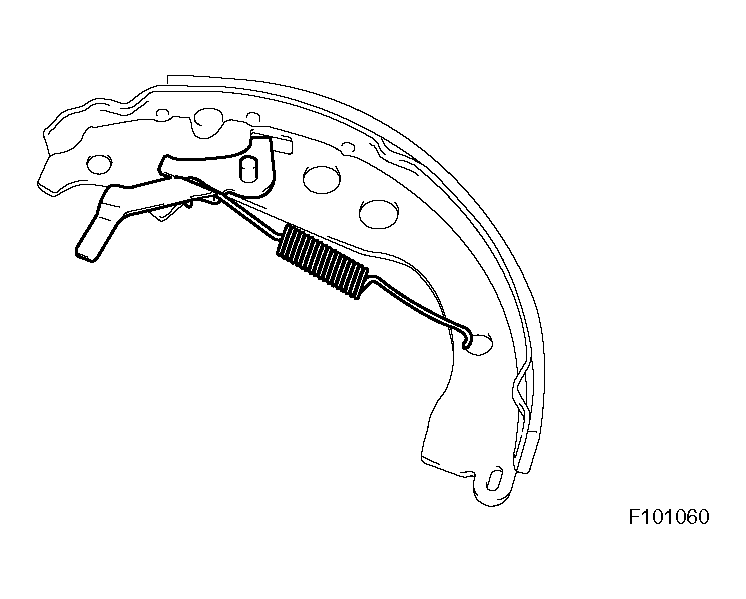

      Fig 3: Identifying Rear Brake Automatic Adjust Lever Tension Spring And Rear Brake Automatic Adjust Lever

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE REAR BRAKE SHOE
   1. Remove the tension spring from the rear brake shoe.
   2. Using SST, remove the cup, shoe hold down spring and pin.

      SST 09718-00010

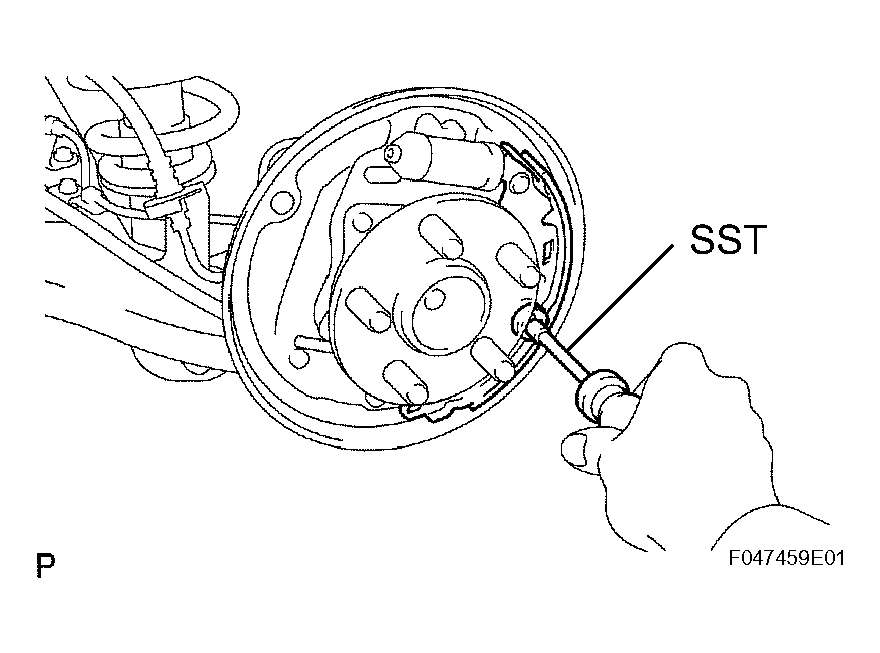

      Fig 4: Removing Cup, Shoe Hold Down Spring And Pin

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using needle-nose pliers, disconnect the parking brake cable, and remove the rear brake shoe.

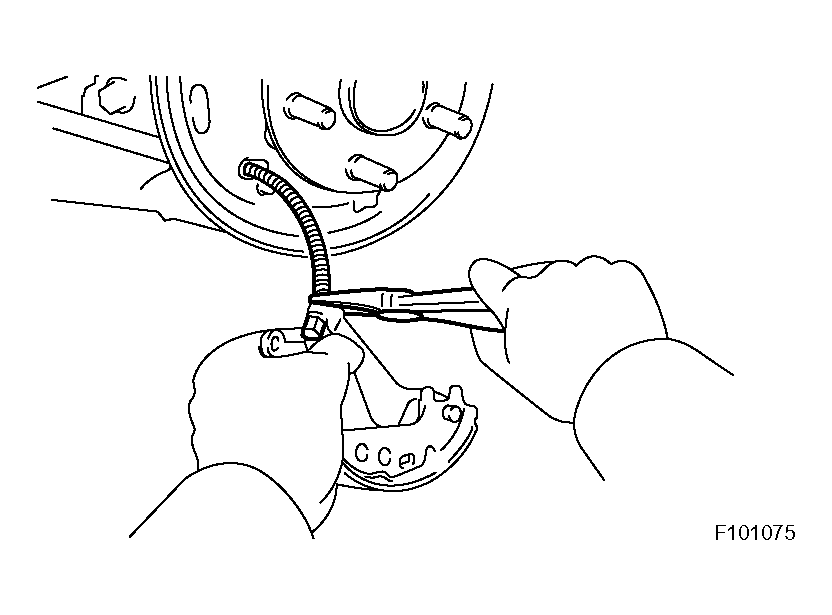

      Fig 5: Removing Parking Brake Cable & Rear Brake Shoe

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE REAR BRAKE PARKING BRAKE SHOE LEVER SUB-ASSEMBLY
   1. Using a screwdriver, remove the C-washer and parking brake shoe lever.

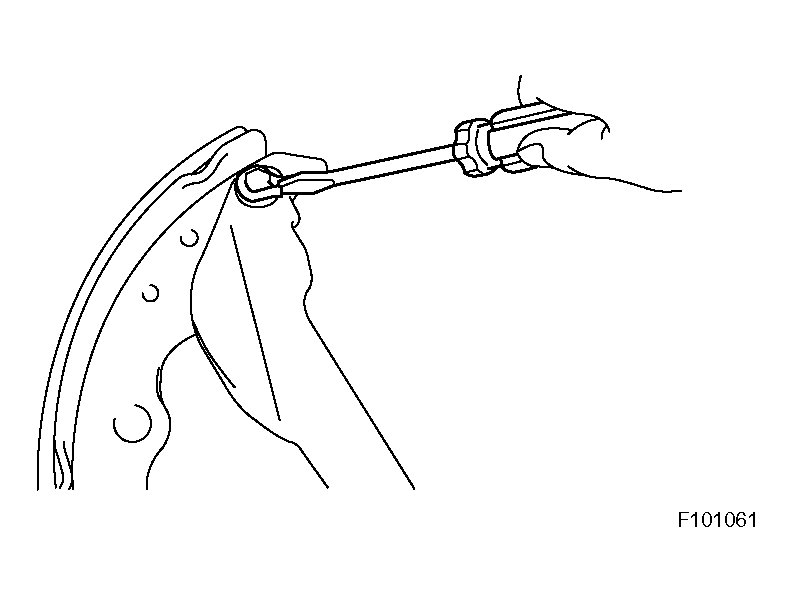

      Fig 6: Removing C-Washer And Parking Brake Shoe Lever

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE FRONT OR UPPER REAR WHEEL BRAKE CYLINDER ASSEMBLY LH
   1. Using SST, disconnect the brake line.

      SST 09023-00101

      HINT:

      Use a container to catch the brake fluid.

   2. Remove the bolt and the rear wheel brake cylinder.

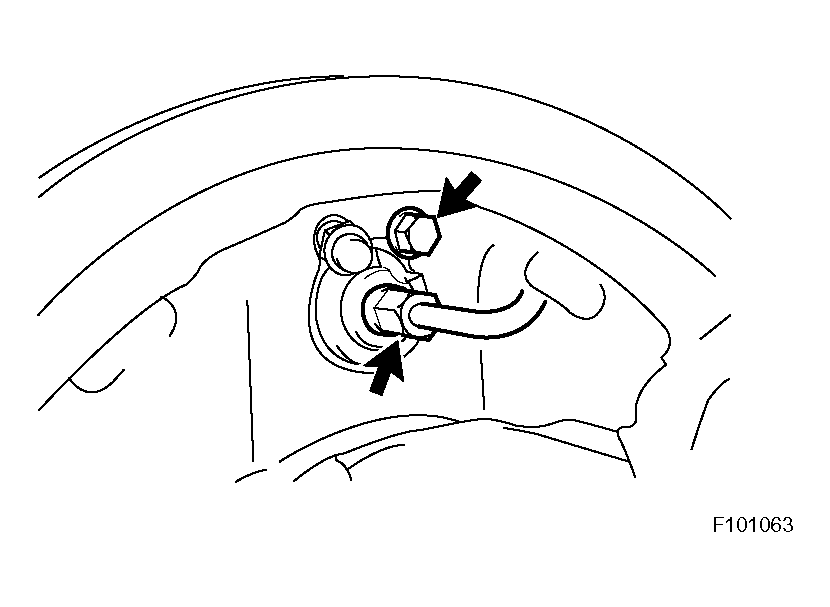

      Fig 7: Removing Rear Wheel Brake Cylinder

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE REAR WHEEL CYLINDER CUP KIT
   1. Remove the 2 cylinder dust boots from the rear wheel brake cylinder.
   2. Remove the 2 pistons and the compression spring.
   3. Remove the 2 wheel cylinder cups from each piston.
9. REMOVE REAR DRUM BRAKE BLEEDER PLUG
   1. Remove the rear drum bleeder plug from the rear wheel cylinder.
