Brake Stroke Simulator Cylinder: Removal

REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
1. Remove the windshield wiper motor and link (see REMOVAL ).
  HINT:

  Refer to the procedures from the removal of the front wiper arm LH/RH up until the removal of the windshield wiper motor and link assembly.
SET BRAKE CONTROL (ECB) OFF (See REMOVAL )
REMOVE OUTER FRONT COWL TOP PANEL SUBASSEMBLY (See REMOVAL )
DRAIN BRAKE FLUID
NOTE: Wash brake fluid off immediately if it adheres to any painted surface.
REMOVE BRAKE STROKE SIMULATOR CYLINDER SUB-ASSEMBLY
1. Using SST, disconnect the 2 brake tubes from the brake simulator cylinder.
  SST 09023-00101

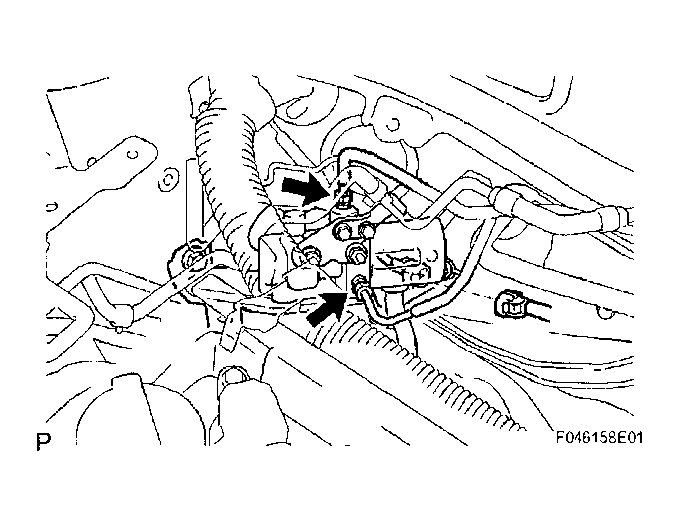

  Fig 1: Disconnecting Brake Tubes From Brake Simulator Cylinder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector.
3. Remove the 2 nuts, 2 bolts and brake stroke simulator cylinder with bracket.

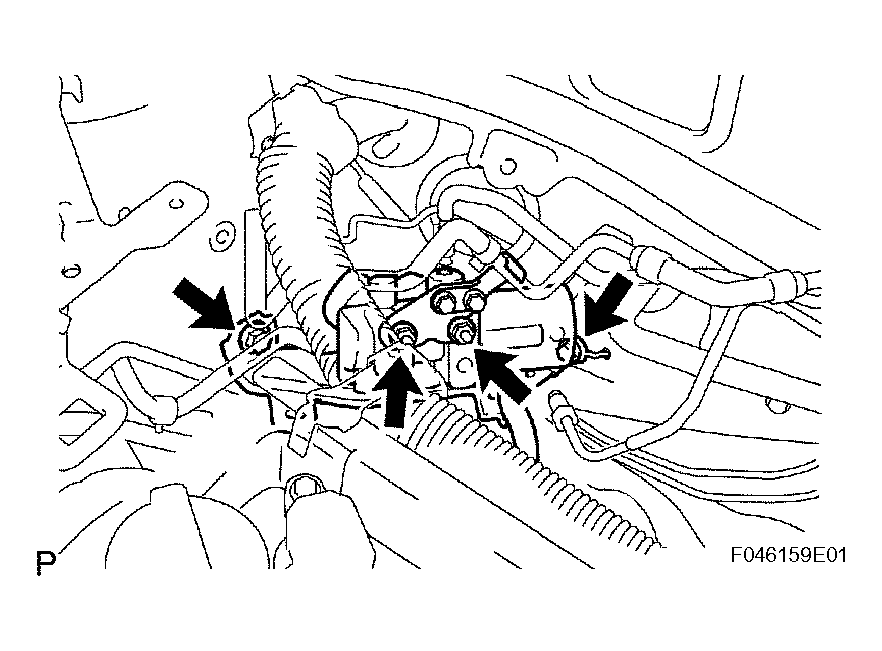

  Fig 2: Removing Brake Stroke Simulator Cylinder With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 bolts, connector clamp and bracket from the brake stroke simulator cylinder.
5. Remove the 2 stud bolts from the brake stroke simulator cylinder.

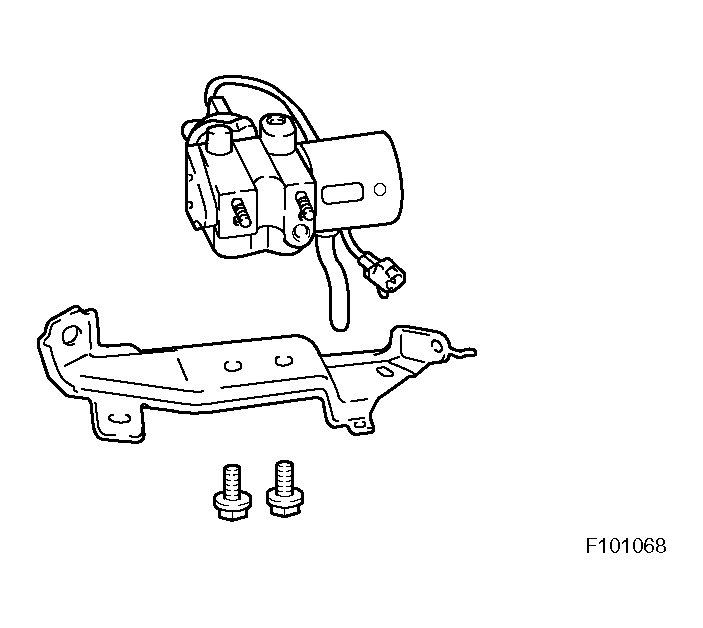

  Fig 3: Removing Connector Clamp And Bracket From Brake Stroke Simulator Cylinder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
