Rear Brake Shoe, Wheel Cylinder & Brake Drum: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY
   1. Aligning the matchmarks, install the rear brake drum.
2. ADJUST REAR DRUM BRAKE SHOE CLEARANCE
   1. Temporarily install 2 hub nuts.
   2. Remove the hole plug, and turn the adjuster to expand the shoe until the drum locks.

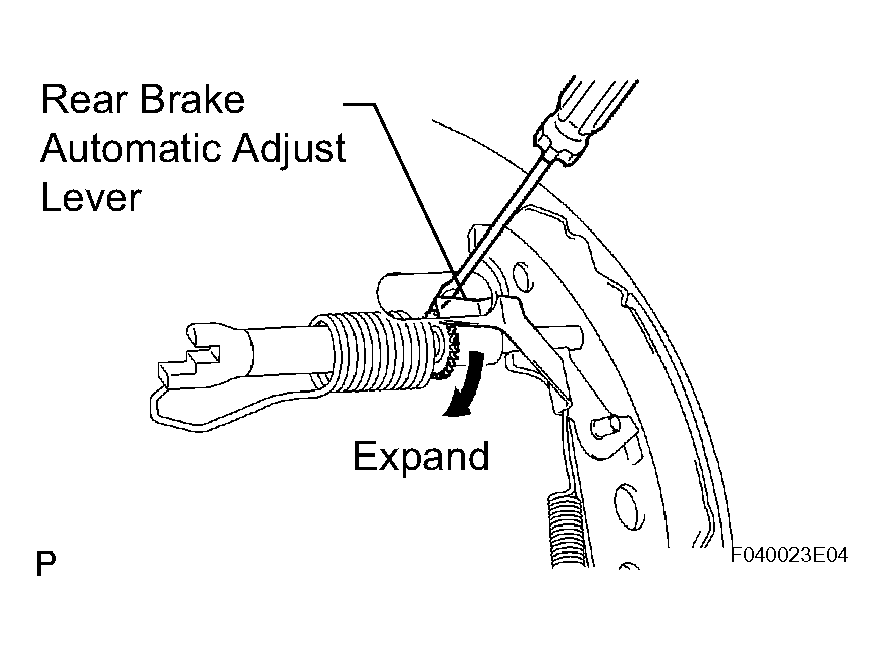

      Fig 1: Adjusting Rear Drum Brake Shoe Clearance

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Rotate the adjuster by 8 notches.
   4. Install the hole plug.
   5. Remove the 2 hub nuts.
3. FILL RESERVOIR WITH BRAKE FLUID (See  BRAKE PEDAL  )
4. BLEED AIR FROM FRONT AND REAR BRAKE SYSTEMS (See  BRAKE PEDAL  )
5. CHECK FOR BRAKE FLUID LEAKAGE
6. CHECK FLUID LEVEL IN RESERVOIR
7. INSTALL REAR WHEEL

   Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

8. CHECK PARKING BRAKE PEDAL TRAVEL (See  PROBLEM SYMPTOMS TABLE  )
9. ADJUST PARKING BRAKE PEDAL TRAVEL (See  ADJUSTMENT  )
10. CHECK AND CLEAR DTC
    1. Check and clear the DTC (see DTC CHECK / CLEAR ).
