Inspection Procedure

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration (see INITIALIZATION  ).
  1. INSPECT BRAKE ACTUATOR ASSEMBLY
    1. Disconnect the brake actuator connector.
    2. Measure the resistance of the actuator.

      HINT:

      Check the brake actuator when it is cooled down.

      Standard resistance

      STANDARD RESISTANCE REFERENCE CHART

      Tester Connection Specified Condition
      A2-20 (SMC1) - A2-7 (BS2) 14.6 to 24.6 Ω
      A2-6 (SMC2) - A2-19(BS1) 14.6 to 24.6 Ω
      A2-8 (FR+) - A2-5 (FR-) 3.5 to 4.3 Ω
      A2-22 (FR+) - A2-21 (FR-) 3.5 to 4.3 Ω
      A2-13 (FL+) - A2-14(FL-) 3.5 to 4.3 Ω
      A2-27 (FL+) - A2-28 (FL-) 3.5 to 4.3 Ω
      A2-12 (RR+) - A2-11 (RR-) 3.5 to 4.3 Ω
      A2-10 (RL+) - A2-9(RL-) 3.5 to 4.3 Ω
      Fig 1: Identifying Brake Actuator Connector Terminals
      G05189287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE BRAKE ACTUATOR ASSEMBLY

    OK: Go to Next Step

  2. CHECK SKID CONTROL ECU (VALVE VOLTAGE)

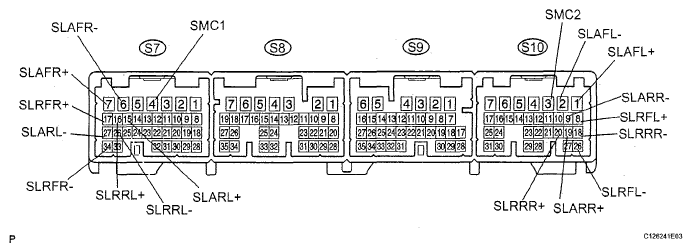

    Fig 2: Exploded View Of Transfer Assembly Components (4 Of 8)
    G05189288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage of the ECU connector.

      Standard voltage

      STANDARD VOLTAGE CHART

      Tester Connection Condition Specified Condition
      S7-4 (SMC1) - Body ground Power switch ON (READY)
      Brake pedal released
      Below 10 to 14 V
      S10-3 (SMC2) - Body ground Power switch ON (READY)
      Brake pedal released
      Below 10 to 14 V
      S7-7 (SLAFR+) - Body ground Power switch ON (READY)
      Brake pedal released
      Pulse generation*
      S7-6 (SLAFR-) - Body ground Power switch ON (READY)
      Brake pedal released
      Pulse generation*
      S10-1 (SLAFL+) - Body ground Power switch ON (READY)
      Brake pedal released
      Pulse generation*
      S10-2(SLAFL-) - Body ground Power switch ON (READY)
      Brake pedal released
      Pulse generation*
      S10-19(SLARR+) - Body ground Power switch ON (READY)
      Brake pedal released
      Pulse generation*
      S10-9(SLARR-) - Body ground Power switch ON (READY)
      Brake pedal released
      Pulse generation*
      S7-15(SLARL+) - Body ground Power switch ON (READY)
      Brake pedal released
      Pulse generation*
      S7-27 (SLARL-) - Body ground Power switch ON (READY)
      Brake pedal released
      Pulse generation*
      S7-17(SLRFR+) - Body ground Power switch ON (READY)
      Brake pedal released
      Below 1.5 V
      S10-8(SLRFL+) - Body ground Power switch ON (READY)
      Brake pedal released
      Below 1.5 V
      S10-20 (SLRRR+) -Body ground Power switch ON (READY)
      Brake pedal released
      Below 1.5 V
      S7-16(SLRRL+) - Body ground Power switch ON (READY)
      Brake pedal released
      Below 1.5 V
      S7-34 (SLRFR-) - Body ground Power switch ON (READY) Below 1.5 V
      S10-26(SLRFL-) - Body ground Power switch ON (READY)
      Brake pedal released
      Below 1.5 V
      S10-18(SLRRR-) - Body ground Power switch ON (READY)
      Brake pedal released
      Below 1.5 V
      S7-26 (SLRRL-) - Body ground Power switch ON (READY)
      Brake pedal released
      Below 1.5 V
      HINT:
      *: Refer to waveform 5 of "TERMINALS OF ECU " .

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: REPLACE SKID CONTROL ECU
