CORROSION PREVENTION & SOUND ABSORBING MEASURES - CRIB # 159

COLLISION REPAIR INFORMATION

Reference Number(s): L-CRIB-159, Date of Issue: December 01, 2007

LEXUS:	ALL TOYOTA, LEXUS, and SCION
SECTION:	EXTERIOR
COPYRIGHT:	© 2007 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

SERVICE INFORMATION

To assure repairs and replacement components meet strict factory standards, all corrosion preventive coatings and sound absorbing materials must be replicated to match OE application and purpose. In addition, the use of weld thru primer is strongly recommended during welding operations.

If the following materials are not restored to OE like-kind and quality, road noise may be amplified, and the Toyota new car corrosion warranty may be voided on the affected components, and adjoining parts and systems which are caused to fail or rust by those components. Refer to CPS-Toyota/Scion Policy 4.17 and CPS Lexus Policy 4.15 for details on what is not covered by the new vehicle limited warranty.

Seam Sealer
Cavity Wax
ED Primer
Undercoating
Frame Finish Coatings
Chip Resistant Coatings
Sound Absorbing Materials

Please refer to model-specific Collision Damage Repair Manuals (www.techinfo.toyota.com ) for specifications, illustrations, instructions, and locations of these coatings.

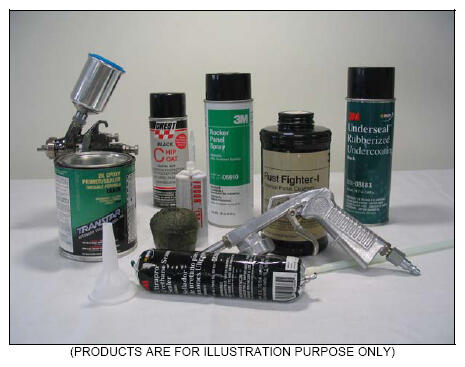

(PRODUCTS ARE FOR ILLUSTRATION PURPOSE ONLY)

PLEASE ROUTE THIS BULLETIN TO YOUR COLLISION REPAIR CENTER MANAGER AND COLLISION REPAIR TECHNICIANS
