Instrument Panel Safety Pad: Installation

  1. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY
  2. INSTALL NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY
  3. INSTALL INSTRUMENT PANEL TO FLOOR BRACE SUB-ASSEMBLY
  4. INSTALL GLOVE COMPARTMENT DOOR DAMPER
  5. INSTALL NO. 4 HEATER TO REGISTER DUCT
  6. INSTALL NO. 3 HEATER TO REGISTER DUCT
  7. INSTALL ECM
  8. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    HINT:

    • Install the airbag connector between the No. 5 heater to register duct and the center bracket temporarily, and then install the instrument panel.
    • Remove the airbag connector before installing the No. 2 lower panel.
    1. Install the 6 bolts, 2 nuts and instrument panel, then connect the connectors.
    2. Install the 2 bolts to the front passenger airbag assembly.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    3. Connect the junction connectors.

      HINT:

      The connectors can be connected by tightening the bolts.

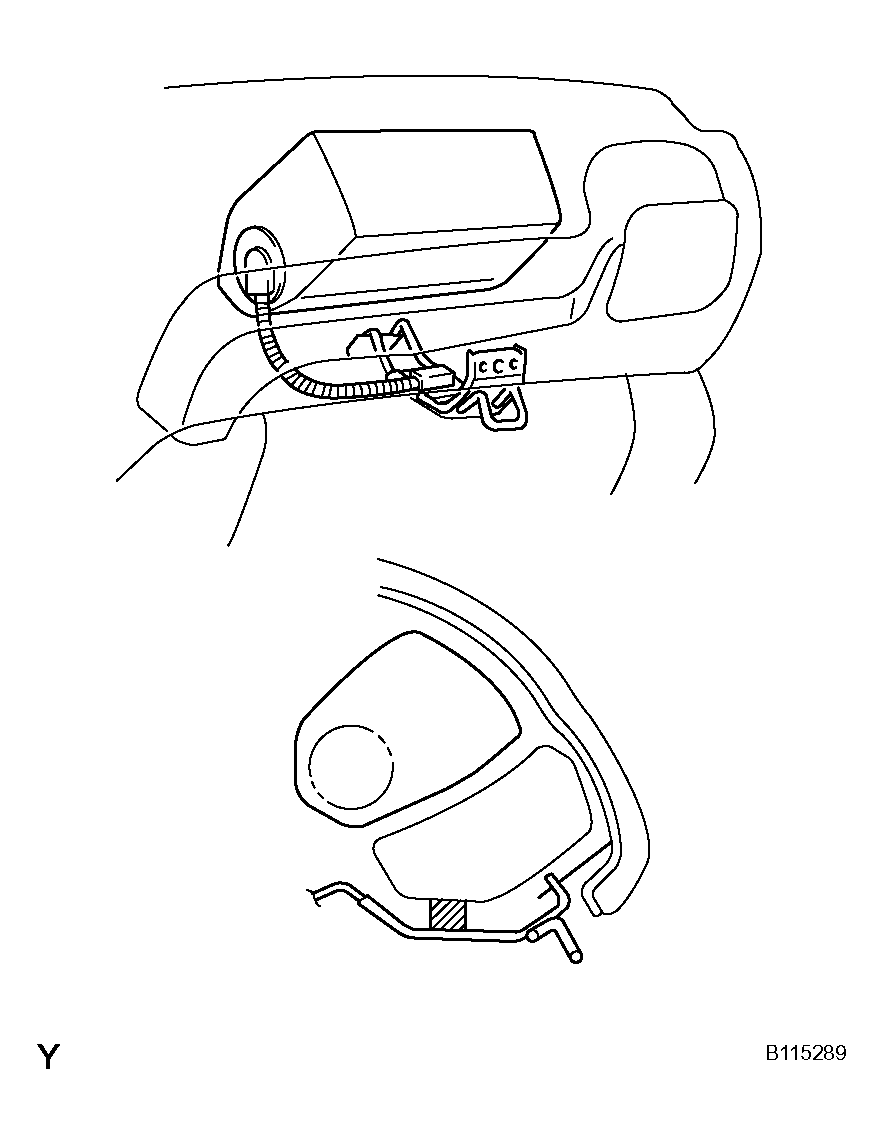

      Fig 1: Installing Instrument Panel Safety Pad Sub-Assembly
      G04438782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT CONSOLE BOX
    1. Install the console box and No. 4 console box mounting bracket with the 2 bolts.

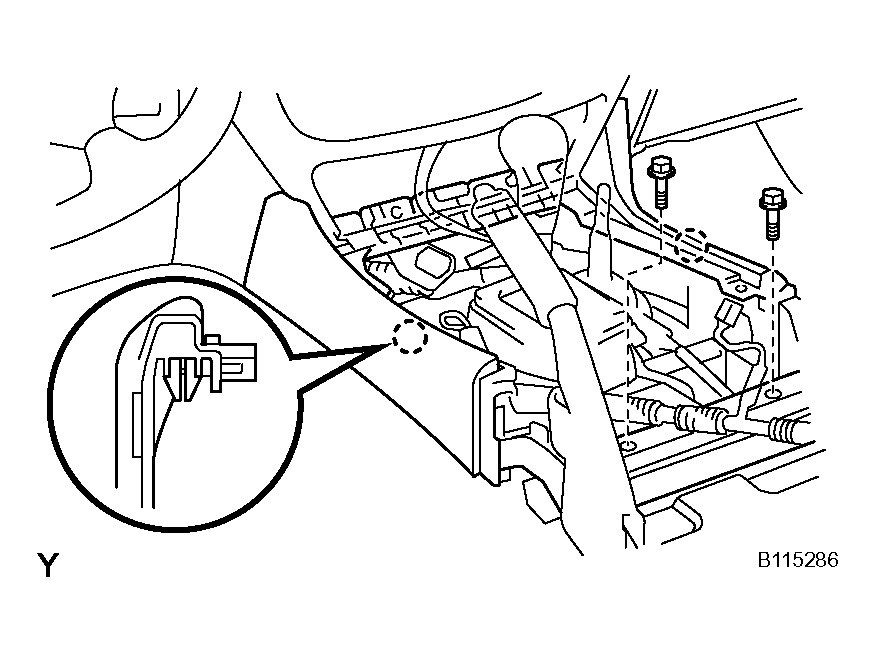

    Fig 2: Installing Front Console Box
    G04438783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL FRONT ASH RECEPTACLE RETAINER
    1. Install the ash receptacle retainer with the 2 screws.
    2. Install the ash receptacle box.
  11. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER
    1. Connect the connectors.
    2. Attach the 5 clips to install the finish panel.
      Fig 3: Installing Finish Panel
      G04438784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY (w/o Disc Player Changer)
    1. Install the console box with the 4 bolts and the 4 screws.

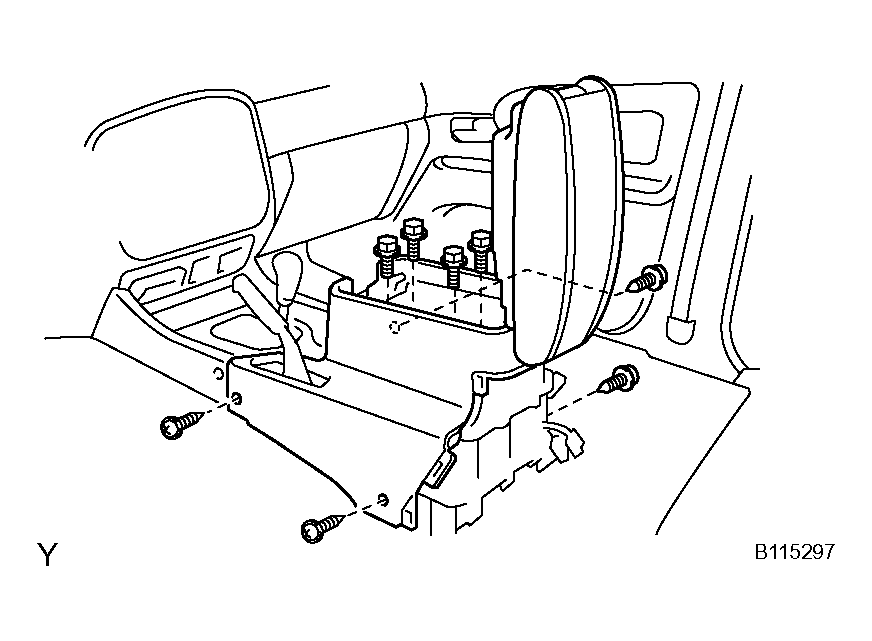

      Fig 4: Installing Rear Console Box (Without Disc Player Changer)
      G04438785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY (w/ Disc Player Changer)
    1. Install the console box with the 2 bolts and the 6 screws.

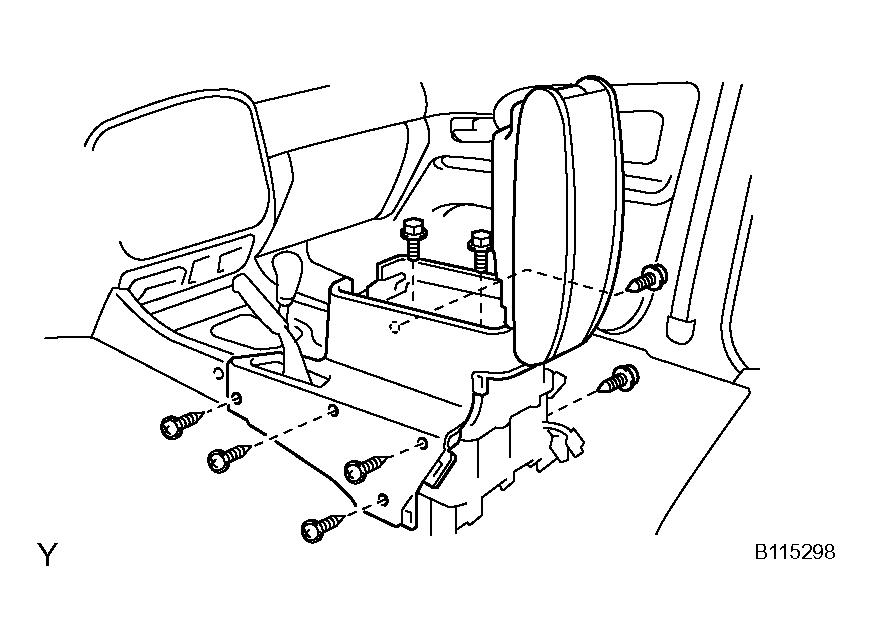

    Fig 5: Installing Rear Console Box (With Disc Player Changer)
    G04438786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL RADIO RECEIVER CONTROL PANEL
    1. Install the rear radio control panel with the 3 screws, and connect the connector.
  15. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY
    1. Attach the 2 clips to install the end panel.
    2. Install the 2 screws.
    3. Install the console cup holder box.
    Fig 6: Installing Rear Console End Panel Sub-Assembly
    G04438787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Install the upper console panel, and then install the transfer shift lever knob.
  17. INSTALL INSTRUMENT PANEL FINISH PANEL LH LOWER
    1. Install the finish panel with the 3 screws.
  18. CONNECT AIRBAG CONNECTOR

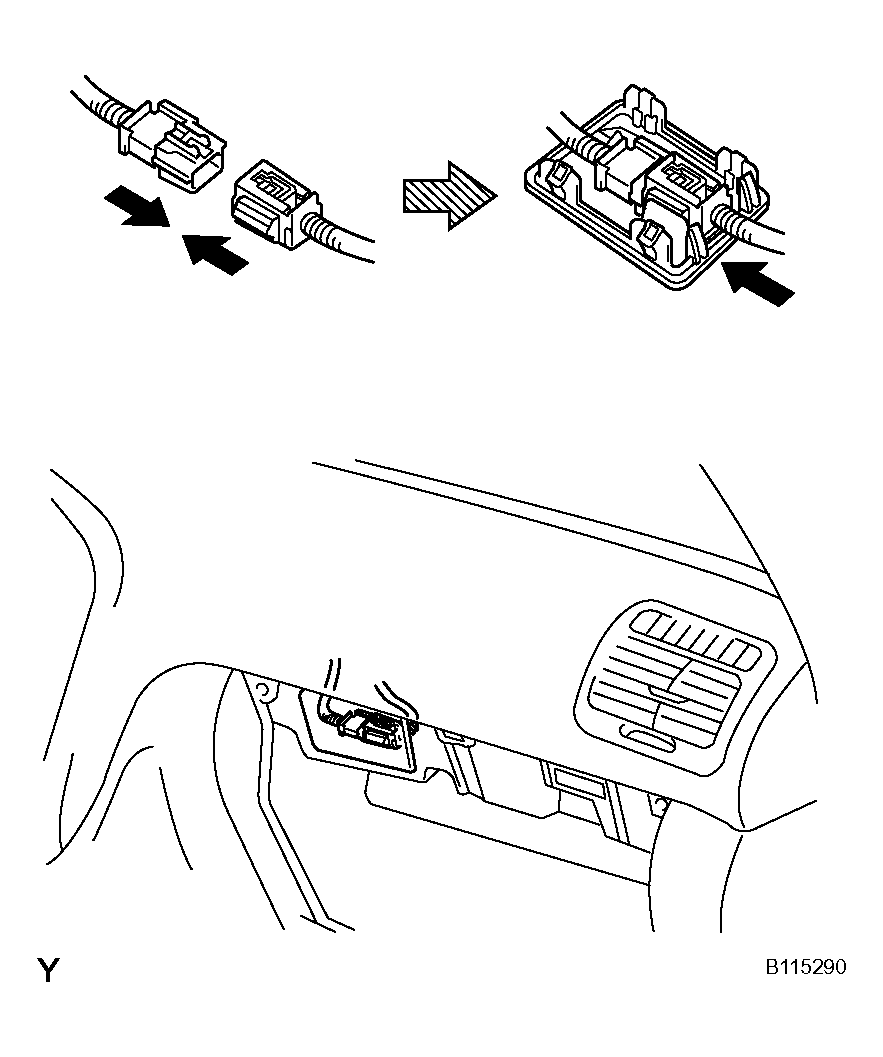

    Fig 7: Connecting Airbag Connector
    G04438788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
    1. Install the glove compartment door, and then connect the glove compartment door damper clip.
    2. Install the 2 screws.
      Fig 8: Installing Glove Compartment Door
      G04438789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL COMBINATION METER
    1. Check that the set-in connectors are connected in the installation holes on the instrument panel securely.
    2. Place the combination meter on the instrument panel.
    3. Install the combination meter by tightening the screws.

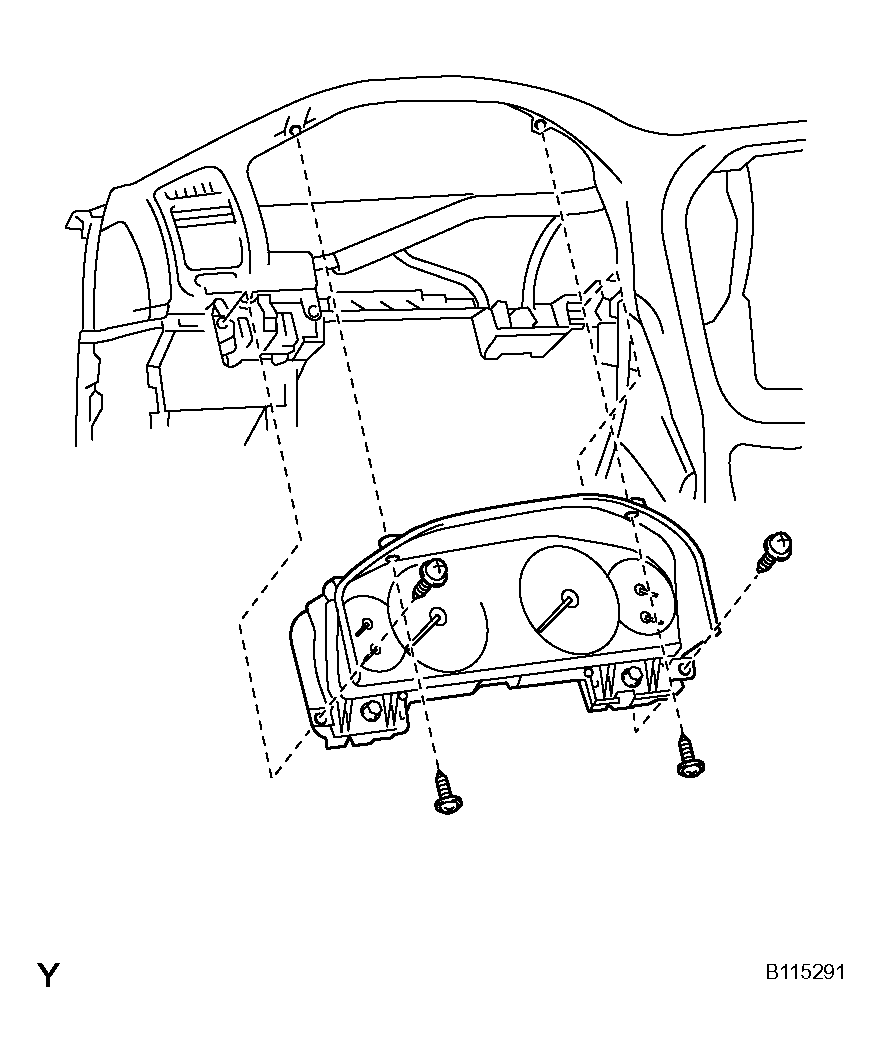

      Fig 9: Installing Combination Meter
      G04438790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the connection bolts.

      HINT:

      • When the connection is completed, the bolts should turn vainly, causing a turning noise.
      • Check that the connection check pins protrude from the lower side of the connection bolts.
      NOTE: Follow the procedures in the correct order. Otherwise, the set in connectors on the wire harness side and on the meter side might not be connected properly.

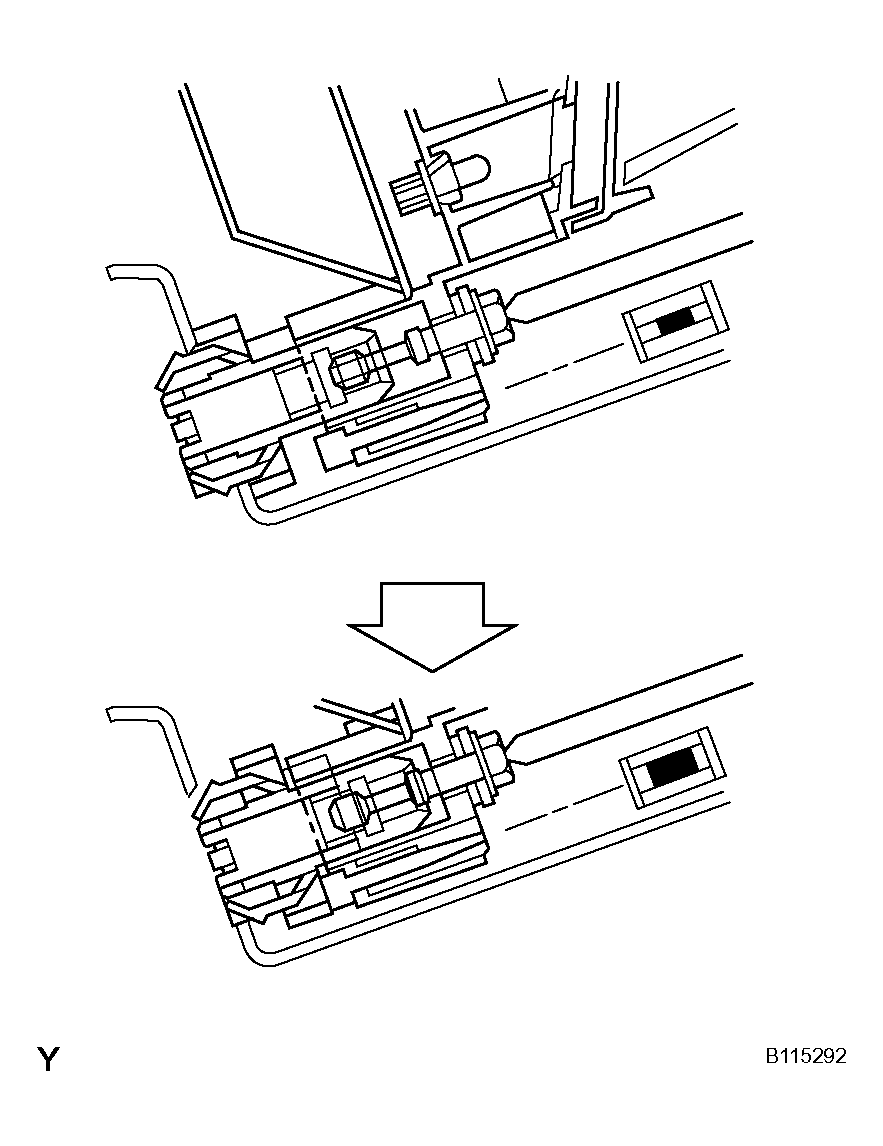

      Fig 10: Tightening Connection Bolts
      G04438791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the No. 2 heater to register duct with the screw.
    2. Install the No. 1 transceiver finish plate assembly with the screw, and connect the connector.
      Fig 11: Installing No. 2 Heater To Register Duct
      G04438792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL COMBINATION SWITCH ASSEMBLY
    1. Install the combination switch with the 4 screws.
    2. Install the clamp and connect the connectors.

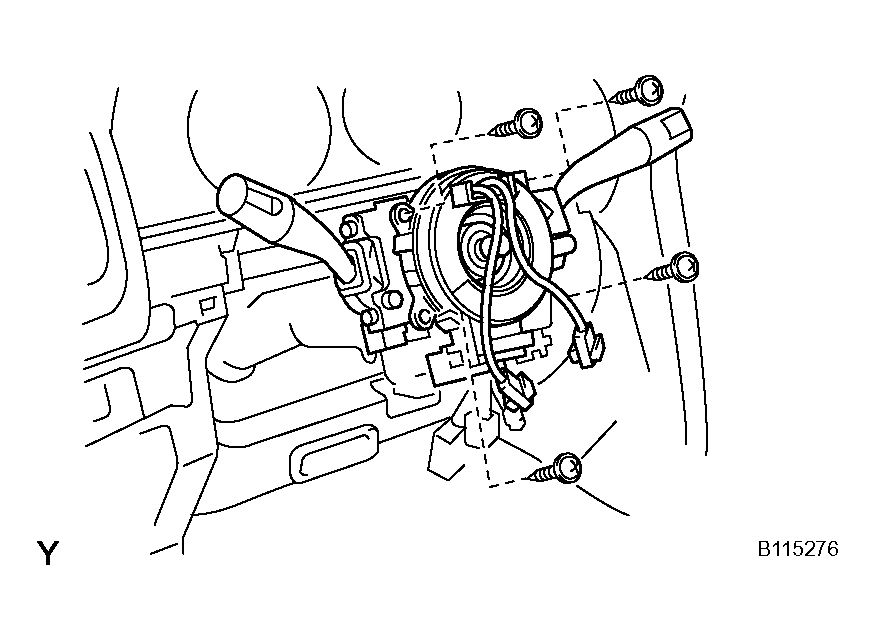

    Fig 12: Installing Combination Switch
    G04438793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL STEERING COLUMN COVER
    1. Install the column covers with the 3 screws.
  24. INSTALL LH LOWER PANEL
    1. Install the LH lower panel with the 3 bolts.
  25. INSTALL NO. 1 LOWER PANEL
    1. Connect the connectors.
    2. Attach the 5 clips to install the No. 1 lower panel with the screw.

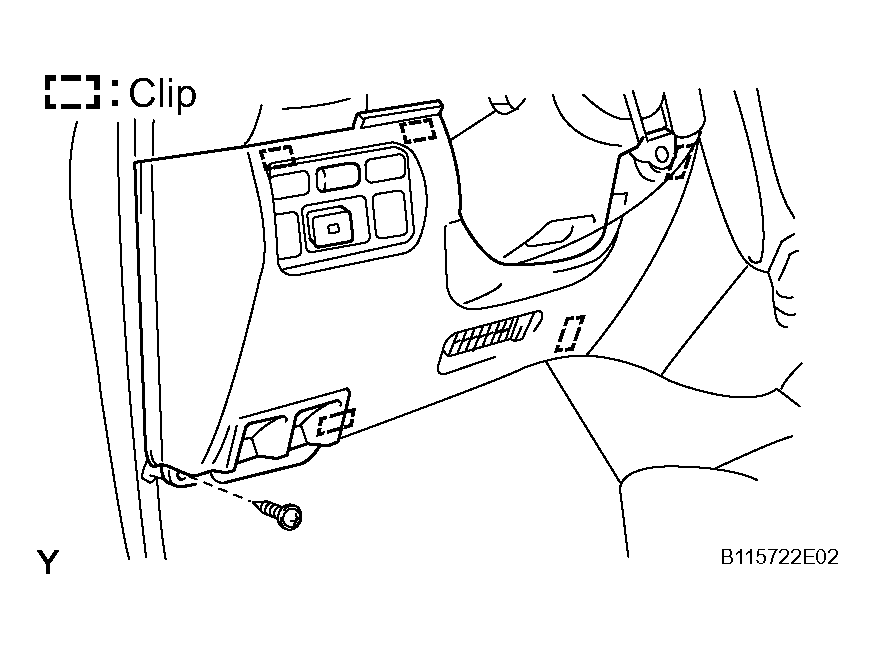

    Fig 13: Installing Lower Panel
    G04438794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL FUEL LID OPEN LEVER SUB-ASSEMBLY
    1. Install the control cable lever with the 2 screws.
  27. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Install the control cable with the 2 screws.
  28. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 2 clips to install the finish panel.

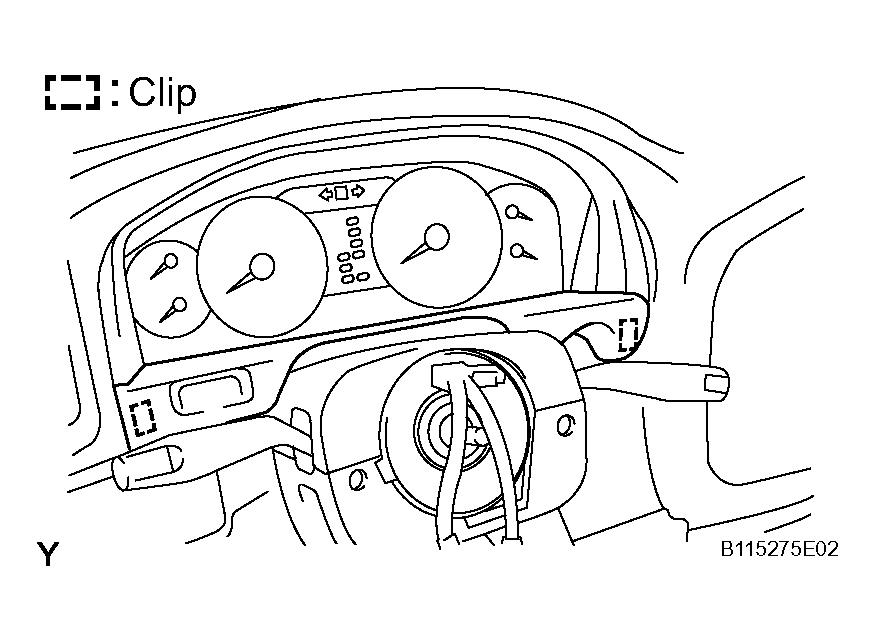

    Fig 14: Installing Instrument Cluster Finish Panel Sub-Assembly
    G04438795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL STEERING WHEEL ASSEMBLY (See  INSTALLATION  )
  30. INSTALL STEERING PAD ASSEMBLY (See  INSTALLATION  )
  31. INSTALL FRONT PILLAR GARNISH RH
    1. Install the garnish.
    2. Install the assist grip with the 2 screws and then install the 2 assist grip plugs.
    Fig 15: Installing Front Pillar Garnish RH
    G04438796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL FRONT PILLAR GARNISH LH

    HINT:

    Use the same procedures described for the RH side.

  33. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  34. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  35. INSTALL COWL SIDE TRIM BOARD RH
  36. INSTALL COWL SIDE TRIM BOARD LH
  37. INSTALL FRONT DOOR SCUFF PLATE LH
  38. INSTALL FRONT DOOR SCUFF PLATE RH
  39. INSTALL RADIO WITH AIR CONDITIONING CONTROL ASSEMBLY
    1. Install the radio with air conditioning control with the 4 bolts.

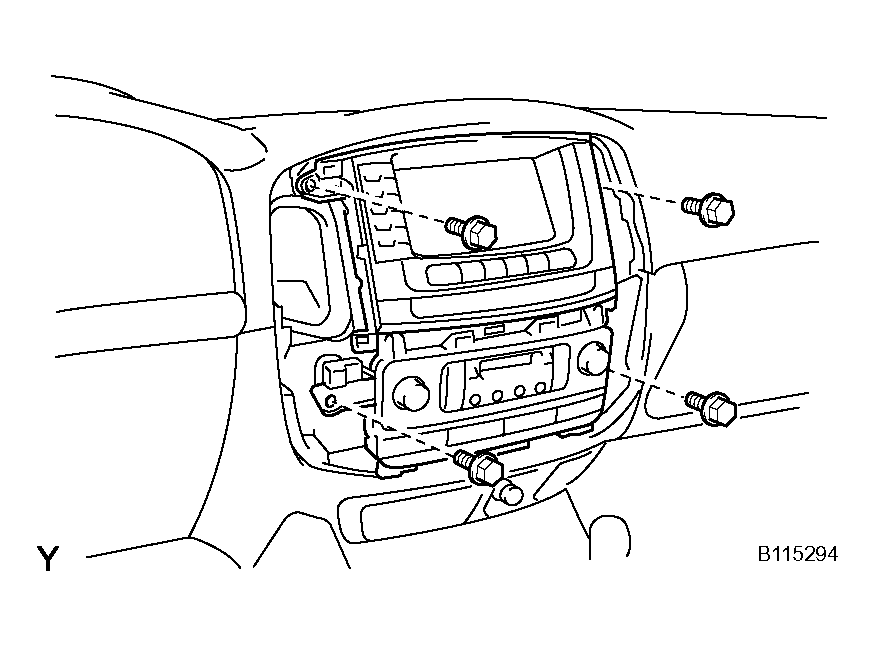

      Fig 16: Installing Radio With Air Conditioning Control
      G04438797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Attach the 3 clips to install the register.
  41. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Attach the 3 clips to install the register.
  42. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  43. PERFORM INITIALIZATION
    1. Perform INITIALIZATION .
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  44. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see AIRBAG SYSTEM ).
