Rear Strut Rod: Components

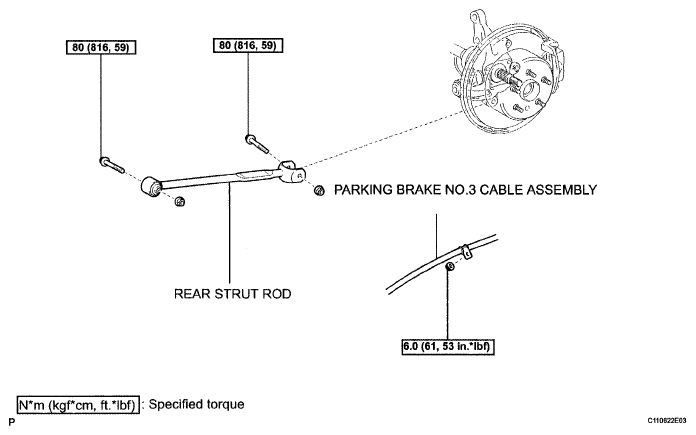

Fig 1: Identifying Rear Strut Rod Replacement Components With Torque Specifications
G05202561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
