Rear Shock Absorber: Components

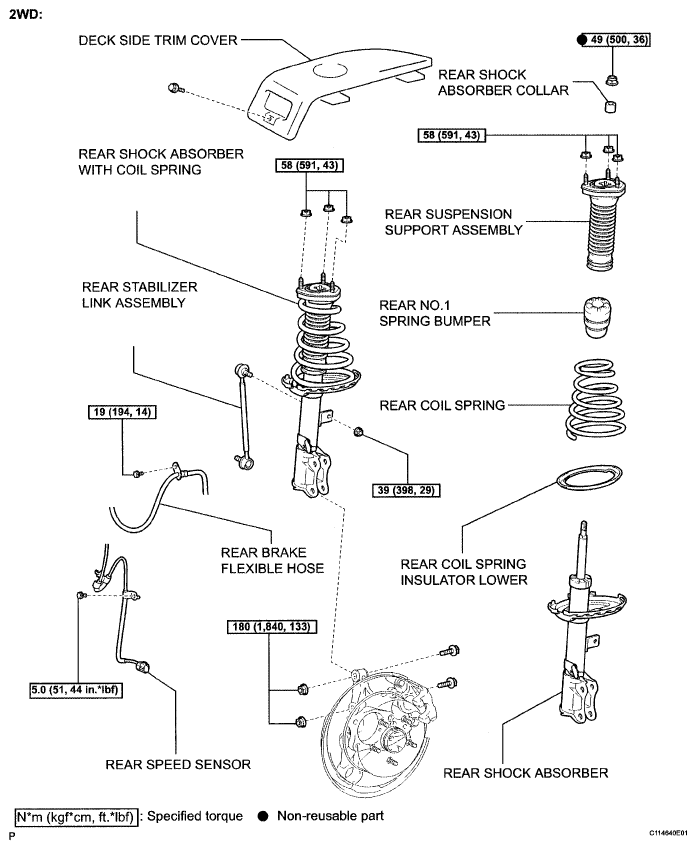

Fig 1: Identifying Rear Shock Absorber Replacement Components With Torque Specifications (2WD)
G05202536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

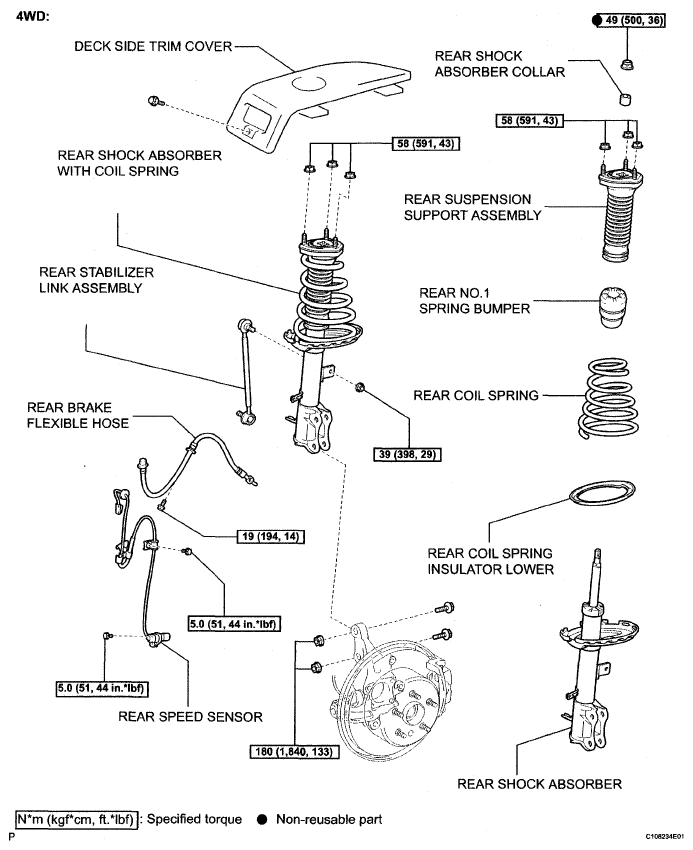

Fig 2: Identifying Rear Shock Absorber Replacement Components With Torque Specifications (4WD)
G05202537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
