REAR NO. 2 SUSPENSION ARM (for 2WD): Components

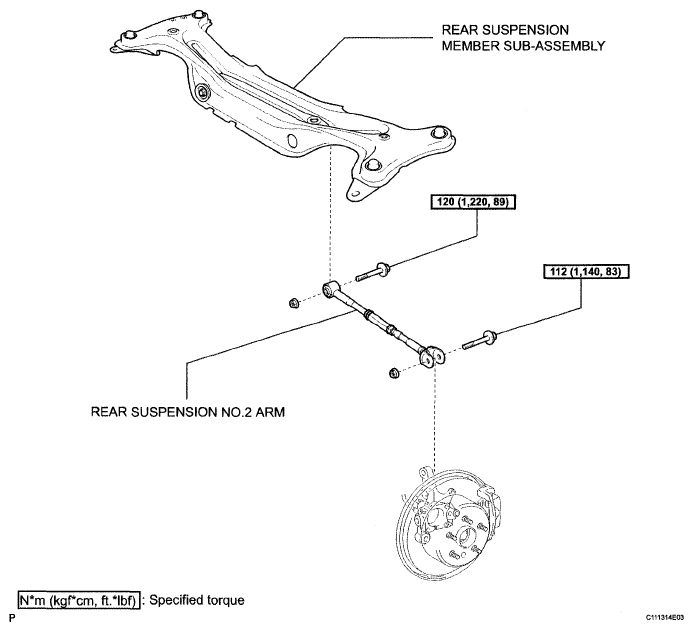

Fig 1: Identifying Rear Suspension No. 2 Arm (For 2WD) Replacement Components With Torque Specifications

G05202587

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
